0.5ml wall thickness pure nickel seamless precision capillary

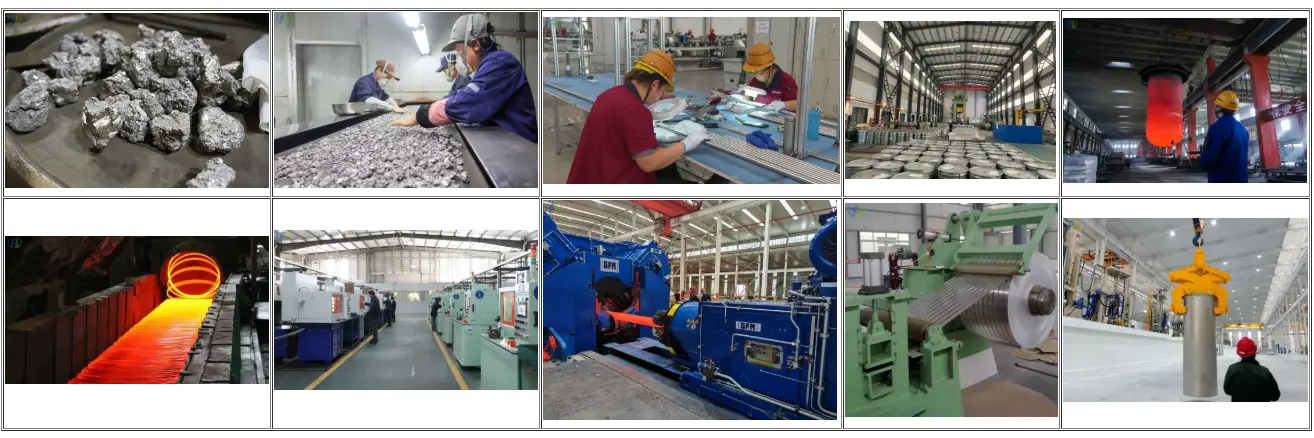

Pure nickel pipe is a seamless or welded pipe made from high-purity nickel (Ni≥99.5%) as raw material through vacuum melting, extrusion, cold drawing/cold rolling, heat treatment and precision machining. The core grades are N4 (N02201) and N6 (N02200), corresponding to the American standard UNS N02201/N02200, and complying with standards such as GB/T 2882 and ASTM B161

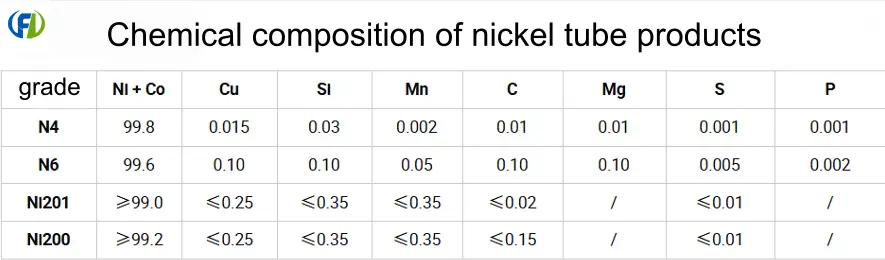

Chemical composition of nickel tube products：

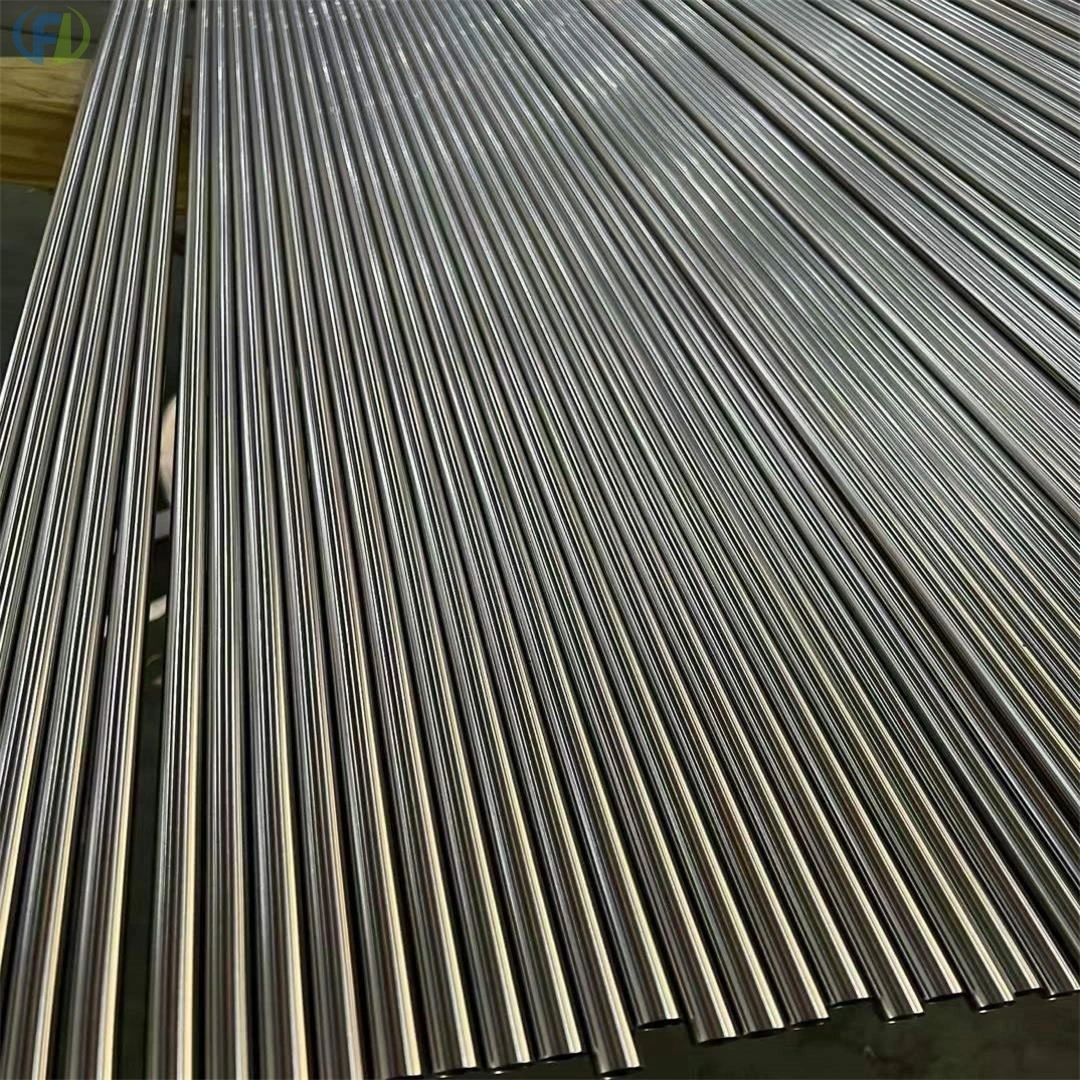

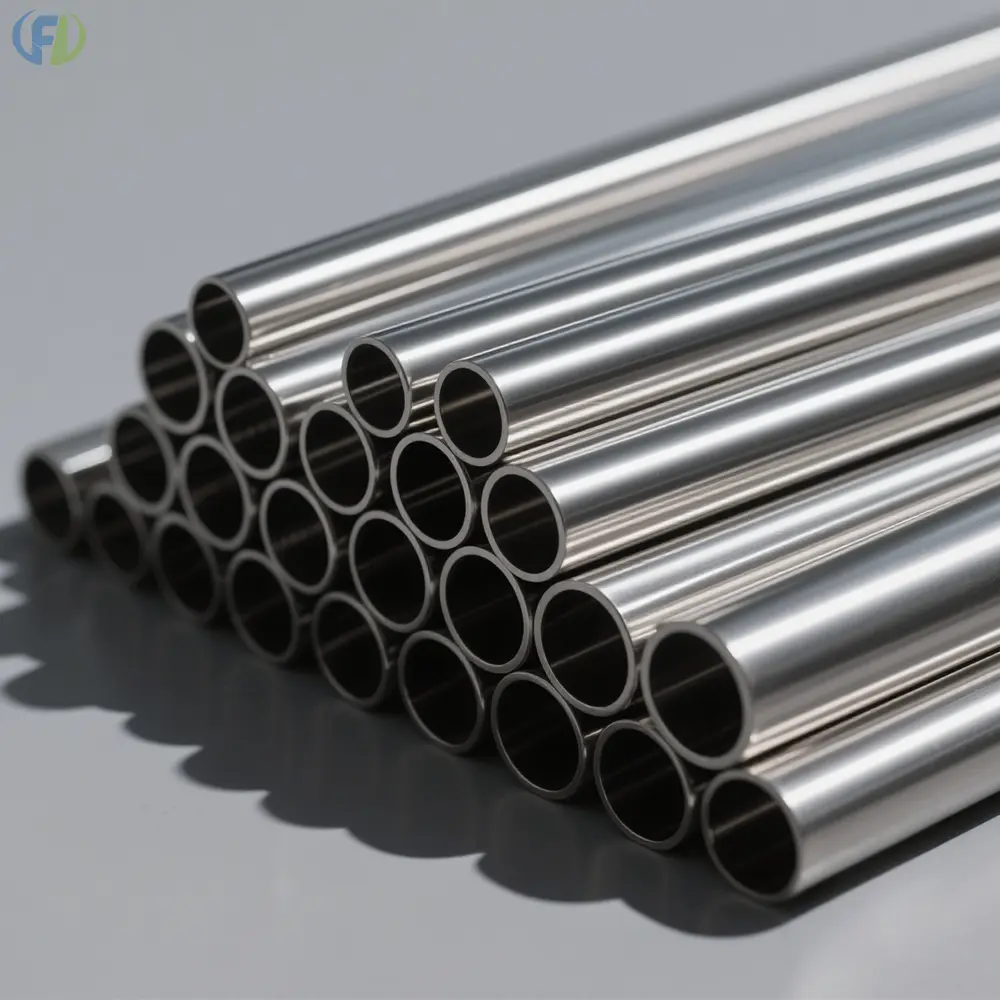

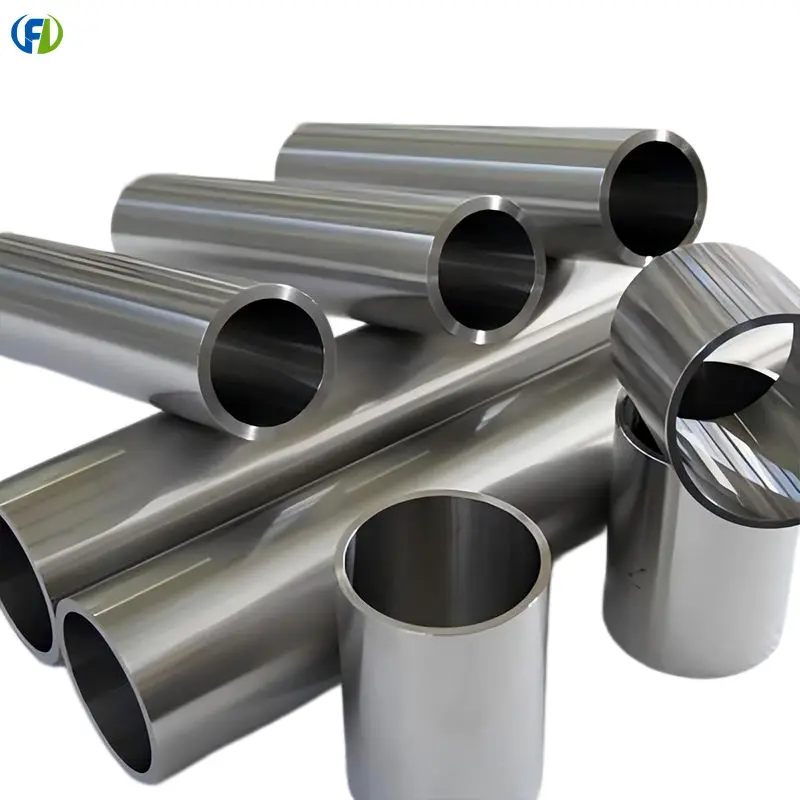

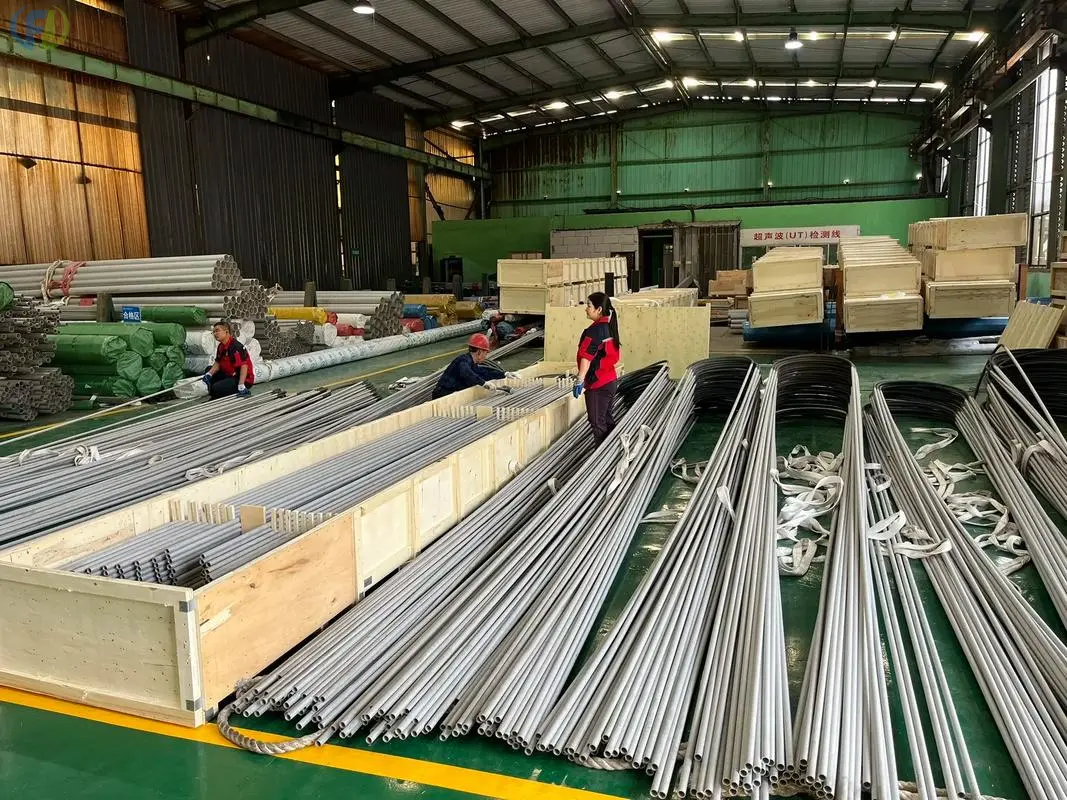

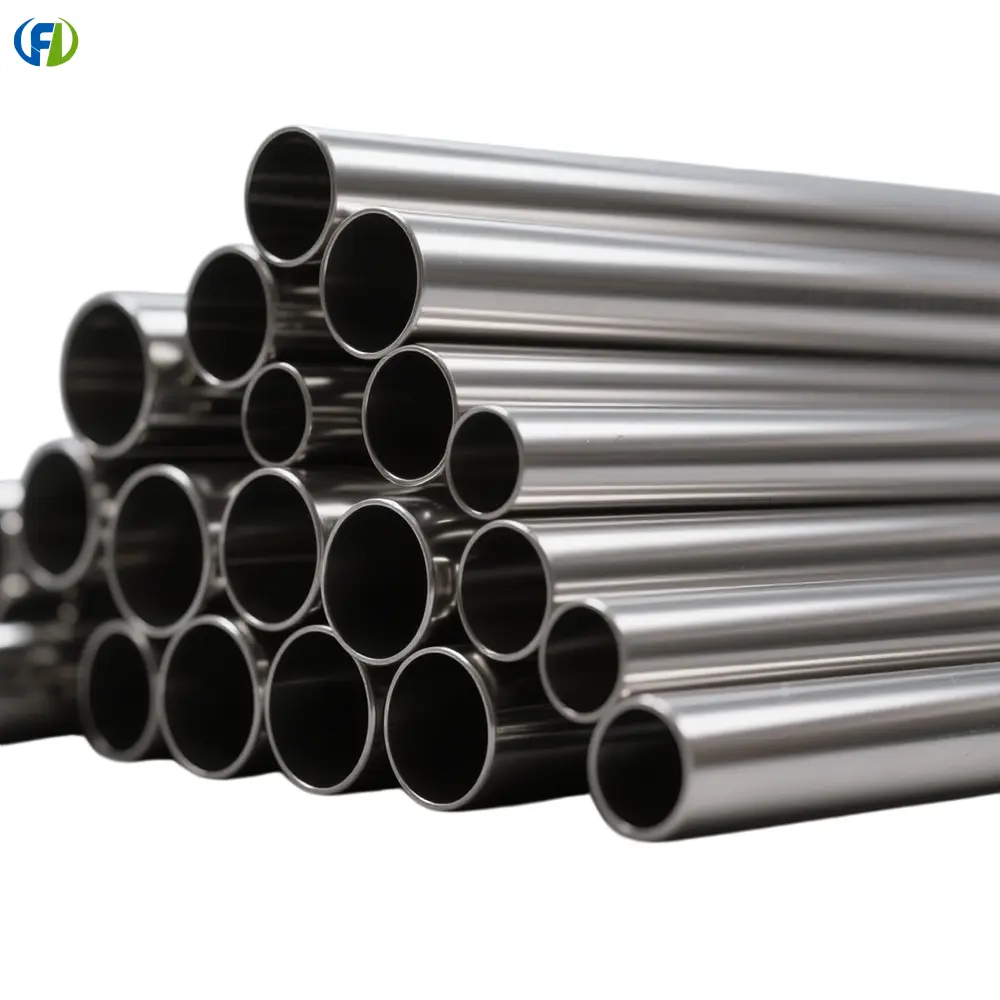

Product Showcase：

Specifications (Common):

Outer Diameter: 0.35–219 mm; Wall Thickness: 0.05–10 mm; Length: 100–8000 mm (customizable).

State: Soft (M), Hard (Y); Surface: Pickled, High-gloss polished.

Core Application Areas:
Chemical/Chlor-alkali Industry (Most Mainstream): Conveying 32%+ caustic soda solution, molten alkali (400℃+), hydrochloric acid, hydrofluoric acid, chlorine, and other highly corrosive media.
Alkali evaporators, molten salt heat exchangers, organochloride reactors/pipelines.

Nuclear Power/Energy: Nuclear power plant boric acid systems, nuclear fuel processing equipment, reactor coolant piping (radiation resistant + corrosion resistant).

High-temperature halogen environment heat exchange pipes, hydrogen storage/transport/electrolyzer piping (high-purity, non-polluting media).

Electronics/Semiconductors/New Energy
Battery (NiMH/Li-ion) electrolyte delivery pipes, electrodes/current collectors, high-temperature resistant components for cathode material sintering furnaces.

Semiconductor ultra-high purity gas (Ar/NH3) delivery pipes, MOCVD equipment components (no metal ion precipitation).

Thermocouple sheaths, precision tubing for resistors/electronic components.

Aerospace
Engine fuel/hydraulic lines, high-temperature sensor sheaths, spacecraft thermal control heat dissipation pipes (high thermal conductivity + lightweight).

Marine Engineering/Seawater Desalination
Seawater desalination unit heat exchange pipes, submarine cable protection pipes, marine seawater-resistant pipelines (resistant to Cl⁻ pitting corrosion).

Food/Pharmaceutical
High-purity material transportation, sterile pipelines (non-toxic, easy to clean, no heavy metal precipitation).

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects

​​​​​​​

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!

Contact Us

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
