ASTM F2063 Nitinol Wire

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Size: 0.05mm - 7.0mm
MOQ: 0.5 kg
Samples: We can provide free samples in advance for your test
AF: -30℃ - +90℃
Express: Fedex, TNT, DHL and EMS shipping

Send Inquiry

Download

Product Description

ASTM F2063 Nitinol Medical wire Applications

Guide Wire

Braided Stent

Supwelastic nitinol wire for guide wire

Excellent straightness

Allows 1:1 torqueability

Superlastic nitinol wire for braiding

Great biocompatibility

Provides customization

Dental File

Nitionl Shapesetting

Superelastic nitinol wire for dental files

to ensure a great flexibility and long fatigue life

Provides customized shapesetting of compone

nts from nitinol wires,tube and sheets.

Typical producs include superelastic springs

thermo-mechanial springs, superelastic clip ring

superelastic spring plates and discec

ASTM F2063 Nitinol wire size, surface and shape

Diameter	Tolerance	Surface	Shape
4.00-2.00mm	± 0.020mm	Black Light Oxide Polished Pickling Cleaned	Round Square Flat Rope
2.00-1.00mm	± 0.015mm
1.00-0.35mm	± 0.010mm
0.35-0.26mm	± 0.007mm
0.26-0.15mm	± 0.005mm
0.15-0.05mm	± 0.004mm

The real active AF temperature may very with actual composition and thermo-mechanical history of the product.

Alloy Code	A	B	S	C	D	E	J	K	L
Active A, after heat treatment, ℃	70±10	30±10	25±5	17±7	10±10	5±10	-30±10	30±10	-20±10

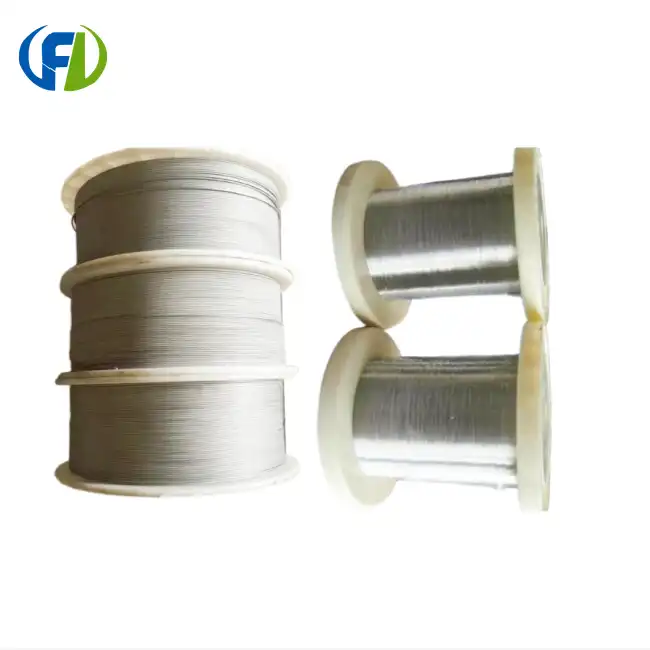

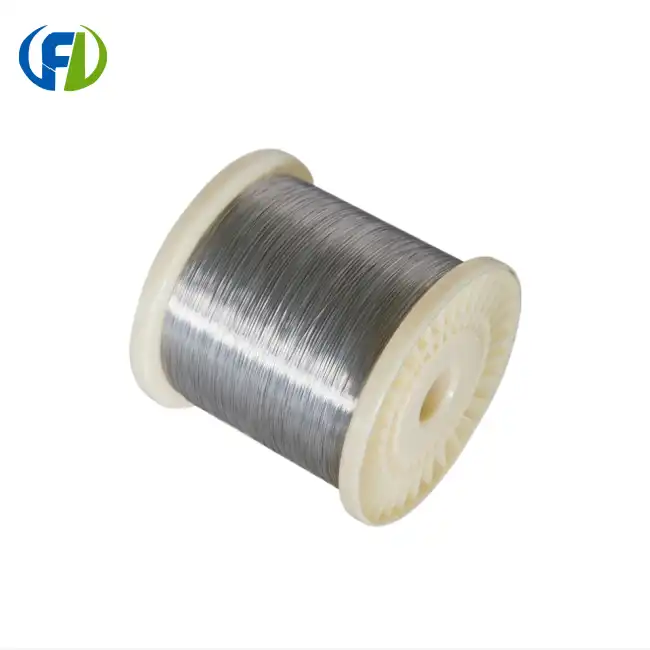

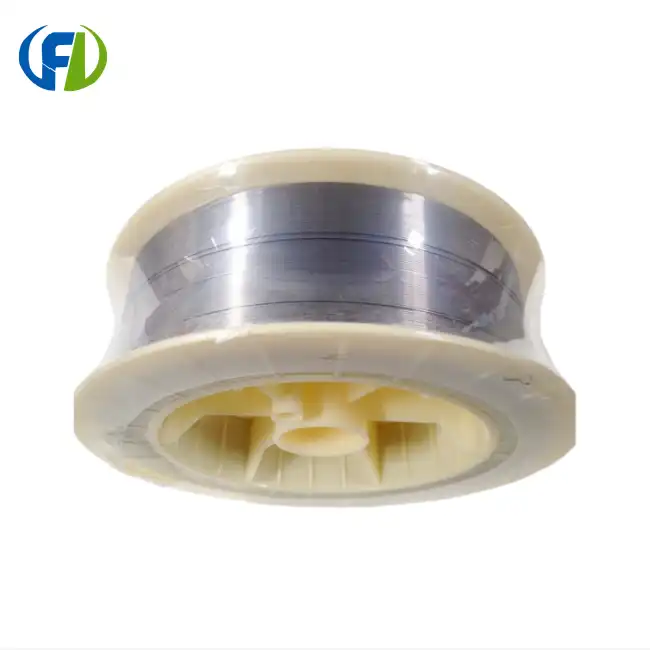

ASTM F2063 Nitinol Wire picture display

Typical Alloy Features Applications

The table below lists the transition temperatures and mechanical characteristics for typical grades of nitinol:

Important information on ordinary Nitinol wire,

Alloy code	Straightened super-elastic(SE)
Alloy code	UTS MPa	Elongation %	Upper Plateau stress MPa	Permanent set after 6% strain %	Active Af ℃
D	≥1300	≥10	≥480	＜0.5	0 ~ +20
C	≥1150	≥10	≥440	＜0.5	+10 ~ +24
S	≥1000	≥10	≥400	＜0.5	+20 ~ +30

* All Mechanical Testing Conducted at 22°C+/-2°C per ASTM F2516-14
