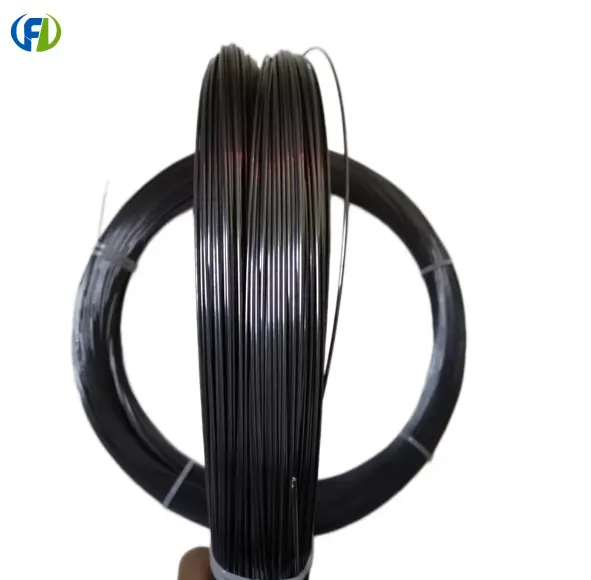

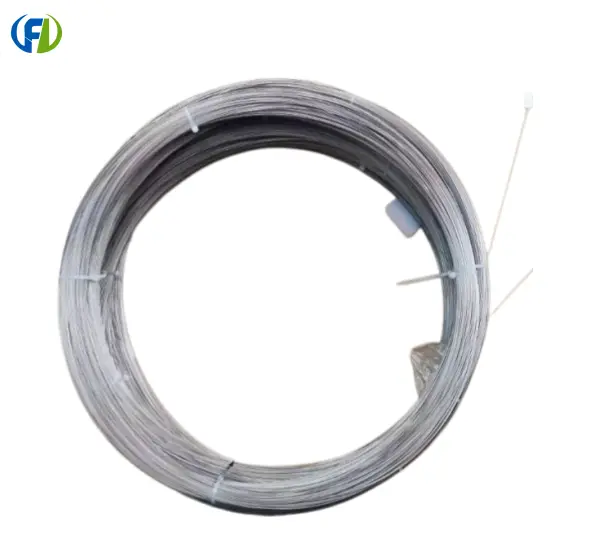

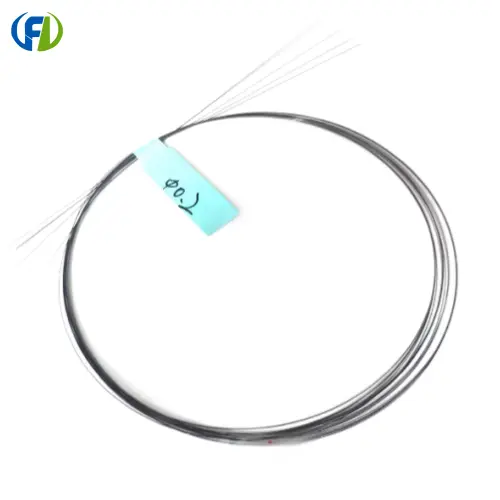

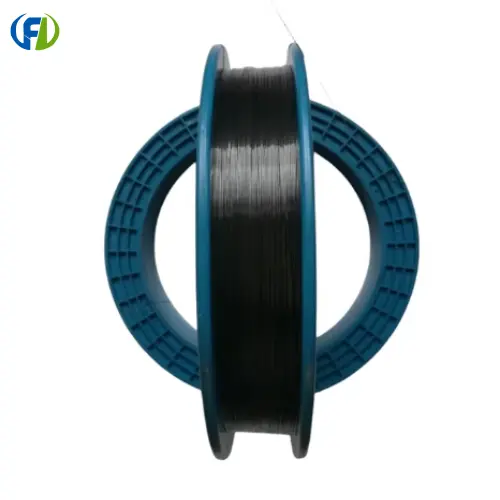

Nickel-titanium alloy memory wire

Nickel-titanium shape memory alloy wire, also known as nickel-titanium wire, memory wire, or superelastic wire, is a functional alloy with nickel (Ni) and titanium (Ti) as its main components. Its core characteristics are shape memory effect and superelasticity. It is currently the most mature and widely used smart alloy wire.

I. Product Introduction

1. Basic Information
Main Components: Nickel approx. 50-51wt%, Titanium approx. 49-50wt%
Common Grades: NiTi-01, NiTi-02, ASTM F2063 (Medical)
Phase Transformation Temperature (Af):
Superelastic Wire: -20℃～+10℃
Shape Memory Wire: +30℃～+90℃
Supply Status: Cold-drawn wire, soft-annealed wire, age-hardened wire
Surface Treatment: Pickling, polishing, black oxide, medical polishing

2. Core Performance
Shape Memory Effect
Can be deformed arbitrarily at low temperatures, and automatically recovers its original shape after being heated to the phase transformation temperature.

Superelastic (Pseudoelastic): Can be stretched/bent at room temperature by **4%～10%**, immediately rebounding after the external force is removed, without permanent deformation.

Other Properties: Corrosion resistance superior to stainless steel; Good biocompatibility (implantable in the human body); High damping, wear-resistant, fatigue-resistant; Stable resistivity, suitable for temperature control elements.

​​​​​​​

II. Main Classifications:
Superelastic Nickel-Titanium Wire (Most Commonly Used): Excellent elasticity at room temperature, used in eyeglass frames, orthodontic wires, catheters, fishing nets, etc.

Shape Memory Nickel-Titanium Wire: Deforms/resets with temperature, used in temperature control switches, fire-fighting devices, automatic actuators.

Medical Grade Nickel-Titanium Wire: Highly clean, non-magnetic, highly polished, used in stents, guidewires, orthopedic instruments, etc. III. Typical Application Areas

1. Medical Devices (Largest Application Market)
Vascular stents, esophageal stents, biliary stents
Interventional guidewires, microcatheters, snares
Orthopedic orthopedic wires, spinal braces
Orthopedic archwires, dental archwires, arch expanders
Surgical forceps, hemostatic clips, suture anchors

2. Consumer Goods and Daily Necessities
Eyeglass frame wires (super elastic temples)
Bra memory wires
Underwear shoulder straps, abdominal binder elastic components
High-end fishing gear, fishing net shaping wires
Massagers, smart wearable elastic components

3. Industrial and Intelligent Control
Temperature control switches, thermal actuators
Automatic ventilation, fire-fighting thermal sensitive devices
Mechanical vibration damping, damping elements
Connectors, buckles, self-locking structures
Aerospace micro-actuators

4. Automotive and Electronics
Automotive temperature control actuators, antennas
Electronic connectors, anti-loosening buckles
Vibration buffers, noise reduction components
Miniature sensors, flexible electrodes

5. Other Special Applications
Smart Fabrics, Smart Wearables
Robot Flexible Joints
Deep-Sea Equipment Reset Structures
Building Vibration Damping, Dampers
IV. Simple Comparison
Lighter than Stainless Steel: Density 6.45 vs 7.9
Larger Elasticity than Spring Steel: Can Rebound After Large Deformation
Better Corrosion Resistance: Suitable for Seawater, Human Body, and Chemical Environments
Unique Function: Combines "Memory + Super Elasticity," Irreplaceable by Ordinary Alloys

Quality Control and Testing

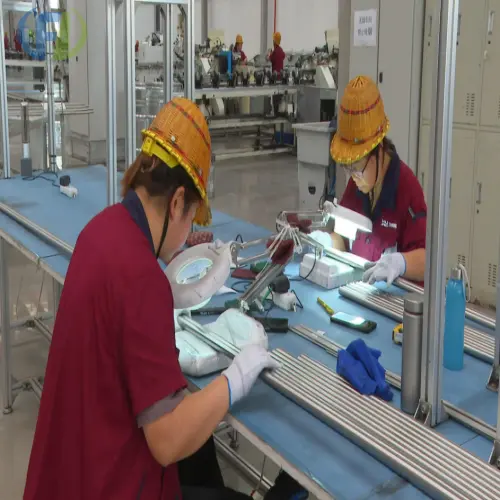

Each product undergoes rigorous inspection before shipment:

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!

Contact Us

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
