tantalum plate

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 16.6g/cm3
Purity: 99.95%, 99.99%
Thickness: 0.1~80mm,Width 20~600mm
Length: 50~3000mm
Grade: RO5200,RO5252,RO5255
Standard: ASTM B708
Certification: ISO9001
Shipping: Fedex, TNT, DHL and EMS

Send Inquiry

Download

Product Description

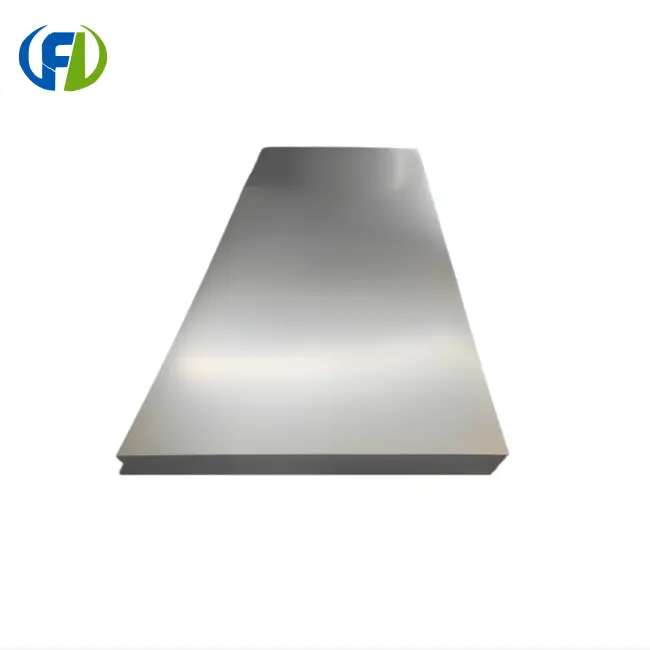

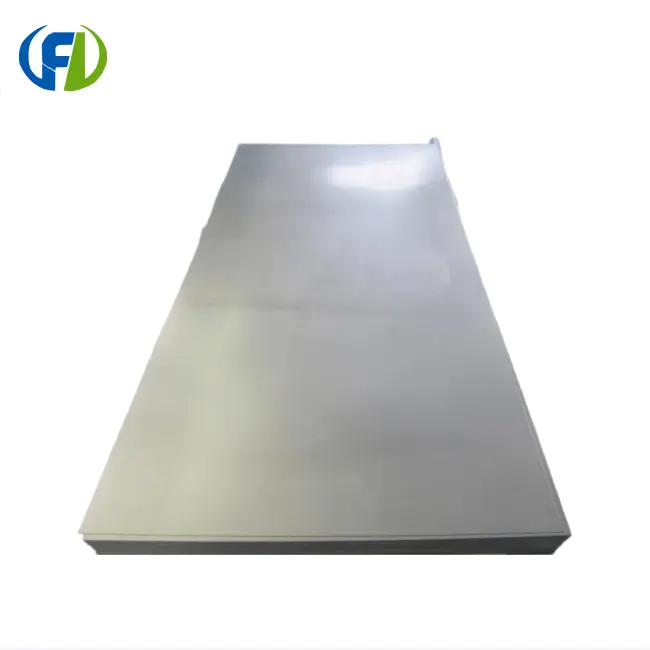

High-Performance Tantalum Plate for Industrial Applications

Product Introduction

Looking for superior corrosion resistance and exceptional durability in extreme environments? Our premium tantalum plate delivers unmatched performance for your most demanding applications. Manufactured to ASTM B708 standards, our tantalum plates combine pure metal properties with precision engineering to meet your exact specifications.

Whether you need standard dimensions or custom configurations, our tantalum plates offer outstanding chemical resistance against harsh acids like HCl, H₂SO₄, and HNO₃. With thickness ranging from 1-40mm and widths up to 1000mm, you can trust our products to deliver consistent performance in critical industrial processes.

	Chemical composition, Max
Grade	Fe	Si	Ni	W	Mo	Ti	Nb	O	C	H	N	Ta
RO5200	0.0018	0.003	0.0005	0.0035	0.0012	0.001	0.026	0.01	0.003	0.0015	0.0012	Remain
RO5252	0.01	0.005	0.01	2.0~3.5	0.02	0.01	0.5	0.015	0.01	0.0015	0.01	Remain

Thickness (mm)	Tolerance (mm)		Width (mm)	Tolerance (mm)	Length (mm)	Tolerance (mm)
Thickness (mm)	Grade I	Grade II	Width (mm)	Tolerance (mm)	Length (mm)	Tolerance (mm)
0.15~0.2	±0.015	±0.02	50-300	±2.0	100-1000	±2.0
＞0.2~0.3	±0.020	±0.03	50-300	±2.0	100-1000	±2.0
＞0.3~0.5	±0.030	±0.04	50-300	±2.0	100-1000	±2.0
＞0.5~0.8	±0.040	±0.06	50-200	±1.0	50-700	±2.0
＞0.8~1.0	±0.060	±0.08	50-200	±1.0	50-700	±2.0
＞1.0~1.5	±0.080	±0.10	50-200	±1.0	50-700	±2.0
＞1.5~2.0	±0.120	±0.14	50-200	±1.0	50-700	±2.0
＞2.0~3.0	±0.160	±0.18	50-200	±1.0	50-700	±2.0
＞3.0~4.0	±0.180	±0.20	50-200	±1.0	50-700	±1.0
＞4.0~6.0	±0.200	±0.24	50-200	±1.0	50-700	±1.0
Special requirements to be agreed upon seller and buyer

2. Mechanical properties:

Grade	State	Thickness(mm)	Tensile Strength (MPa)	Yield Strength (Mpa)	Elongation (%)
RO5200	Annealed(M)	<1.524	207	138	20
RO5200	Annealed(M)	≥1.524	172	103	30
RO5252	Annealed(M)	<3.175	276	207	20
RO5252	Annealed(M)	≥3.175	276	152	25

Technical Specifications

Our tantalum plates meet rigorous industry standards:

Material Grade: Pure tantalum or tantalum alloys
Standard Compliance: ASTM B708
Thickness Range: 1mm to 40mm
Maximum Width: 1000mm
Surface Finish Options: Pickled or bright finish
Purity Level: 99.95% minimum
Density: 16.6 g/cm³

Key Features and Benefits

Exceptional Corrosion Resistance: Your equipment faces harsh chemical environments daily. Our plates withstand aggressive acids and maintain structural integrity where other materials fail.

Superior Mechanical Properties: High strength-to-weight ratio ensures reliable performance under stress while minimizing material usage.

Biocompatibility: Perfect for medical device applications requiring both durability and safety.

High Temperature Stability: Maintains properties at elevated temperatures up to 3000°C.

Excellent Workability: Easy to machine, weld, and form according to your specific requirements.

Applications and Industries Served

Chemical Processing Equipment manufacturing relies on our plates for:

Reactor vessels and heat exchangers
Distillation columns and piping systems
Valve components and pump parts

Electronics Industry applications include:

Capacitor manufacturing
Semiconductor processing equipment
Sputtering targets

Medical Device Manufacturing uses our materials for:

Surgical instruments
Implantable devices
Laboratory equipment

High-Temperature Furnace components benefit from our superior heat resistance properties.

Manufacturing Process

We control every step of production to ensure consistent quality:

Raw Material Selection: We source high-purity tantalum ingots from certified suppliers.

Precision Rolling: Advanced rolling mills create uniform thickness across the entire surface.

Heat Treatment: Controlled annealing processes optimize mechanical properties and stress relief.

Surface Treatment: Pickling removes surface oxides while bright finishing provides smooth surfaces for critical applications.

Dimensional Control: Precision cutting and finishing ensure your plates meet exact specifications.

Quality Control and Testing

Every tantalum plate undergoes comprehensive testing:

Chemical composition analysis using ICP-OES
Mechanical property testing including tensile strength
Dimensional verification with coordinate measuring machines
Surface quality inspection
Corrosion resistance validation

Our quality management system ensures consistent results you can depend on.

Why Choose Us

Location Advantage: Based in Baoji City, China's Titanium Valley, we have access to premium raw materials and specialized manufacturing expertise.

Proven Track Record: Our established relationships span Australia, Korea, Germany, US, UK, Malaysia, Middle East, and Taiwan.

Quality Commitment: We never compromise on quality. Your specifications become our manufacturing standards.

Technical Support: Our engineering team provides application guidance and material selection assistance.

Competitive Pricing: Direct manufacturer pricing eliminates middleman costs.

Contact Information

Ready to discuss your tantalum plate requirements? Our team stands ready to help you find the perfect solution.

Email: jenny@bjfreelong.com

WhatsApp: +86 13571190943

Contact us today for quotes, technical specifications, or application guidance. We're committed to delivering the quality and service your projects demand.

---

Baoji Freelong New Material Technology Development Co., Ltd. - Your trusted partner for premium tantalum materials and exceptional service.
