6al4v titanium rod

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Surface: Polished surface
Grade: Gr5(Ti-6Al-4V) TC4
Diameter: 2–150mm
Density: 4.51g/cm³
Surface: Bright or ground
Application: Aerospace & marin
Standard: ASTM B348
Packaging Details: Plywood case
Delivery Time: 5~7days
Certification: ISO9001

Send Inquiry

Download

Product Description

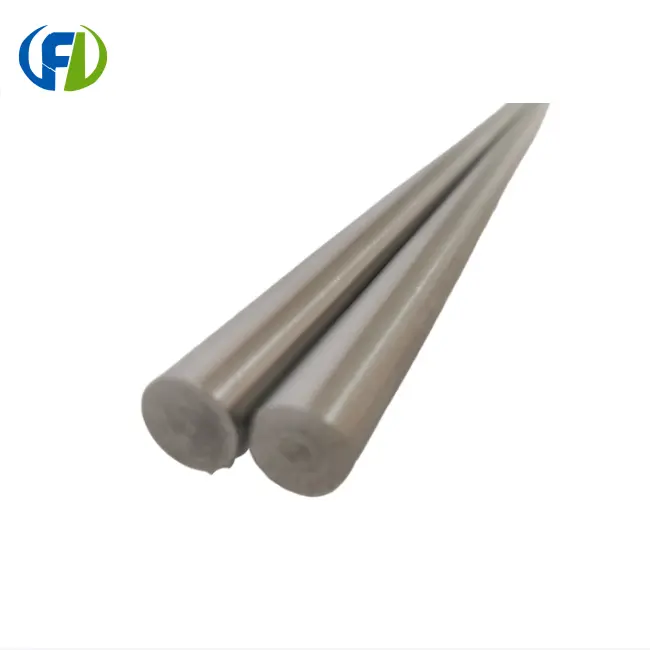

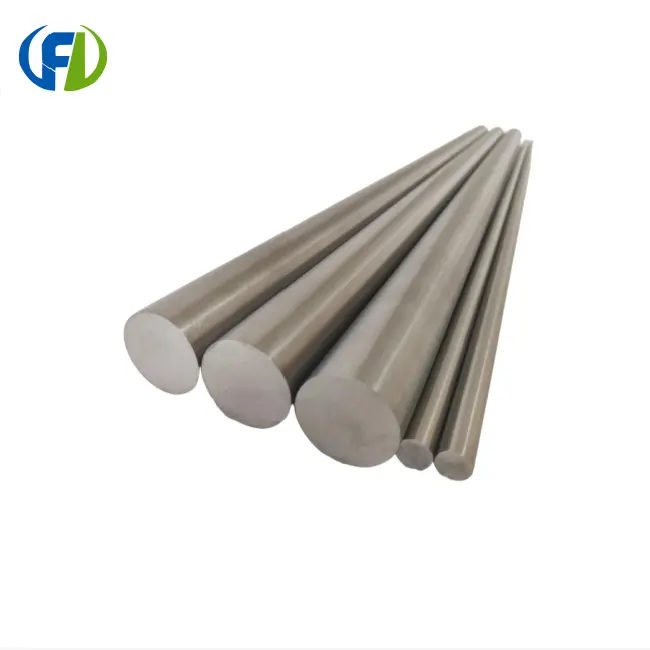

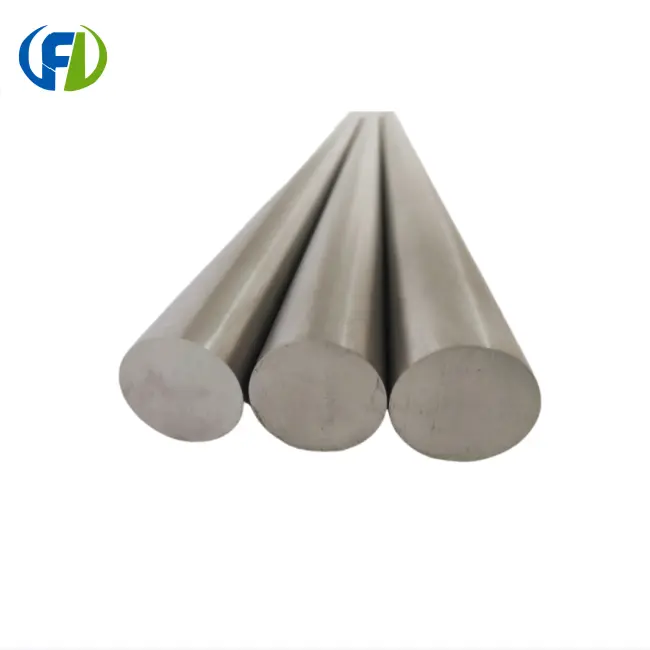

6Al4V Titanium Rod - Premium Grade 5 Titanium Alloy Rods

Product Introduction

Looking for reliable titanium solutions for your critical applications? Our 6al4v titanium rod represents the industry standard for high-performance aerospace and marine projects. Manufactured in China's Titanium Valley, Baoji City, these Grade 5 titanium alloy rods deliver exceptional strength-to-weight ratios and outstanding corrosion resistance. Whether you need precision components for aerospace engineering or marine applications, our 6al4v titanium rod meets the most demanding specifications.

Each rod undergoes strict quality control processes to ensure consistent performance. Our bright polished surface finish provides excellent aesthetics and corrosion protection. Available in diameters ranging from 2mm to 150mm, these rods accommodate diverse manufacturing requirements across multiple industries.

Technical Specifications

Material Designation: Ti-6Al-4V (Grade 5)

Standard Compliance: ASTM B348

Diameter Range: 2–150 mm

Surface Finish: Bright polished

Tensile Strength: 895-930 MPa minimum

Yield Strength: 825-869 MPa minimum

Elongation: 10% minimum

Density: 4.43 g/cm³

Melting Point: 1604-1660°C

Chemical composition reference standard
Grade	Al	V	N≤	C≤	H≤	Fe≤	O≤	Other elements (single)
TA1 (GR1)			0.03	0.08	0.015	0.2	0.18	0.1	0.4
TA2 (GR2)			0.03	0.08	0.015	0.3	0.25	0.1	0.4
TC4 (GR5)	5.5-6.75	3.5-4.5	0.05	0.08	0.015	0.3	0.2	0.1	0.4

Key Features and Benefits

Superior Strength-to-Weight Ratio

Excellent Corrosion Resistance

Biocompatibility

Temperature Stability

Easy Machining

Applications and Industries Served

Aerospace Industry

Marine Applications

Medical Devices

Industrial Manufacturing

Manufacturing Process

Our production facility employs advanced vacuum arc remelting (VAR) technology. This process ensures uniform chemical composition and eliminates impurities. The forging process creates optimal grain structure for maximum strength and durability.

Hot working and controlled cooling cycles develop the desired mechanical properties. Each batch undergoes comprehensive testing before bright polishing operations. Final inspection verifies dimensional accuracy and surface quality standards.

Quality Control and Testing

Every 6al4v titanium rod undergoes rigorous testing protocols. Chemical analysis confirms alloy composition within specification limits. Mechanical testing validates tensile strength, yield strength, and elongation properties.

Ultrasonic inspection detects internal discontinuities. Dimensional verification ensures precise diameter tolerances. Surface quality inspection confirms bright polish standards meet customer expectations.

Contact Information

Ready to discuss your 6al4v titanium rod requirements? Our technical team stands ready to assist with material selection and specifications.

Email: jenny@bjfreelong.com

WhatsApp: +86 13571190943

Contact us today for competitive pricing and technical support. Let our titanium expertise drive your project success forward.

Our Packaging

Package

About us

Baoji Freelong New Material Technology Development Co., Ltd loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.
