BT3-1 Titanium Rod

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: BT3-1
Diameter: Φ2 mm–Φ60mm Φ30 mm–Φ300 mm
Length: ≤ 12meters or as per request
Standard: ASTM B348,ASTM B381,ASTM F136,ASTM F67
Advantages: High strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

Features and Applications

BT3-1 titanium rod is a martensitic α+β type titanium alloy, which can work at 450℃ for a long time, has good thermal strength and excellent hot working performance，it is suitable for manufacturing parts of aviation machinery.

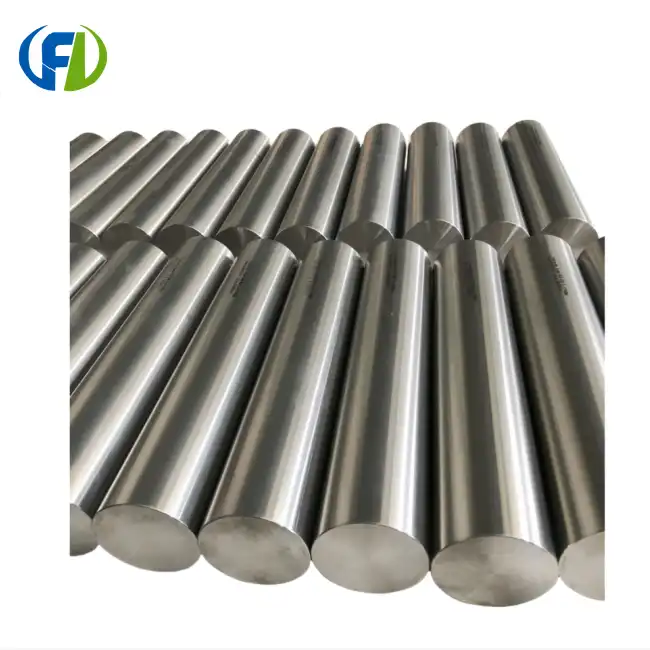

BT3-1 Titanium Rod picture display

Al	Mo	Cr	Fe	Si	C	N	H	O
5.5~7.0	2.0~3.0	0.8~2.3	0.2~0.7	0.15~0.4	0.1	0.05	0.015	0.18

Mechanical Properties

Standard	Type	Condition	Dia.	Sampling direction	room temperature
σ_b/MPa	σ_p_0.2/MPa	δ₅/%	ψ/%
GB/T2965-2010	Rod	M	8~90	L	≥980	≥840	≥10	≥25
GJB2744-1994	21~100	L	≥980	/	≥10	≥25
>100~150	LT	≥920	/	≥9	≥20

Melting and Casting Process

Ingots for making BT3-1 bars and forgings should be smelted in vacuum consumable arc furnaces more than twice. Select grade 0~2 small particle sponge titanium with oxygen content not more than 0.08%, Al~Mo master alloy with molybdenum content of 50%, Al-Si master alloy with silicon content of 10%, and industrial-grade iron wire or iron particles.

BT3-1 titanium rod has the advantages of high specific strength and good corrosion resistance of ordinary titanium alloy, and also has the following properties

Superplastic Properties:

BT3-1 titanium rod alloy has excellent superplastic properties, and the elongation after fracture of the material with fine equiaxed structure at 900 ℃ is greater than 900%.

Welding Performance:

BT3-1 titanium rod alloy can be used in welding structures, generally using tungsten argon arc welding and electron beam welding. However, since the alloy is a highly alloyed α-β type titanium alloy, it has a large reaction to the thermal cycle during welding, so the weld and its adjacent areas may have unfavorable changes in structure and properties, and special heat treatment is required to eliminate them or reduce the impact of this change.

FAQ

Q: What is the advantage of your company?

A: We have many professional technicians. We have more competitive price and better after-sales service than other companies.

Q：Can you provide samples? MOQ?

A：Yes, we can provide you with free samples. MOQ: 5 kg.

Q：Do you accept customization?

A：Yes, we can process according to your unit weight or drawing.

Q：Do you inspect the finished products?

A：Yes, every product will be inspected by our QC before shipment.
