Gr5 Ti-6Al-4V ELI Titanium Alloy Rod, Medical Grade Titanium Rod

Name: Gr5 Ti-6Al-4V ELI Titanium Alloy Rod, Medical Grade Titanium Rod
Material: Titanium Alloy
Grade: TA3, TC4, TC4ELI; GR3, GR5, GR5ELI
Diameter: φ4~200mm
Length: ≤6000mm
Surface Treatment: Polished
Density: 4.51g/cm3
Standard: ASTM F136, ISO 5832-3

Send Inquiry

Download

Product Description

Gr5 Ti-6Al-4V ELI (Extra Low Interstitial) is a commonly used aluminum-vanadium-titanium alloy in the medical field, specifically designed for implantable devices and long-term implants. Its chemical composition is primarily titanium, with alloying elements comprising approximately 6% Al and 4% V. The content of interstitial elements such as oxygen, nitrogen, and carbon is strictly controlled to improve toughness and ductility, ensuring safety and stability during long-term use within the human body. Common forms include forged bars, cold-drawn bars, or annealed bars, with surfaces that can be polished, pickled, or anodized to meet various medical requirements.

Product Picture display

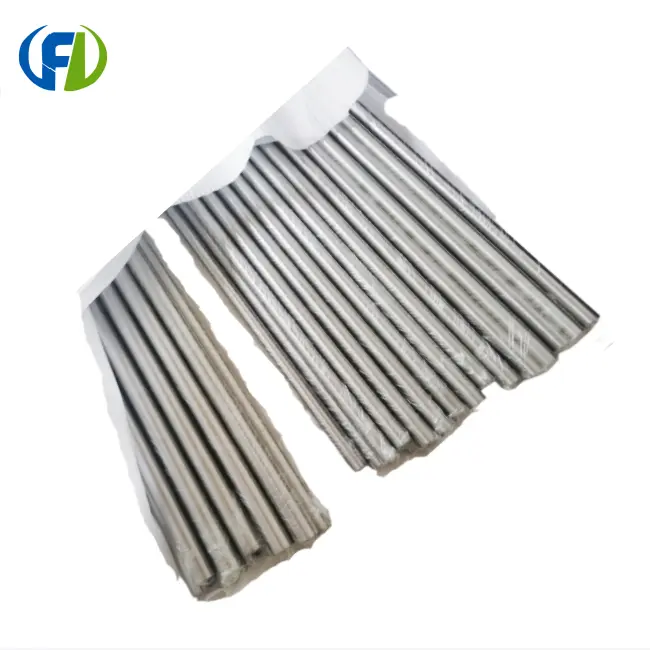

Gr5 Ti-6Al-4V ELI Titanium Alloy Rod, Medical Grade Titanium Rod in China

Mechanical properties comparison:

National standard requirements	Tensile Strength	Specified non-proportional elongation strength	Elongation after fracture	Rate of reduction in area
TC4	≥930 Mpa	≥860 Mpa	≥10%	≥25%
TC4ELI	≥860 Mpa	≥795 Mpa	≥10%	≥25%
Actually testing TC4	1041 Mpa	911 Mpa	15.5%	44%

Main Applications

1.Medical Implants: Main components of artificial joints (hip, knee joints), bone screws, bone plates, intramedullary nails, and other implantable devices capable of withstanding long-term loads.

2.Oral and Maxillofacial Surgical Instruments: Implants, surgical instruments, surgical guides, etc.

3.High-Demand Medical Device Accessories: Connectors for implantation, shaft components for precision surgical tools, etc.

Comparison of chemical composition:

National standard requirements	Al	V	Fe	C	N	H	O
TC4(standard value)	5.5-6.75	3.5-4.5	0.3	0.08	0.05	0.008	0.2
Tc4ELI(standard value)	5.5-6.5	3.5-4.5	0.25	0.08	0.03	0.012	0.13
