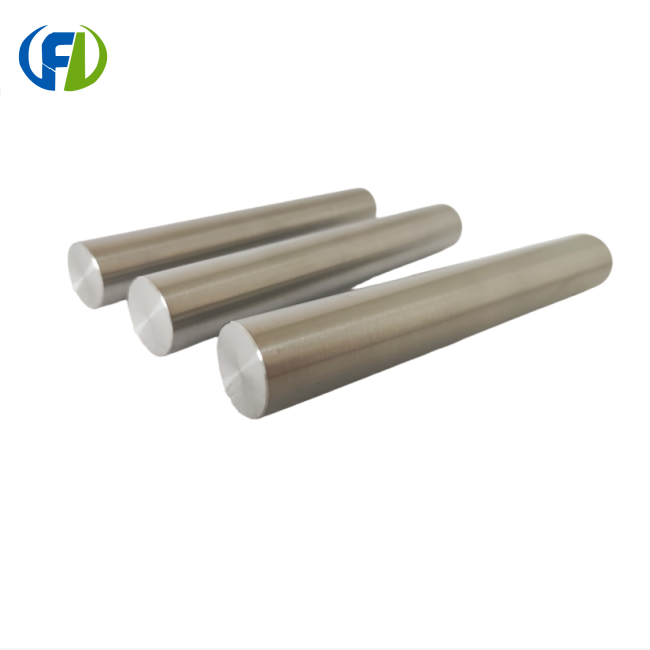

Tc4 Titanium Round Rod

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: Gr5 TC4
Standard: ASTM B348 ASTM B381 ASTM F136
Advantages: High strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

Introduction to TC4 Titanium Round Rod

TC4 Titanium (Ti-6Al-4V) is a titanium-based alloy with excellent comprehensive properties, including high strength, light weight, corrosion resistance and good processing performance. TC4 Titanium Alloy Round Bar is a common metal bar made of TC4 material, widely used in aerospace, chemical, medical equipment, automotive and shipbuilding industries.

Mechanical properties comparison:

National standard requirements	Tensile Strength	Specified non-proportional elongation strength	Elongation after fracture	Rate of reduction in area
TC4	≥930 Mpa	≥860 Mpa	≥10%	≥25%
TC4ELI	≥860 Mpa	≥795 Mpa	≥10%	≥25%
Actually testing TC4	1041 Mpa	911 Mpa	15.5%	44%

Tc4 Titanium Round Rod TC4 high-precision medical titanium rod technical features: low gap TC4 and TC4 two standards in one, that is, it has the low impurities of low gap TC4 ELI and the high performance of TC4. That is to say, it has the performance characteristics of high strength and high plasticity at the same time.

Tc4 Titanium Tound rod size range

Diameter: 5mm-500mm
Length: Customized according to customer needs, common length is 1m-6m.

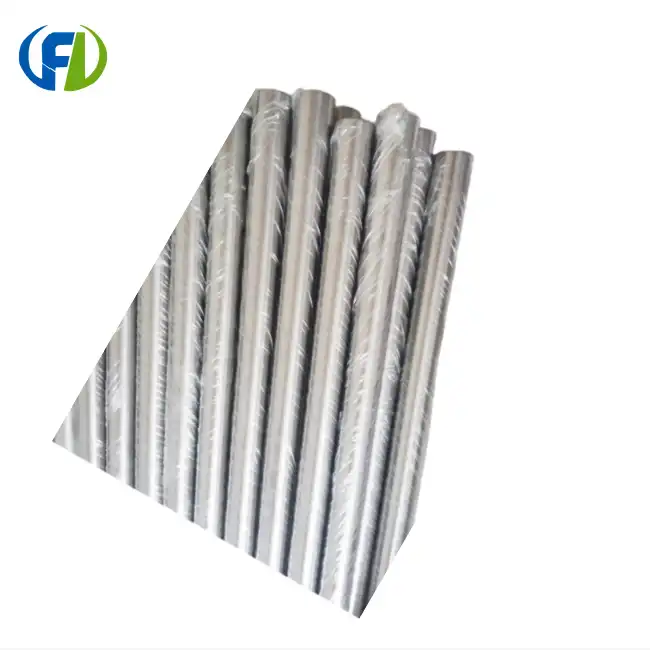

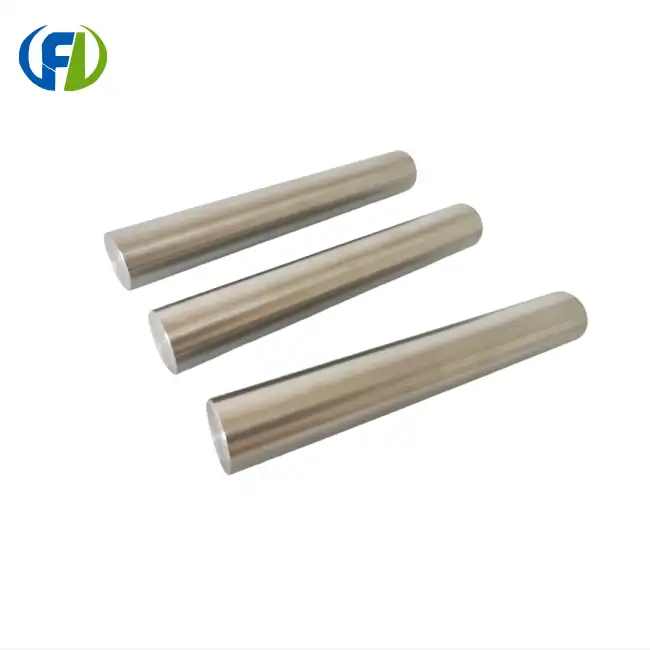

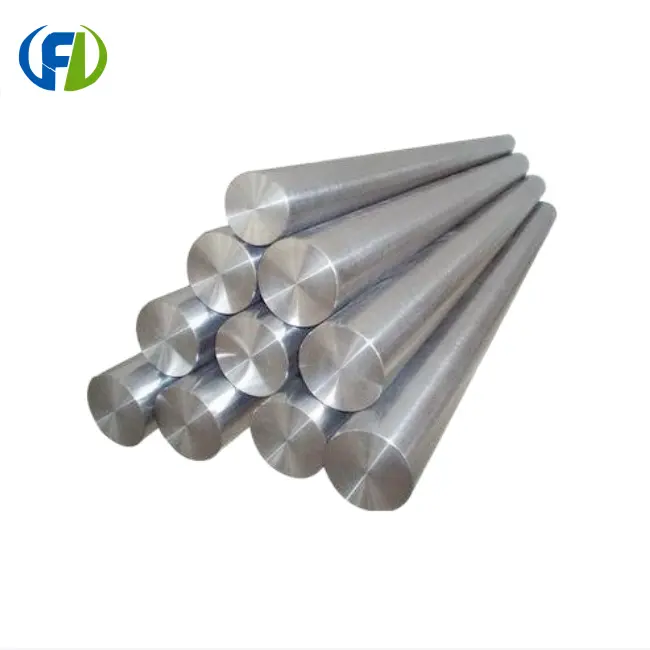

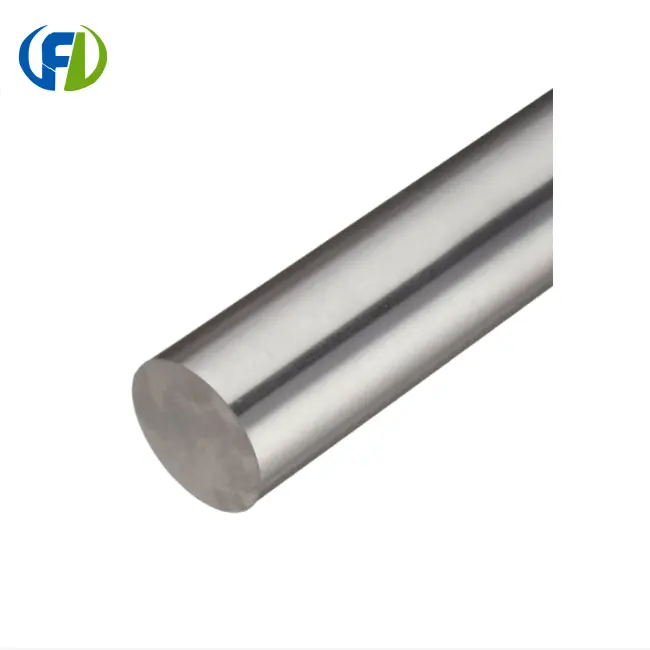

TC4 Titanium Round Rod display picture

What are the medical uses of Tc4 Titanium Round Rod?

Among medical metal materials, titanium and titanium alloys have become the preferred materials for medical implant products such as artificial joints (hip, knee, shoulder, ankle, elbow, wrist, knuckles, etc.), bone trauma products (intramedullary nails, plates, screws, etc.), spinal orthopedic fixation systems, dental implants, brackets, orthopedic wires, artificial heart valves, interventional cardiovascular stents, etc. due to their excellent comprehensive properties.

Tc4 Titanium round rod manufacturing process:

Forging and machining: titanium ingot inspection - forging - annealing to eliminate work hardening - machining - annealing to eliminate stress - internal and external surface machining - size inspection - performance inspection - labeling and storage

FAQ

A. Are you a factory or a trading company?

Our factory has 10 years of production experience.

B. Can you provide samples? MOQ?

Yes, we can provide you with free samples. MOQ: 10kg.

C. Do you accept customization?

Yes, we can process according to your unit weight or drawing.

D. Do you check the finished product?

Yes, every product will be checked by our QC before shipment.

E. How much is the shipping fee?

Mainly depends on weight, volume, package size and destination port.

F. What is your delivery time?

In stock, 7-15 days, if not, according to your quantity.

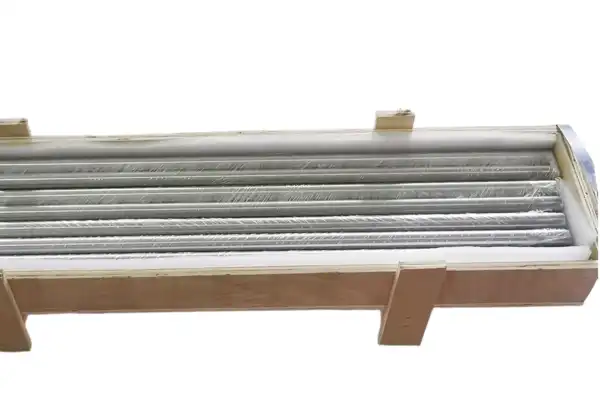

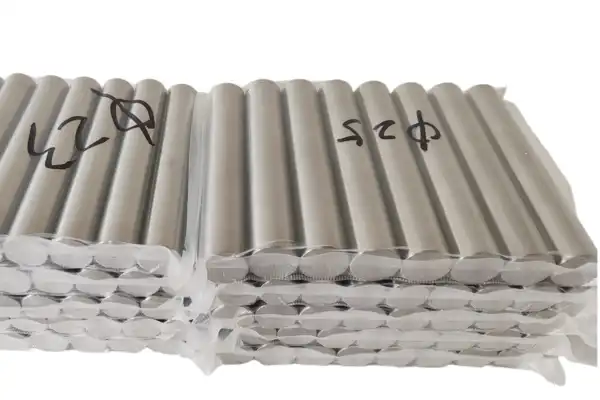

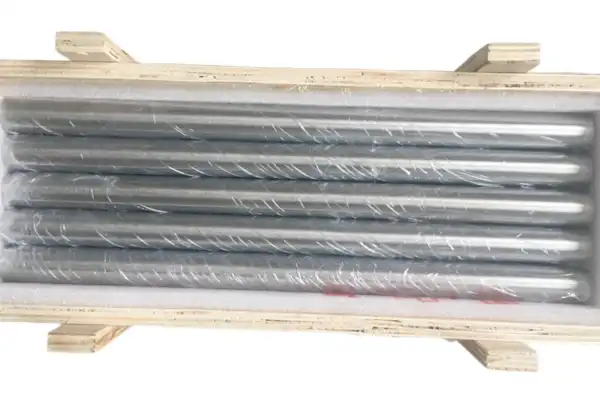

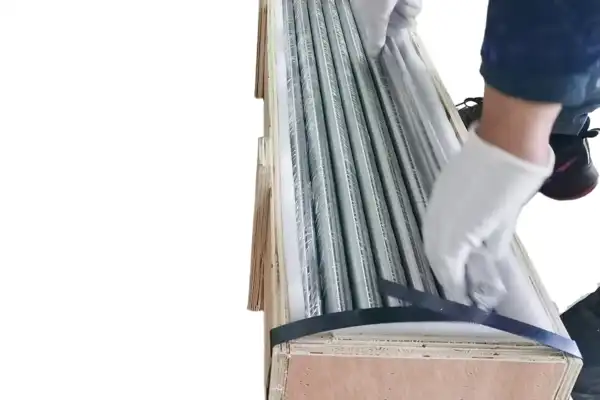

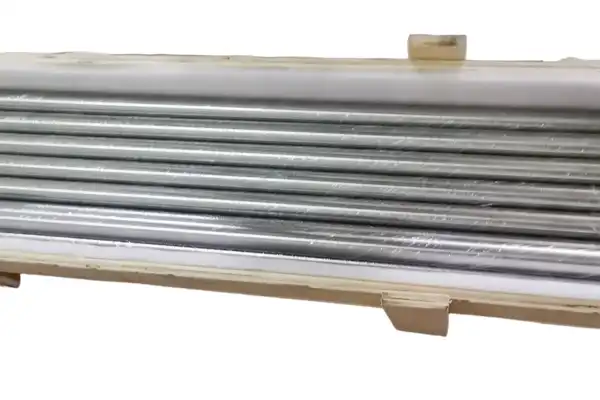

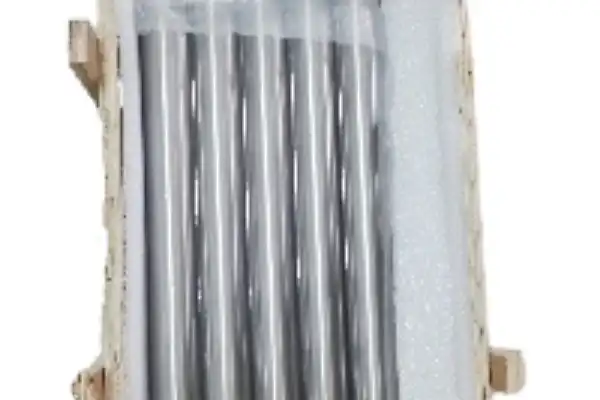

Our Packaging

Package

Package

About us

Baoji Freelong New Material Technology Development Co., Ltd loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.
