Titanium Bar for Medical Application

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Diameter: Φ2 mm–Φ60mm Φ30 mm–Φ300 mm
Length: ≤ 12meters or as per request
Grade: Gr2,Gr3,Gr4,Gr5
Standard: ASTM F67,ASTM F136
Advantages: High strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

Titanium Bar for Medical Application Introduction

Pure titanium (Gr2, Gr3, Gr4) and gr5 titanium alloy do not contain harmful heavy metals, are non-toxic and have a very good compatibility with human tissues and blood, so they are used by the medical community to make human organs and body parts that are implanted into the human body. Titanium is a non-magnetic metal and will not be magnetized in a large magnetic field. This is also an important feature that it can be used as a medical material.

Titanium Bar for Medical application
Material	Unalloyed titanium and alloy titanium
Grade	Gr2,Gr3,Gr4,Gr5,
Technology Standard	ASTM F67,ASTM F136

Diameter	4mm 5mm 5.5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm etc.
Length	500~6000mm or according to customers' request
Product Status	Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
Shape	Round bar, square bar , hex bar...
Feature	1.Polished surface without any defects free from cracks no pittings 2.Two ends flating making sure length torlerance and good looking
Certificate	ISO9001:2008, TUV, material test certificate acc EN10204.3.1

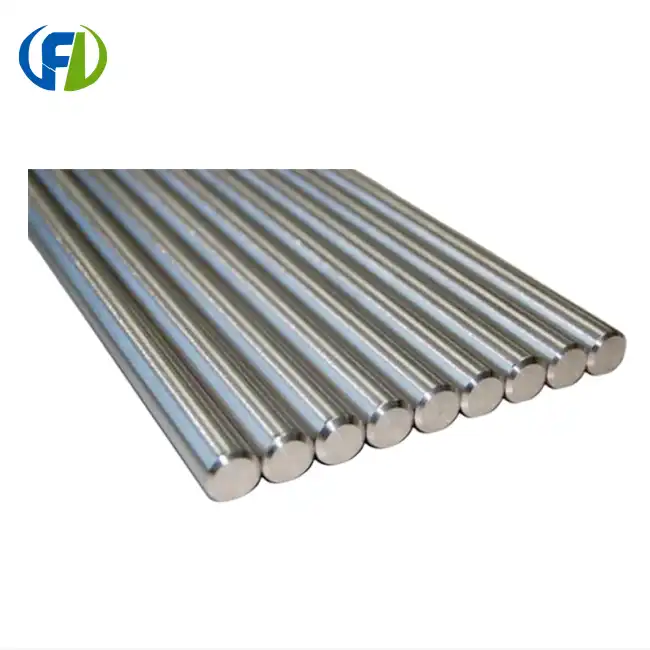

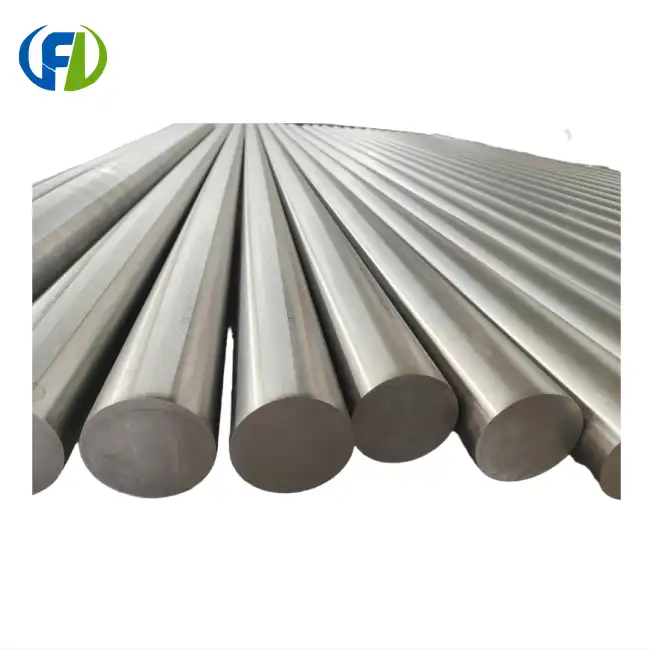

Titanium Bar for Medical Application Introduction Picture display

Customized Titanium Bar for Medical Application

Titanium Bar for Medical Application Tolerance of diameter

Diameter(mm)	h7	h8	h9	h10	h11	h12
Diameter(mm)	Tolerance precision (um)
3Max	10	14	25	40	60	100
3~6	12	18	30	48	75	120
6~10	15	22	36	58	90	150
10~18	18	27	43	70	110	180
18~30	21	33	52	84	130	210
30~50	25	39	62	100	160	250
50~80m	30	46	74	120	190	300
"h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X)

Titanium Bar for Medical Application Quality Guarantee

(1) Main quality indicators: Chemical composition, mechanical property, tolerance.

(2) With advanced technology & equipment, abundant experiences and skilled workers,we process titanium material in accordance with the International standard.

(3)With own R&D, Produce, Process and Sales system, we always struggling to supply the product with the most excellent quality and the most favorable price and the best and the most efficient service.

(4)The original Mill Test Certificate is available to attach to the delivery.

Our advantage

1. Equipment Advantages

There are planing machine, milling machine, annealing furnace, laser cutting machine, bending machine, leveling machine, punching machine and forging hammer, etc.

2. The Product Advantages

Large quantity of spot stock, can provide samples, can be processed and customized according to the drawings.

3. Price Advantages

Source factory production, no middlemen, factory price delivery.

4. Quality Advantages

Provide material report, if customer needs, can provide third party test report.

5.And Service Advantages

Professional customer service throughout the service for you, if you encounter product quality problems can be returned free of charge.

FAQ

A. Are you a factory or a trading company?

Our factory has 10 years of production experience.

B. Can you provide samples? MOQ?

Yes, we can provide you with free samples. MOQ: 10kg.

C. Do you accept customization?

Yes, we can process according to your unit weight or drawing.

D. Do you check the finished product?

Yes, every product will be checked by our QC before shipment.

E. How much is the shipping fee?

Mainly depends on weight, volume, package size and destination port.

F. What is your delivery time?

In stock, 7-15 days, if not, according to your quantity.

Our Packaging

Package

About us

Baoji Freelong New Material Technology Development Co., Ltd loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales. and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.

Our Factory
