Width 400mm Titanium Foil

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Grade: Gr1 Gr2 Gr5 Gr7 Gr9 Gr23 Etc
Density: 4.51g/cm3
Thickness: 0.01-0.5mm
Width: 400mm
Surface: Polished
Standard: ASTM B265,ASME SB265,ASTM F136/67, AMS 4911,AMS 4905, AMS 4907, MIL-T-9046
Certification：ISO9001
Delivery Time:5~7days
Payment Terms:T/T
Packaging Details:Plywood case

Send Inquiry

Download

Product Description

Width 400mm Titanium Foil Details

Product Name:	Titanium Foil/Titanium Strip
Grade:	Gr1 Gr2 Gr5 Gr7 Gr9 Gr23 BT1-1 etc.
Density:	4.51g/cm3
Standard:	ASTM B265,ASME SB265,ASTM F136/67, AMS 4911,AMS 4905, AMS 4907, MIL-T-9046
Surface	Bright
Thickness	min 0.01mm
Width	max 400mm
Process:	cold rolling

Titanium foil is a thin sheet material with titanium as the main component, which has excellent corrosion resistance, high strength, low density, and excellent thermal stability. Titanium foil with a width of 400mm is mainly used in aerospace, chemical industry, medical equipment and other fields.

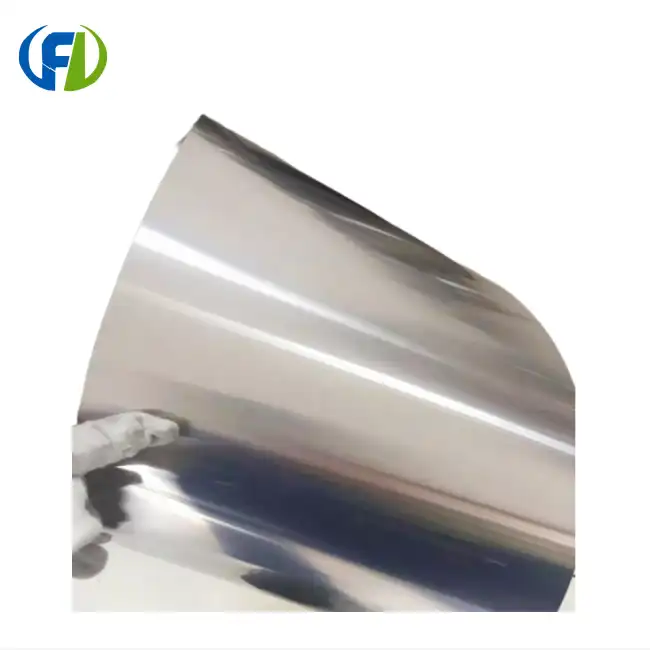

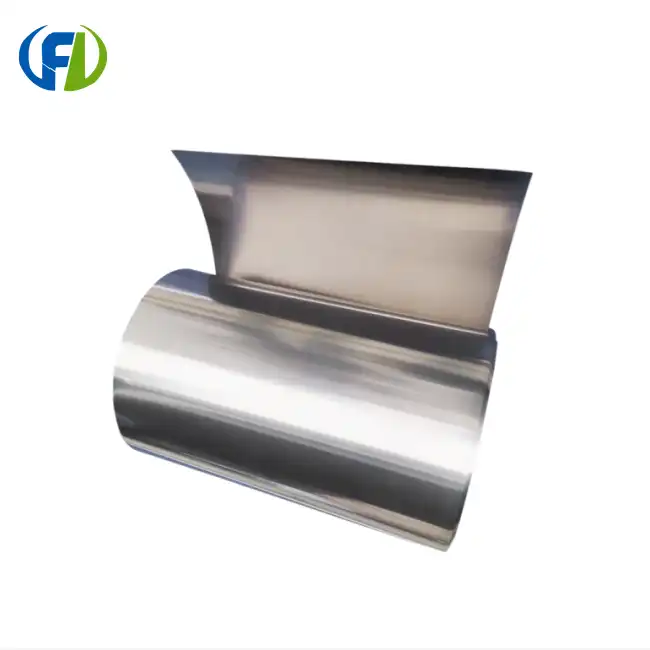

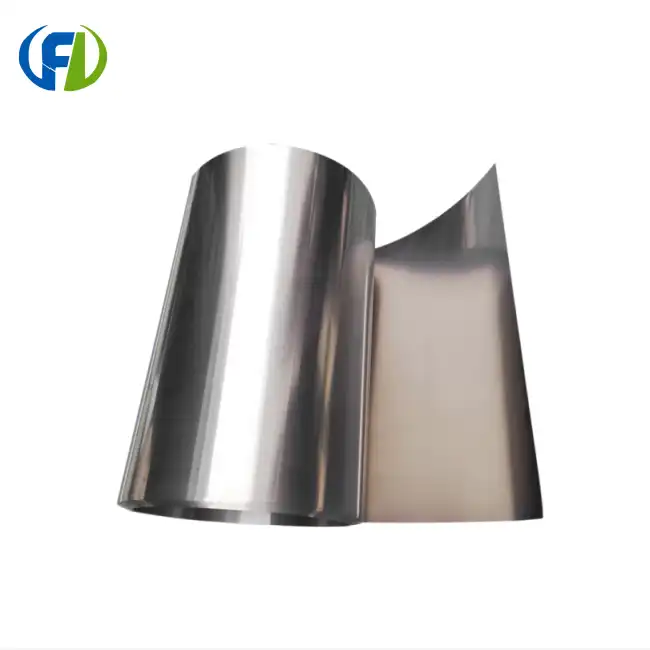

Width 400mm Titanium Foil picture display

Chemcial Composition Of ASTM B265 Titanium Foil/Strip

Element	Composition,%
Element	Grade1	Grade2	Grade3	Grade4	Grade5	Grade6	Grade7	Grade9	Grade11	Grade12
N max	0.03	0.03	0.05	0.05	0.05	0.03	0.03	0.03	0.03	0.03
C max	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08
H max	0.05	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015
Fe max	0.2	0.3	0.3	0.5	0.4	0.3	0.5	0.25	0.2	0.3
O max	0.18	0.25	0.35	0.4	0.2	0.2	0.25	0.15	0.18	0.25
Al					5.5-6.75	4.0-4.6		2.5-3.5
V					3.5-4.5			2.0-3.0

Width 400mm Titanium Foil Advantages and Uses

One of the advantages of titanium foil is its excellent corrosion resistance, which can maintain stable performance in a variety of harsh environments such as strong acid, strong alkali, high temperature, and high pressure. In addition, the strength and rigidity of titanium foil are also high, and it can withstand high-strength tensile, bending, shearing and other mechanical loads. At the same time, the density of titanium foil is also very low, which is lighter than other metal materials, which can reduce the structural weight and enhance the overall performance.

Titanium foil can be used in the field of aerospace to manufacture structural materials for aerospace vehicles, such as aircraft, satellites, rockets, etc. In addition, titanium foil can also be used in the manufacture of chemical equipment, medical equipment, sports equipment and other fields. Titanium foil can maintain stable performance in harsh environments such as high temperature, high pressure, strong acid, strong alkali, etc., so it is widely used in these fields.

When using titanium foil, care needs to be taken to avoid cuts, drops and slips to avoid damage to the surface of the titanium foil. In addition, during the processing of titanium foil, special attention should be paid to the composition and characteristics of the material to ensure the physical properties and chemical stability of the titanium foil.

In summary, titanium foil is an excellent material with excellent corrosion resistance, high strength, and low density. Titanium foil with a width of 400mm is mainly used in aerospace, chemical industry, medical equipment and other fields, and has broad application prospects and important economic significance.
