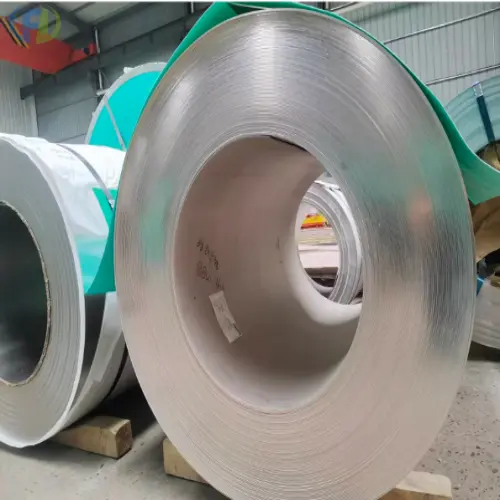

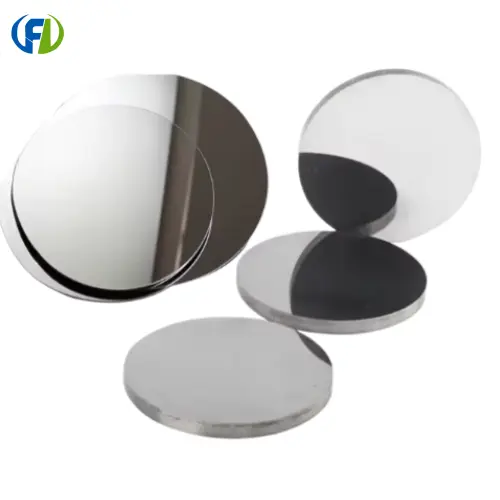

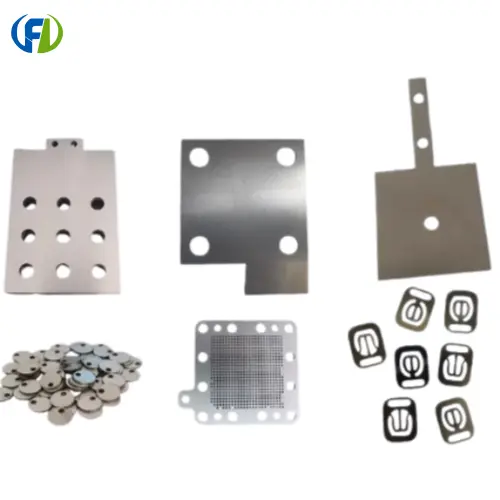

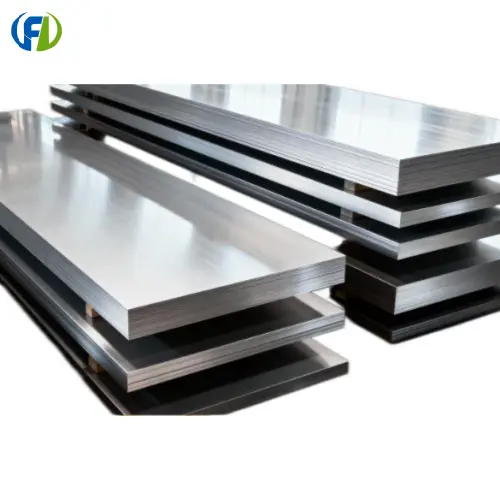

pure titanium plate/Gr1 Gr2

I. Product Introduction

Core Components: Pure titanium (Ti≥99.2%), containing trace amounts of Fe, O, and other impurities.

Common Grades: TA1 (Gr1), TA2 (Gr2), TA3, TA4 (domestic).

Physical Properties:

Density: 4.51 g/cm³ (approximately 57% of steel)

Tensile Strength: 240–550 MPa (annealed state)

Elongation: ≥20% (good plasticity, easy cold working)

Hardness: 120–170 HV

Core Characteristics:
Lightweight and High Strength: Specific strength (strength/density) far exceeds that of steel and aluminum, resulting in significant weight reduction.

Corrosion Resistance: Forms a dense oxide film on the surface, resistant to corrosion from seawater, nitric acid, wet chlorine, organic acids, etc.

Biocompatibility: Non-toxic, non-rejecting, and can directly integrate with bone tissue.

Wide Temperature Range Stability: Maintains stable mechanical properties within a temperature range of -253℃ to 600℃.

Specifications: Thickness 0.5–50mm, width 1000–1500mm, length 2000–4000mm.

II. Main Application Areas

1. Chemical/Chlor-alkali Industry (Corrosion Resistance Preferred)

Chlor-alkali: Electrolytic cell anode plates, chlorine coolers (resistant to Cl⁻ corrosion).

PTA/Synthetic Fiber: Oxidation reactor linings, acetic acid storage tanks (resistant to bromides and acetic acid).

Environmental Protection: Flue gas desulfurization (FGD) equipment linings (resistant to SO₂, H₂SO₃).

Seawater Desalination: Evaporator plates, seawater pipelines (resistant to seawater erosion).

III. Grade Selection Guide

TA1 (Gr1): High plasticity, easy to stamp, suitable for heat exchangers, ultra-thin plates, and medical implants.

TA2 (Gr2): Balanced strength and corrosion resistance, suitable for chemical equipment, pressure vessels, and marine structures.

TA3/TA4: Higher strength, suitable for high-strength structural components and high-temperature parts.

IV. Advantages Summary

Weight Reduction: 40% lighter than steel, significantly reducing energy consumption and costs.

Long Service Life: Corrosion resistance life is 5–10 times that of stainless steel.

Safety: Non-toxic, no heavy metal leaching, suitable for medical and food contact applications.

Environmental Protection: 100% recyclable, low carbon emissions throughout its entire life cycle.

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!

Contact Us

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
