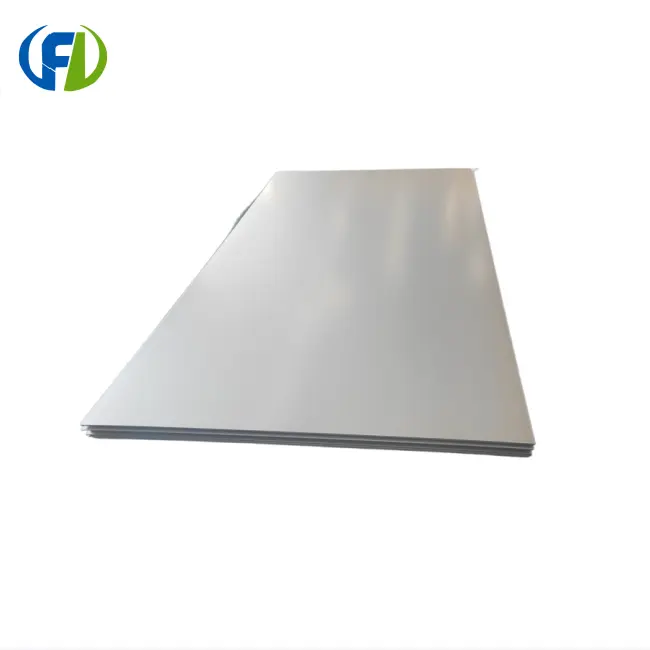

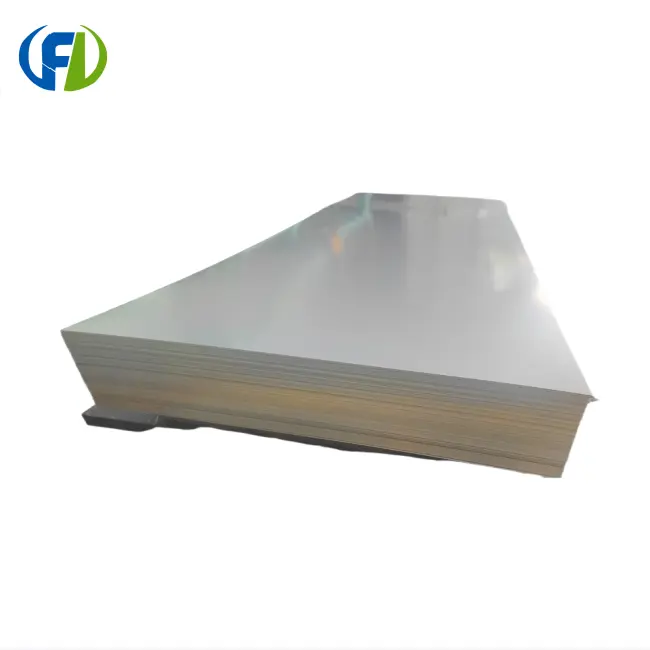

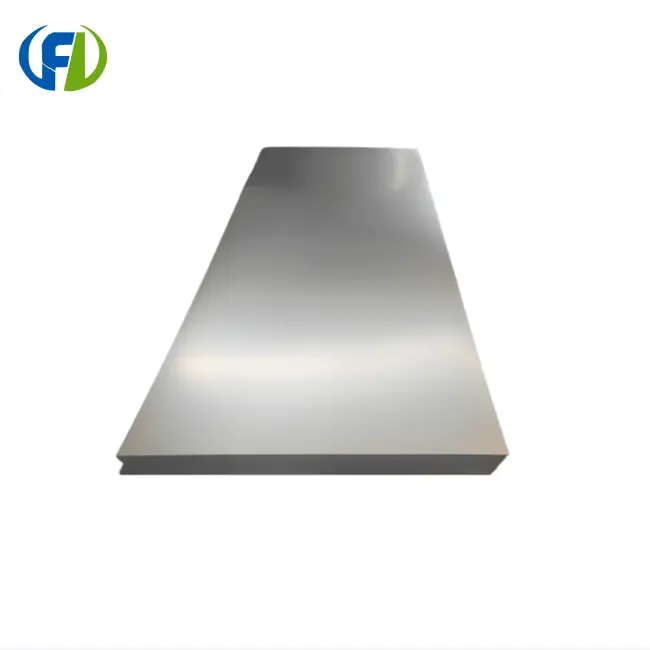

6al4v titanium plate

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Surface: Polished surface
Grade: Gr5(Ti-6Al-4V) TC4
Thickness: 0.3–60 mm
Density: 4.51g/cm³
Size: Customizable
Standard: ASTM B265 / AMS 4911
Packaging Details:Plywood case
Delivery Time: 5~7days
Certification: ISO9001

Send Inquiry

Download

Product Description

High-Performance 6AL4V Titanium Plate - Grade 5 Titanium Alloy Solutions

Looking for premium titanium alloy materials that deliver exceptional strength and reliability? Our 6al4v titanium plate represents the gold standard in aerospace and industrial applications. Made from Grade 5 titanium alloy, this high-performance material combines outstanding mechanical properties with excellent corrosion resistance. Whether you're working on aerospace components, medical devices, or marine applications, our titanium plates provide the durability and precision your projects demand.

Product Introduction

Our Grade 5 titanium alloy plates are manufactured to meet the most demanding industrial standards. Each plate undergoes rigorous quality control processes to ensure consistent performance across all applications. The superior strength-to-weight ratio makes these plates ideal for critical applications where weight reduction is essential without compromising structural integrity.

We supply various thicknesses and dimensions to meet your specific project requirements. Our manufacturing facility uses advanced processing techniques to deliver plates with excellent surface finish and dimensional accuracy.

Technical Specifications

Material Grade: Grade 5 Titanium Alloy (Ti-6Al-4V)

Standard Compliance: ASTM B265 / AMS 4911

Thickness Range: 0.5–50 mm

Surface Finish: Bright polished

Tensile Strength: 895-1000 MPa

Yield Strength: 828 MPa minimum

Elongation: 10% minimum

Density: 4.51 g/cm³

Grade	Main Chemical Constituent %											impurity content ≤%
	Ti	Al	V	Mo	Ni	Pd	Fe	C	N	H	O	residual elements
	Ti	Al	V	Mo	Ni	Pd	Fe	C	N	H	O	residual elements
												single	total
Gr1	Remainder	—	—	—	—	—	0.2	0.08	0.03	0.01	0.18	0.1	0.4
Gr2	Remainder	—	—	—	—	—	0.3	0.08	0.03	0.01	0.25	0.1	0.4
Gr3	Remainder	—	—	—	—	—	0.3	0.08	0.05	0.01	0.35	0.1	0.4
Gr4	Remainder	—	—	—	—	—	0.5	0.08	0.05	0.01	0.4	0.1	0.4
Gr5	Remainder	5.5~6.75	3.5~4.5	—	—	—	0.4	0.08	0.05	0.01	0.2	0.1	0.4
Gr7	Remainder	—	—	—	—	0.12~0.25	0.3	0.08	0.03	0.01	0.25	0.1	0.4
Gr9	Remainder	2.5~3.5	2.0~3.0	—	—	—	0.25	0.08	0.03	0.01	0.15	0.1	0.4
Gr12	Remainder	—	—	0.2~0.4	0.6~0.9	—	0.3	0.08	0.03	0.01	0.25	0.1	0.4

Key Features and Benefits

Exceptional Strength-to-Weight Ratio: Our plates offer superior mechanical properties while maintaining lightweight characteristics essential for aerospace applications.

Outstanding Corrosion Resistance: The natural oxide layer provides excellent protection against various corrosive environments, including seawater and chemical processes.

Biocompatibility: Perfect for medical implants and surgical instruments due to excellent biocompatibility properties.

High Temperature Performance: Maintains structural integrity at elevated temperatures up to 400°C.

Excellent Weldability: Can be easily welded using various techniques while maintaining joint strength and integrity.

Applications and Industries Served

Aerospace Industry: Aircraft structural components, engine parts, landing gear systems, and fasteners require the reliability our 6al4v titanium plate provides.

Medical Sector: Orthopedic implants, dental implants, surgical instruments, and prosthetic components benefit from the biocompatible properties.

Marine Applications: Propeller shafts, hulls, and offshore equipment utilize the excellent seawater corrosion resistance.

Automotive Industry: High-performance racing components, exhaust systems, and engine parts leverage the strength advantages.

Chemical Processing: Reactor vessels, heat exchangers, and piping systems in corrosive environments.

Contact Information

Ready to discuss your titanium plate requirements? Our technical team is here to help you find the perfect solution.

Email: jenny@bjfreelong.com

WhatsApp: +86 13571190943

Our Packaging

Package

About us

Baoji Freelong New Material Technology Development Co., Ltd loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.
