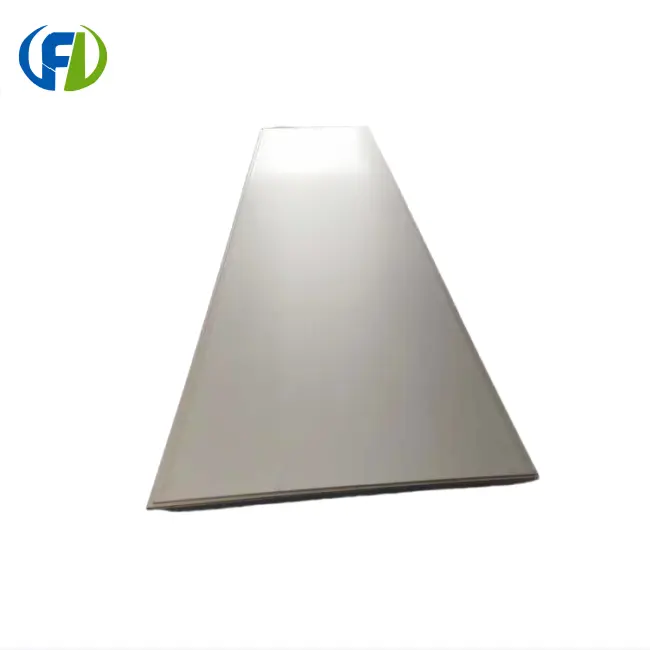

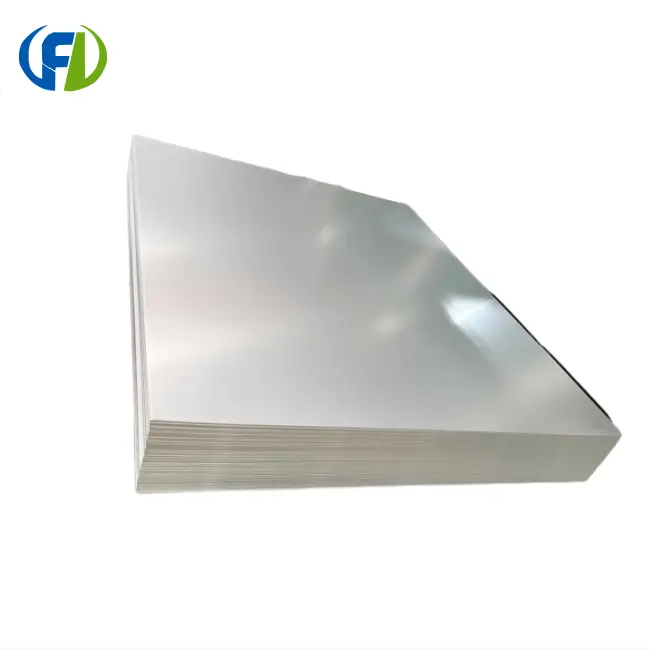

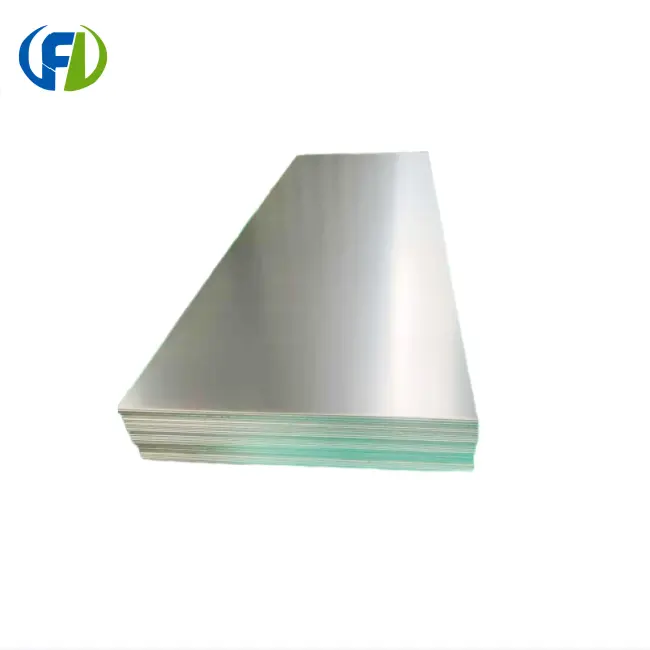

grade 5 titanium sheet metal

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Surface: Polished surface
Grade: Gr5(Ti-6Al-4V) TC4
Thickness: 0.3–60 mm
Density: 4.51g/cm³
Size: Customizable
Standard: ASTM B265
Packaging Details:Plywood case
Delivery Time: 5~7days
Certification: ISO9001

Send Inquiry

Download

Product Description

Grade 5 Titanium Sheet Metal - Premium Ti-6Al-4V Alloy Solutions

When you need exceptional strength and corrosion resistance, grade 5 titanium sheet metal delivers unmatched performance for your critical applications. Our Ti-6Al-4V alloy sheets combine lightweight properties with superior mechanical characteristics, making them the preferred choice for aerospace, medical, and industrial projects. At Baoji Freelong, we manufacture high-quality titanium sheets that meet your exact specifications and exceed industry standards.

Product Introduction

Our Grade 5 titanium sheets represent the gold standard in titanium alloy manufacturing. This premium material offers exceptional versatility and reliability for demanding applications. You'll find our products consistently deliver the performance characteristics your projects require, from prototype development to full-scale production runs.

Technical Specifications

Alloy Composition: Ti-6Al-4V
Thickness Range: 0.3–6 mm
Density: 4.51 g/cm³
Standard Compliance: ASTM B265
Surface Finish: Pickled / Polished
Tensile Strength: 895-930 MPa (minimum)
Yield Strength: 825-869 MPa (minimum)
Elongation: 10% minimum
Operating Temperature: -253°C to 400°C

Grade	Main Chemical Constituent %											impurity content ≤%
	Ti	Al	V	Mo	Ni	Pd	Fe	C	N	H	O	residual elements
	Ti	Al	V	Mo	Ni	Pd	Fe	C	N	H	O	residual elements
												single	total
Gr1	Remainder	—	—	—	—	—	0.2	0.08	0.03	0.01	0.18	0.1	0.4
Gr2	Remainder	—	—	—	—	—	0.3	0.08	0.03	0.01	0.25	0.1	0.4
Gr3	Remainder	—	—	—	—	—	0.3	0.08	0.05	0.01	0.35	0.1	0.4
Gr4	Remainder	—	—	—	—	—	0.5	0.08	0.05	0.01	0.4	0.1	0.4
Gr5	Remainder	5.5~6.75	3.5~4.5	—	—	—	0.4	0.08	0.05	0.01	0.2	0.1	0.4
Gr7	Remainder	—	—	—	—	0.12~0.25	0.3	0.08	0.03	0.01	0.25	0.1	0.4
Gr9	Remainder	2.5~3.5	2.0~3.0	—	—	—	0.25	0.08	0.03	0.01	0.15	0.1	0.4
Gr12	Remainder	—	—	0.2~0.4	0.6~0.9	—	0.3	0.08	0.03	0.01	0.25	0.1	0.4

Key Features and Benefits

Superior Strength-to-Weight Ratio

Outstanding Corrosion Resistance

Biocompatibility

Excellent Machinability

Applications and Industries Served

Aerospace Industry

Medical Devices

Marine Applications

Chemical Processing

Contact Information

Ready to discuss your grade 5 titanium sheet metal requirements? Our experienced team stands ready to help you select the perfect material solution for your application.

Email: jenny@bjfreelong.com

WhatsApp: +86 135 7119 0943

Contact us today for detailed specifications, pricing information, or technical consultation. We look forward to supporting your next project with premium titanium solutions.

Our Packaging

Package

About us

Baoji Freelong New Material Technology Development Co., Ltd loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.
