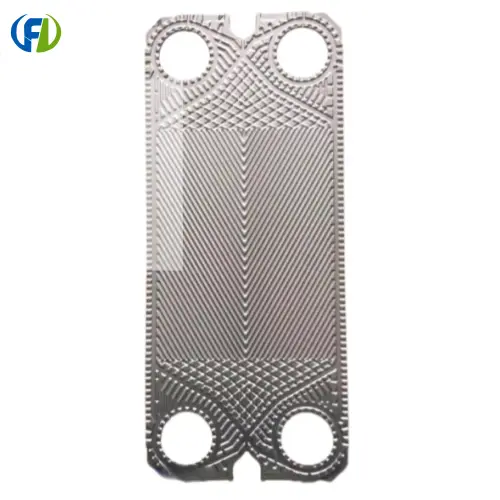

heat exchanger plate

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Name: Titanium Alloy Heat Exchanger Plate
Grade: Gr1, Gr2, Gr7, Gr11
Density: 4.51 g/cm³
Size: Customized
Standards: ASTM, DIN, EN
Manufacturing Process: Hot Rolling, Cold Rolling
Surface Treatment: Pickled/Bright
Certification: ISO9001
Delivery Time: 5-7 days
Payment Method: Wire Transfer (T/T)
Packaging: Standard Packaging

Send Inquiry

Download

Product Description

Titanium alloy heat exchanger plates (plate type/shell-and-tube type) are primarily made of industrial pure titanium + titanium-palladium alloy (corrosion-resistant modified). Their core advantages are: lightweight, high strength, superior corrosion resistance, high temperature resistance, and non-magnetic properties. The comparison between the Chinese national standard (GB/T 14845) and the American standard (ASTM B265) is as follows:

Grade	National Standard	American Standard	Core Advantages	Typical Media/Operating Conditions
Pure Titanium	TA1	Gr.1	Excellent formability, extremely soft, seawater resistant	Thin plate stamping, seawater, low salt
Pure Titanium	TA2	Gr.2	Optimal overall performance, versatile	Standard plates for plate heat exchangers, chlor-alkali, power plants
Titanium Palladium	TA9	Gr.7	Super strong anti-crack, resistant to reducing acids	High temperature Cl⁻, hydrochloric acid, cracks, PTA
Titanium Palladium	TA10	Gr.11	Anti-crack, high cost-performance ratio	Medium temperature Cl⁻, dilute acids, chemical industry

I. Chemical / Petrochemical / Environmental Protection (Most Mainstream)
Corrosive Gas / Liquid Waste Heat Recovery Radiators
Acid Mist, Wet Chlorine, Sulfur-Containing Flue Gas Cooling Plates
Desulfurization and Denitrification (FGD) System Heat Exchangers
Pharmaceutical, Fine Chemical Cleanroom, Acid and Alkali Resistant Radiators
High-Salt, High-Temperature Process Medium Plate Heat Exchangers
Applicable Grades: TA2, TA9, TA10
II. Marine Engineering / Shipbuilding / Seawater Environment
Ship Engine Room Radiators, Hydraulic System Radiators
Seawater Cooling System Titanium Heat Exchangers, Condenser Plates
Offshore Platforms, Offshore Wind Power Salt Spray Resistant Heat Dissipation Modules
Submersible / Underwater Equipment Seawater Corrosion Resistant Radiators
Features: Chloride Ion Resistant, Rust-Free, Extremely Long Service Life
Applicable Grades: TA2, TA10
III. Aviation / Aerospace / Military Industry:

External heat sinks for aircraft engines, fuel system radiators;

lightweight, high-temperature resistant heat sinks for drones and missiles;

titanium alloy heat sink substrates for airborne radar and electronic equipment;

vibration-resistant and corrosion-resistant heat sinks for military vehicles and ship electronic compartments.

Advantages: High specific strength, lightweight, high temperature resistance, fatigue resistance.

Applicable grades: TC4 (Ti-6Al-4V), TA2.

IV. New Energy / Electricity / Nuclear Power

Heat sinks for nuclear power seawater cooling systems, spent fuel pool heat dissipation;

hydrogen energy equipment hydrogen-resistant, explosion-proof, non-magnetic heat sinks;

high-temperature resistant and corrosion-resistant heat sinks for photovoltaic / energy storage systems;

heat sinks for thermal power / waste incineration flue gas waste heat recovery.

Applicable grades: TA2, TA9, TA10.

V. Medical Equipment:

Non-magnetic heat sinks for medical imaging equipment (CT/MRI);

disinfection-resistant and corrosion-resistant heat sinks for surgical instruments and high-frequency equipment;

biocompatible heat dissipation structural components for implantable devices.

Features: Non-magnetic, disinfection-resistant, biocompatible.

Applicable grades: TA1, TA2, TA9.

VI. High-end Electronics / Specialty Industrial Applications:

High-temperature heat sinks for vacuum equipment and semiconductor equipment;

Acid mist corrosion resistant heat sinks for electroplating and pickling workshops;

High-stability heat dissipation substrates for high-end laser and radio frequency equipment;

Salt spray resistant heat sinks for outdoor base stations and coastal communication cabinets.

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
