Ti6al4v Plate Sheet

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: Gr5 TC4
Standard: ASTM B265
Thickness: 0.5mm 1mm 2mm 3mm 4mm Or As Per Customer's Request
Processing technology: cold rolling/hot rolling
Advantages: high strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

Ti6al4v Plate Sheet Specification

Titanium alloy has high strength, low density, good mechanical properties, corrosion resistance, high stability and other functions, so titanium alloy can be used in aircraft engine parts, rockets, missile flight parts, etc. In addition, titanium and titanium alloy can be used in industry, construction, sports equipment, tableware, outdoor products, etc. The high-quality performance of titanium alloy has made titanium products popular.

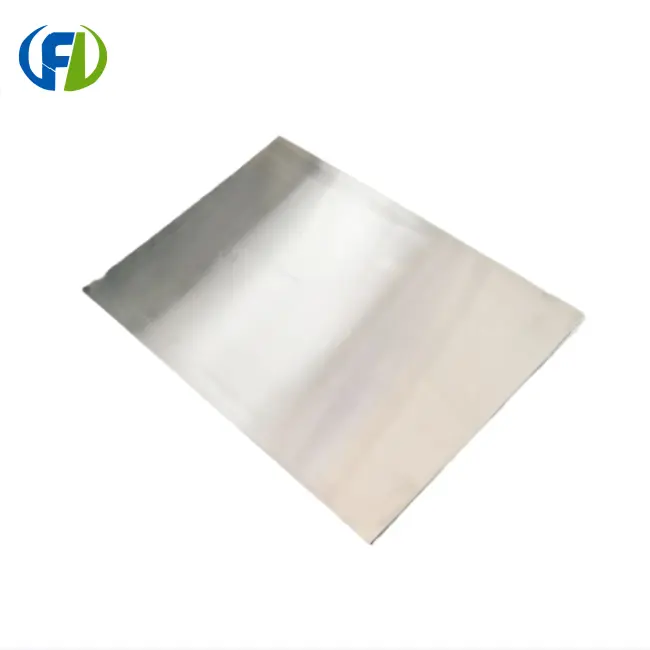

Ti6al4v Plate Sheet Picture display

Ti6al4v Plate Sheet features

Ti6al4v Plate Sheet is an oxide film on the surface, which is equivalent to a good durable abrasion-resistant hair release agent. The use of titanium seed plate saves the release agent and makes the electrode plate easy to peel off. The board is half lighter than a copper seed board.

Compared with ordinary product on the market, our Grade 5 titanium sheet price has the advantage of high strength, low density, good mechanical properties, corrosion resistance, high stability and other effects, thus to ensure longer service life for use.

	Cold Rolling	Hot Rolling
Thickness	0.3mm-4.0mm	4.1mm-60mm
Width	≤1000mm	≤1000mm
Length	≤2000mm	≤2000mm

Chemical Requirements

	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr 5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr 7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr 9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Ti6al4v Plate Sheet Mechanical Properties

Grade	Mechanical Properties (>%)
	Tensile Strengh (min)		Yield Strengh (0.2% offset)				Elongation (min %)
	Ksi	Mpa	Min		Max
	Ksi	Mpa	Ksi	Mpa	Ksi	Mpa
Gr1	35	240	20	170	45	310	240
Gr2	50	345	40	275	65	450	20
Gr3	65	450	55	380	80	550	18
Gr4	80	550	70	483	95	650	15
Gr5	130	895	120	828	-	-	10c
Gr7	50	345	40	275	65	450	20
Gr9	90	620	70	483	-	-	15D
Gr12	70	483	50	345	-	-	180
