Titanium Sheet Gr1

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: Gr1 TA1
Standard: ASTM B265
Thickness: 0.5mm 1mm 2mm 3mm 4mm Or As Per Customer's Request
Processing technology: cold rolling/hot rolling
Advantages: high strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

Titanium Sheet Gr1 specification

Titanium industry is an emerging high-tech industry, titanium sheet Gr1 widely used in aviation, aerospace, military, chemical, pharmaceutical, medical, and mechanical manufacturing industries.Titanium has a strong vitality and is called the third metal after iron and aluminum.

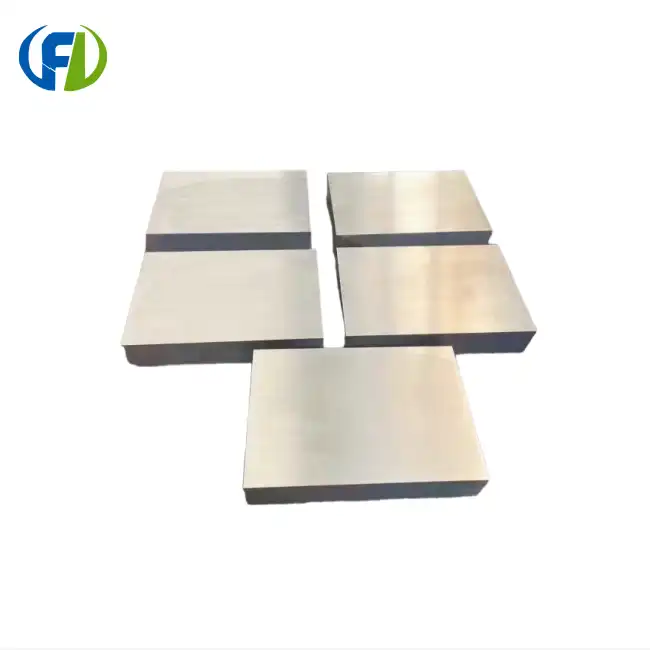

Titanium Sheet Gr1 Picture display

Grade	Grade1/TA1, Grade/TA2
Product Type	Unalloyed Titanium Plate/Sheet/ Foil
Dimension	T(0.1-30mm)W(1000MM)L(2000mm)
Technique	Cold Rolled & Hot Rolled
Status	Annealed
Surface	Pickling,Polishing

Titanium Sheet Gr1 Chemical Requirements

	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr 1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal

Mechanical Properties

Grade	Mechanical Properties (>%)
	Tensile Strengh (min)		Yield Strengh (0.2% offset)				Elongation (min %)
	Ksi	Mpa	Min		Max
	Ksi	Mpa	Ksi	Mpa	Ksi	Mpa
Gr1	35	240	20	170	45	310	240
Gr2	50	345	40	275	65	450	20
Gr5	130	895	120	828	-	-	10c
Gr7	50	345	40	275	65	450	20

FAQ

Q: What is the advantage of your company?

A: We have many professional technicians. We have more competitive price and better after-sales service than other companies.

Q：Can you provide samples? MOQ?

A：Yes, we can provide you with free samples. MOQ: 5 kg.

Q：Do you accept customization?

A：Yes, we can process according to your unit weight or drawing.

Q：Do you inspect the finished products?

A：Yes, every product will be inspected by our QC before shipment.

Our Packaging

Package

About us

Baoji Freelong New Material Technology Development Co., Ltd loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.

Our Factory
