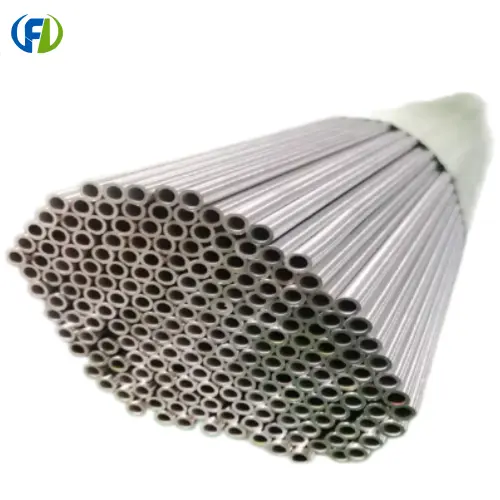

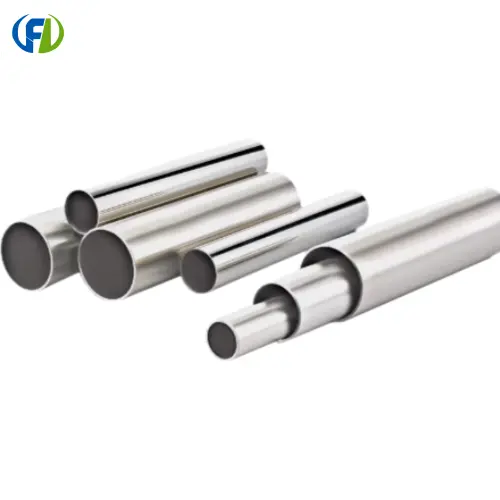

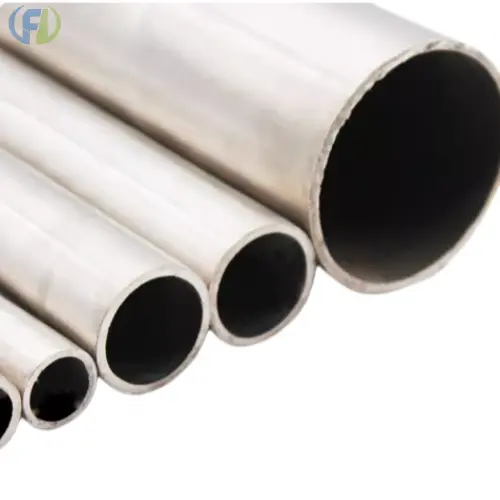

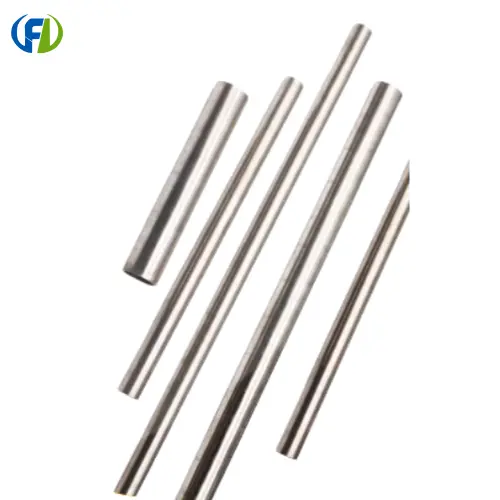

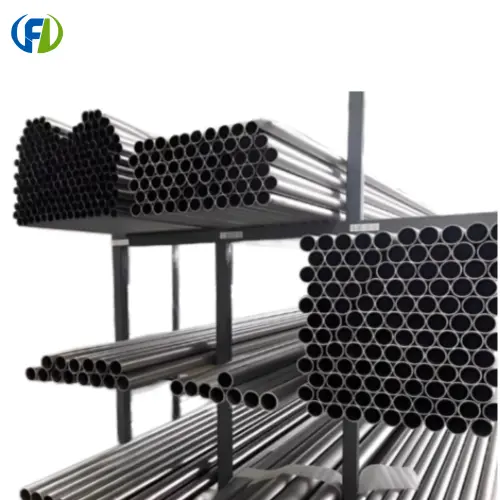

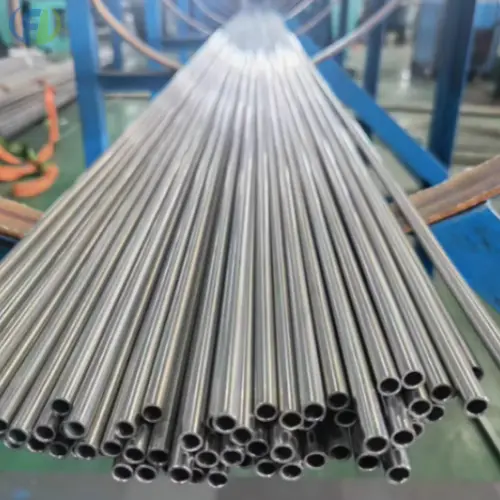

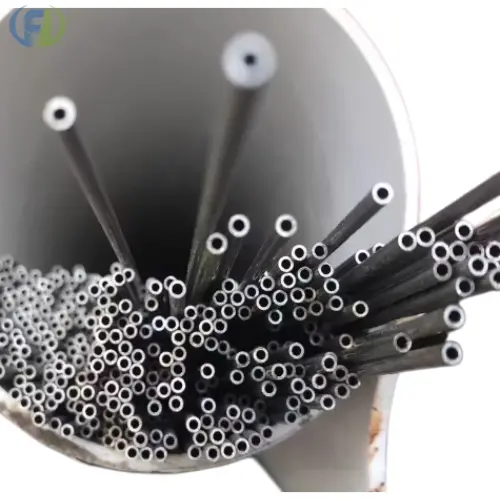

Pure titanium seamless tube

Seamless titanium tubes are seamless metal pipes made from industrial pure titanium (TA1 and TA2, corresponding to GR1 and GR2 in American standards) through hot extrusion, cold rolling, and cold drawing processes. They feature a smooth surface, dense structure, high dimensional accuracy, and no weld defects, making them a core material for corrosion-resistant and lightweight chemical applications.

Common grades: TA1, TA2 (GR1, GR2)
Standards: ASTM B338, ASTM B861
Production process: Hot extrusion → Cold rolling/cold drawing → Annealing → Finishing
Outer diameter range: φ3～φ200mm
Wall thickness range: 0.3～30mm (standard 0.5～10mm)
Supply condition: Annealed (M), Cold-worked (Y)
Surface condition: Pickled surface, Polished surface

II. Main performance characteristics

Excellent corrosion resistance
Resistant to seawater, chloride ions, organic acids, dilute acids and alkalis, and wet chlorine gas corrosion. Extremely stable in oxidizing and neutral media, with a service life far exceeding that of stainless steel. Low density and moderate strength: With a density of only about 4.51 g/cm³, it has a high specific strength, facilitating installation and reducing equipment weight.

Excellent heat and low temperature resistance: It can be used continuously at temperatures ranging from -250℃ to 300℃, without oxidation at high temperatures or brittleness at low temperatures.

Non-magnetic and biocompatible: It is non-magnetic, harmless to humans, and suitable for medical and marine environments.

Excellent welding and processing performance: It is easy to weld, bend, flare, and flange, making it suitable for equipment manufacturing and on-site installation.

III. Typical Application Areas

1. Chemical and Petrochemical Industries
Transporting organic acids, salt solutions, alkaline media, and chloride-containing wastewater
Heat exchangers, condensers, reactor connections, absorption tower pipelines
Transporting corrosive media such as chlor-alkali, soda ash, fertilizers, and fine chemicals

2. Seawater Desalination and Marine Engineering
Seawater cooling pipes, seawater desalination unit pipelines
Seawater pipelines on ships and offshore platforms, condensation systems

3. Power and Energy Industries
Titanium tubes for condensers in thermal power plants and nuclear power plants
Corrosion-resistant pipelines for desulfurization and denitrification systems
Geothermal and waste heat recovery system pipelines

4. Metallurgy and Electroplating Industries
Titanium pipelines for electroplating production lines, anode rod sleeves
Hydrometallurgy, rare earth extraction, and electrolyte transportation pipelines

5. Pharmaceutical and Food Industries
High-purity media transportation pipelines for pharmaceutical equipment
Sanitary pipelines for food brewing and beverage equipment

6. Environmental Protection and Water Treatment
Sewage treatment, saline wastewater, and acidic wastewater treatment pipelines
Leachate treatment, and supporting pipelines for waste gas scrubbing towers

7. Vacuum, Electroplating, and Special Equipment
Vacuum Equipment, Coating Machine Titanium Piping
Aerospace and Scientific Research Piping
IV. Applicable Operating Conditions
Media: Seawater, chloride ions, organic acids, alkalis, wet chlorine, nitrates, etc.
Environment: Normal to medium-high pressure, low to medium temperature, highly corrosive conditions
Incompatible with: High-temperature concentrated hydrochloric acid, hydrofluoric acid, dry chlorine, high-temperature fluoride systems

​​​​​​​

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!
