Titanium Metal Tube (Gr1/Gr2/Gr5) - Seamless & Welded

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: GR1/GR2/GR5
Diameter: 6–114mm, wall: 0.5–10mm
Length: Customizable from 500mm to 6000mm
Surface: Polished, pickled, or bright finish.
Standard: ASTM B337, ASTM B338, ASTM B861
Applications: Aerospace, medical, and industrial use.
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case
Product Description

Premium Titanium Metal Tube - Superior Quality & Performance

Product Introduction

Welcome to Baoji Freelong's premium titanium metal tube collection. Our titanium metal tube products are engineered for excellence, manufactured in Baoji City - China's renowned Titanium Valley. We specialize in producing high-grade pure titanium GR1 and GR2 tubes with exceptional mechanical properties and superior corrosion resistance. Each titanium metal tube undergoes rigorous quality control to ensure it meets your exact specifications and international standards.

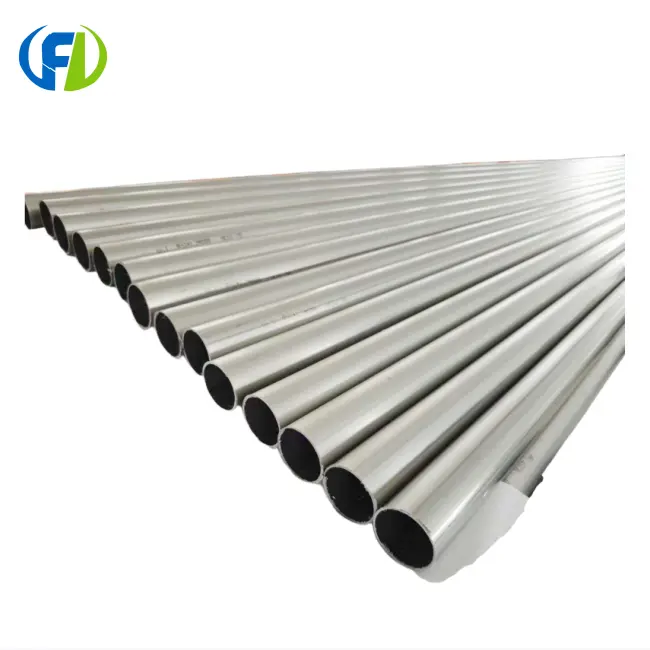

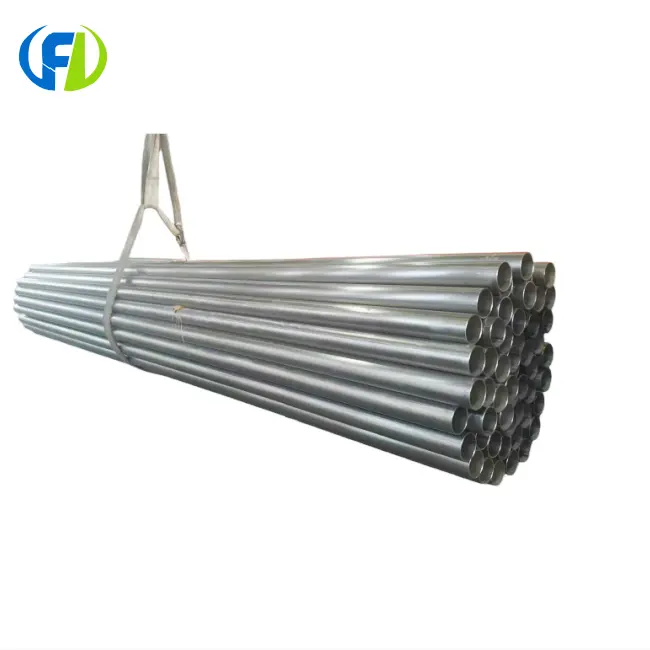

Titanium Metal Tube Gr2 ASTM B337 FRL Metal Grade 2 titanium tube polished surface FRL Metal Titanium tube end view quality inspection FRL Metal

Technical Specifications

Our titanium tubes feature impressive technical specifications:

Material Grade: Pure Titanium GR1/GR2  Titanium alloyGR5

Density: 4.51 g/cm³

Diameter Range: 6-114mm

Wall Thickness: 0.5-10mm

Length: Customizable up to 6000mm

Surface Finish: Bright annealed, pickled, or polished

Temperature Range: -253°C to 600°C

Chemical composition table for Gr1, Gr2, and Gr5.

Element Gr1 Gr2 Gr5 (Ti-6Al-4V)
C ≤0.05 ≤0.05 ≤0.08
Fe ≤0.20 ≤0.30 ≤0.50
O ≤0.16 ≤0.20 ≤0.20
N ≤0.03 ≤0.03 ≤0.05
H ≤0.015 ≤0.015 ≤0.015
Al — — 5.5-6.75
V — — 3.5-4.5
Ti balance balance balance

Comparison table: Gr1 vs. Gr2 vs. Gr5

Grade Key Features Typical Applications
Gr1 Highest ductility, best corrosion resistance Chemical processing, marine hardware, medical implants
Gr2 Balanced strength & formability, industry standard Heat exchangers, condensers, seawater piping
Gr5 (Ti-6Al-4V) High strength, heat resistant, aerospace grade Aerospace engine parts, high-performance structural components

Key Features and Benefits

Outstanding Corrosion Resistance

Your titanium metal tube will withstand harsh environments including seawater, acids, and alkaline solutions without degradation.

Exceptional Strength-to-Weight Ratio

You get maximum structural integrity while maintaining lightweight properties for your applications.

Excellent Formability

Our tubes can be easily bent, welded, and machined to meet your specific design requirements.

Biocompatibility

Perfect for medical applications where human tissue contact is required.

Long Service Life

Your investment delivers decades of reliable performance with minimal maintenance.

Applications and Industries Served

Aerospace Industry

  • Aircraft hydraulic systems
  • Engine components
  • Structural frameworks

Medical Sector

  • Surgical instruments
  • Implantable devices
  • Medical equipment tubing

Chemical Processing

  • Heat exchangers
  • Reactor vessels
  • Pipeline systems

Marine Applications

  • Seawater cooling systems
  • Offshore equipment
  • Submarine components

Quality Control and Testing

Your satisfaction is our priority. We conduct comprehensive testing including:

  • Dimensional accuracy verification
  • Tensile strength testing
  • Corrosion resistance evaluation
  • Non-destructive testing (NDT)
  • Chemical composition analysis
  • Surface quality inspection

Why Choose Us

  1. Equipment Advantages — We have advanced seamless tube mills, pickling lines, polishing equipment, and testing instruments to ensure precise manufacturing and surface quality.
  2. Product Advantages — Large inventory of Gr2 seamless tubes in various sizes, can provide samples, and customize per your specifications.
  3. Price Advantages — Direct factory supply, no middlemen, competitive pricing with consistent quality.
  4. Quality Advantages — ISO 9001:2015 certified, every batch comes with Mill Test Certificate (MTC) and third-party inspection is welcome.
  5. Service Advantages — Professional pre-sales consultation, responsive after-sales support, and on-time delivery guarantee.

FAQs

Q1: What is the difference between Gr1 and Gr2 titanium tube?
A: Gr1 has the highest ductility and corrosion resistance but lower strength. Gr2 contains slightly more iron (0.2-0.3%) which increases strength while maintaining good corrosion resistance. Gr2 is the most widely used grade for general engineering applications.

Q2: What is Gr5 titanium tube?
A: Gr5 (Ti-6Al-4V, ) is a titanium alloy containing 6% aluminum and 4% vanadium. It is the most widely used titanium alloy in aerospace applications due to its high strength-to-weight ratio and  fatigue resistance.

Q3: What is the difference between seamless and welded titanium tubes?
A: Seamless titanium tubes are formed by piercing a solid billet, offering better concentricity and pressure rating. Welded titanium tubes are formed by rolling and welding a strip, offering tighter dimensional tolerances and longer continuous lengths at lower cost.

Q4: What standards do your titanium tubes comply with?
A: Our titanium tubes are manufactured per ASTM B337 (seamless and welded), ASTM B338 (seamless pipe), and ASTM B861 (medical applications). We can also meet EN 10210/10216 and other international standards upon request.

Q5: What surface finishes are available?
A: We offer polished, pickled, and bright annealed surface finishes for our titanium tubes. Custom surface treatments are also available upon request.

Contact Information

Ready to discuss your titanium tube requirements? Our team is here to help.

Email: jenny@bjfreelong.com

WhatsApp: +86 13571190943

Contact us today for detailed quotes, technical specifications, or to discuss your custom requirements. We're committed to delivering the perfect titanium metal tube solution for your application.

---

Baoji Freelong New Material Technology Development Co., Ltd. - Your trusted partner for premium titanium solutions since our establishment in China's Titanium Valley.
