Vehicle Manufacturing Titanium Tube

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: Gr1 Gr2 Gr3 Gr5 Gr7 Gr12
Standard: ASTM B862 / ASTM B861 / ASTM B338
Advantages: High strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

Vehicle Manufacturing Titanium Tube Specifications

OD:1mm-300mm

WT: 0.3mm-15.24mm

L: more than 6000mm

Standard: ASTM B338/ASTM B861

Surface Treatment:polished or according to customer's requirement.

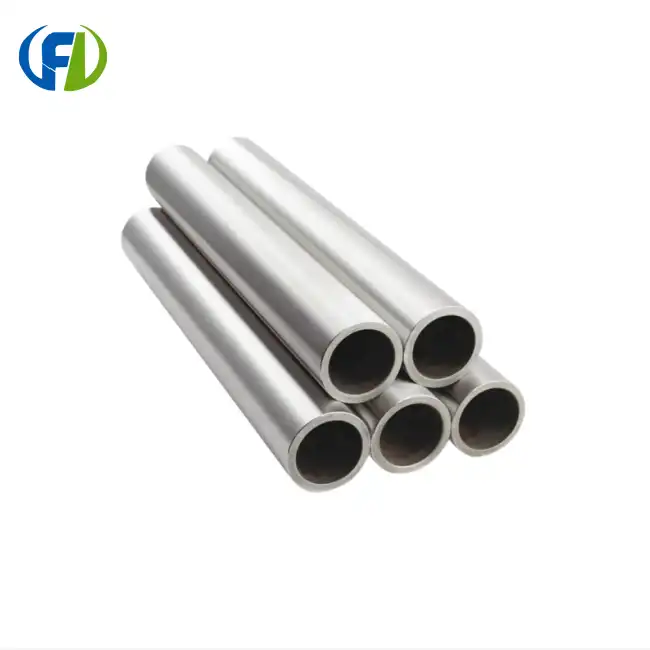

Vehicle Manufacturing Titanium Tube Picture display

Customized Vehicle Manufacturing Titanium Tube

Vehicle Manufacturing Titanium Tube chemical composition

Grade
Grade	Ti	Al	V	Fe	C	N	H	O	Other Max
Grade1	Balance	-	-	0.20	0.8	0.03	0.015	0.18	0.40
Grade2	Balance	-	-	0.30	0.8	0.03	0.015	0.25	0.40
Grade3	Balance	-	-	0.30	0.8	0.05	0.015	0.35	0.40
Grade4	Balance	-	-	0.50	0.8	0.05	0.015	0.40	0.40
Grade5	Balance	5.5-6.75	3.5-4.5	0.40	0.8	0.05	0.015	0.50	0.40
Grade7	Balance	-	-	0.03	0.8	0.03	0.015	0.25	0.40
Grade9	Balance	-	-	0.25	0.8	0.03	0.015	0.15	0.40

Allowable Deviation of Outer Diameter (mm)

Outer Diameter	Allowable Deviation	Outer Diameter	Allowable Deviation
3~10	±0.15	〉50~80	±0.65
〉10~30	±0.15	〉80~100	±0.75
〉30~50	±0.15	〉100	±0.85

Curvature of Titanium Tube

Outer Diameter (mm)	Curvature (mm/m, not more than)
≤30	3
>30~110	4

Ti tube other Application

1.Heat exchangers and condensers

2.All kinds of corrosive fluid transmission pipeline system.

3.Titanium bicycle tube,automobile exhaust pipe.

4.Offshore aquaculture.

5.U type heat exchanger coil pipe ;Condenser; petroleum pipeline ; Sea farming

6.Evaporimeter;Fluid Transporation Piping etc.

7.Chlorine alkali, spaceflight, desalination , pure alkali,vacuum salt manufacturing, aviation spaceflight,, nuclear power, petrifactionindustry, medication sports equipments

grade 1 can be used in the deep drawing parts for its good elongation and excellent corrosion-resistance.

grade 2 is used the most widely in the commercially pure titanium.

grade 3 is almost only used in pressure vessel.

grade 4 can be use in some fittings parts and fastening pieces, but for complex shape need 300 degree celsius to form.

Alloy grade 5, Ti-6Al-4V, is the most widely used in the titanium alloys because of its comprehensive mechanical, physical and chemical properties.

Mechanical property of the titanium tube in the room temperature

Model Number	Status	Tensile Strength /Mpa	Stretch of Specified Residual Force/Mpa	Elongation/% (L0=50mm)
GR1	M	280-420	more than 170	more than 24
GR2		370-530	more than 250	more than 20
GR3		440-620	more than 320	more than 18
GR7		370-530	more than 250	more than 20
GR12		more than 440	__	more than 18
