Coiled Titanium Wire

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Grade: GR1、GR2、GR5、GR7、GR9、GR12
Density: 4.51g/cm3
Diameter: 0.1-3mm
Surface: Bright
Standard: ASTM B863, AWS 5.16, etc
Certification: ISO9001
Delivery Time:5~7days
Payment Terms:T/T
Packaging Details:Plywood case

Send Inquiry

Download

Product Description

Performance of coiled titanium wire

Coiled titanium wire is a silver-white metal with many excellent properties. Titanium has a density of 4.54g/cm3, which is 43% lighter than steel and slightly heavier than the prestigious light metal magnesium. The mechanical strength is similar to that of steel, two times greater than that of aluminum and five times greater than that of magnesium. Titanium is resistant to high temperature and has a melting point of 1942K, which is nearly 1000K higher than gold and nearly 500K higher than steel.

Coiled titanium wire standard

Coiled Titanium Wire Standards: ASTM B863, ASTM F136/F67, AWS A5.16 Grades: Gr1, Gr2, Gr3, Gr5, Gr7, Gr9, Gr12, etc.

Diameter: 0.5-6.0mm MPa: 280-440 Straight wire or on-disk wire Test report: provide Baoti Center's psychological test report or Northwest Nonferrous Metals Research Institute test report

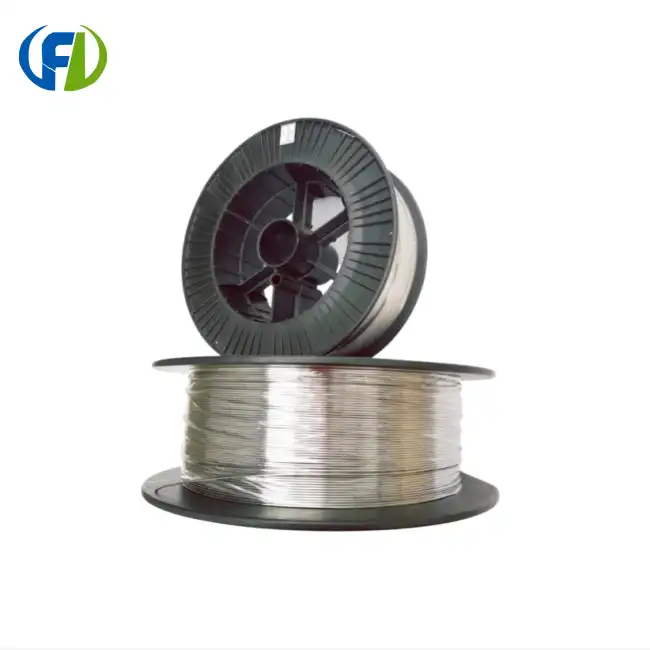

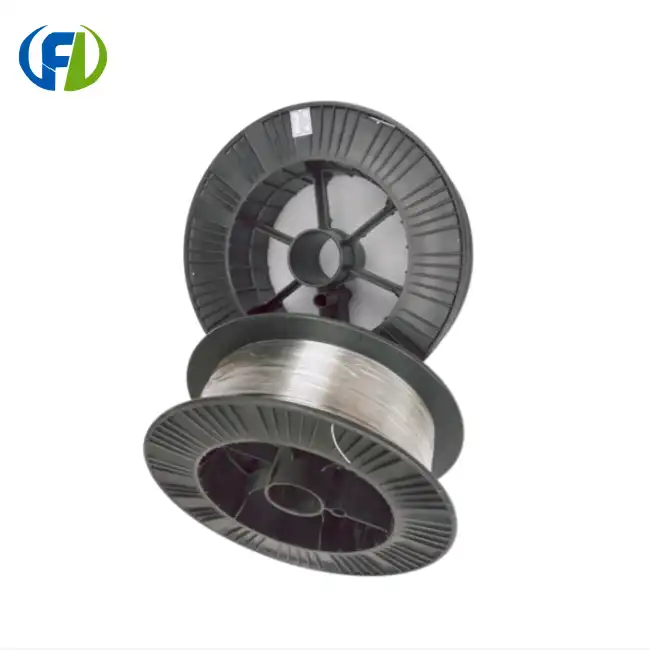

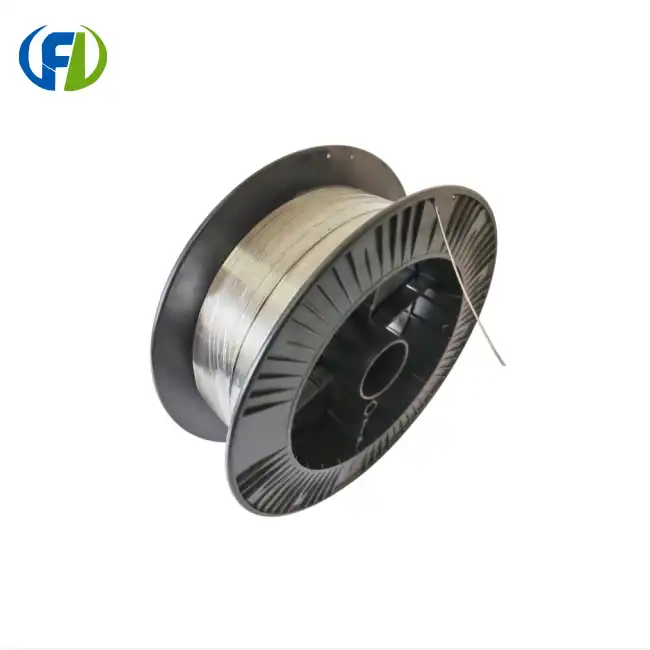

Coiled Titanium Wire picture display

Coiled Titanium Wire Details

Item	Coiled Titanium Wire
Material	Pure Titanium and Titanium Alloy
Grade	Gr.1, Gr.2, Gr.3, Gr.4, Gr.5, Gr.7, Gr.9, Gr.12
Size	Straight: Dia.: 1.0mm-5.0mm (0.04"-0.02", tolerance: +/-0.05mm, +/-0.002") 3000mm (118") max length Coiled: Dia.: 0.5mm-5.0mm (0.02", tolerance: +/-0.05mm, +/-0.002") Spool diameter: around 300mm (12")
Standard	ASTM B863, AWS 5.16, etc.
Surface	Black, Pickled, Polished (for dia. >1mm)
Shape	Straight, Coiled, Spool wire
Application	1. Chemical industry 2. Petrochemical industry 3. Machining field, Automobile field 4. Desalination of sea water 5. Textile printing and dyeing, etc.

chemical composition and Physical properties

Chemical composition
Material		Impurities content, Not more than,%
		Ti		Fe		C	N	H		O	Residual elements,
											single		total
Gr1		allowance		0.20		0.08	0.03	0.010		0.18	0.10		0.40
Gr2		allowance		0.30		0.08	0.03	0.010		0.25	0.10		0.40
Gr3		allowance		0.30		0.08	0.05	0.010		0.35	0.10		0.40
Gr4		allowance		0.50		0.08	0.05	0.010		0.40	0.10		0.40
Physical properties
Material	Specifications mm		State		Room-temperature Mechanical properties, No less than,%
					σb Mpa(ksi)				σ0.2 Mpa(ksi)			δ %		ψ %
Gr1	3.2-6.35		Annealing (M)		240				170			24		30
Gr2					345				275			20		30
Gr3					450				380			18		30
Gr4					550				483			15		25
Gr1	1.6-3.2				240				170			15		---
Gr2					345				275			12		---
Gr3					450				330			10		---
Gr4					550				483			8		---
Gr1	1.0-1.6				240				---			12		---
Gr2					345				---			10		---
Gr3					450				---			8		---
Gr4					550				---			6		---

Titanium Wires Dimension Tolerance

Diameter	0.1-0.3mm	0.3-0.8mm	0.8-2.0mm	2.0-6.0mm
Tolerance	+/- 0.025	+/-0.04	+/-0.05	+/-0.10
Length	200-500mm	500-1000mm	1000-2000mm	&2000mm
Tolerance	+/-1.0	+/-1.5	+/-2.0	+/-2.5

Wire Further Processing

Coiled titanium wire	A. Cut to length Wire
	B. Flat Wire
	C. Square and Shaped Wire
	D. Rewinding and spooling
	E. Polishing and cleaning

Our advantage

1. Equipment Advantages

There are planing machine, milling machine, annealing furnace, laser cutting machine, bending machine, leveling machine, punching machine and forging hammer, etc.

2. The Product Advantages

Large quantity of spot stock, can provide samples, can be processed and customized according to the drawings.

3. Price Advantages

Source factory production, no middlemen, factory price delivery.

4. Quality Advantages

Provide material report, if customer needs, can provide third party test report.

5.And Service Advantages

Professional customer service throughout the service for you, if you encounter product quality problems can be returned free of charge.

FAQ

1:Do you have the titanium Wire in-stock?

Yes, we have a lot of size of grade 2 grade 5 grade 9 titanium wire in-stock, i can show you in any time.

2:Did you have a rich experience in production about titanium alloy?

We have 10 years experience to produce and develop the content of ingredients.

3:How can I trust your production?

We can supply The Third Test Report.

4: How about the delivery time?

If no stock, the delivery time need 7~15work days.
