Titanium Spool Wire

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Grade: GR1、GR2、GR5、GR7、GR9、GR12
Density: 4.51g/cm3
Diameter: 0.1-3mm
Surface: Bright
Standard:STM B863, ASTM F136/F67, AWS A5.16
Certification: ISO9001
Delivery Time:5~7days
Payment Terms:T/T
Packaging Details:Plywood case

Send Inquiry

Download

Product Description

Titanium Spool Specifications

The standards for titanium in titanium spools are ASTM B863, ASTM F136/F67, AWS A5.16. The grades are: Gr1, Gr2, Gr3, Gr5, Gr7, Gr9, Gr12 and so on. The diameter is generally 0.5-6.0mm, MPa: 280-440. The test report of straight wire or coiled wire is to provide the Baoti Center's psychological test report or the test report of the Northwest Nonferrous Metals Research Institute.

Application of titanium spool

Titanium spools are generally used in welding materials, medical materials, industry, chemistry, electrolysis, but also in spring, welding, medical, aerospace and other fields.

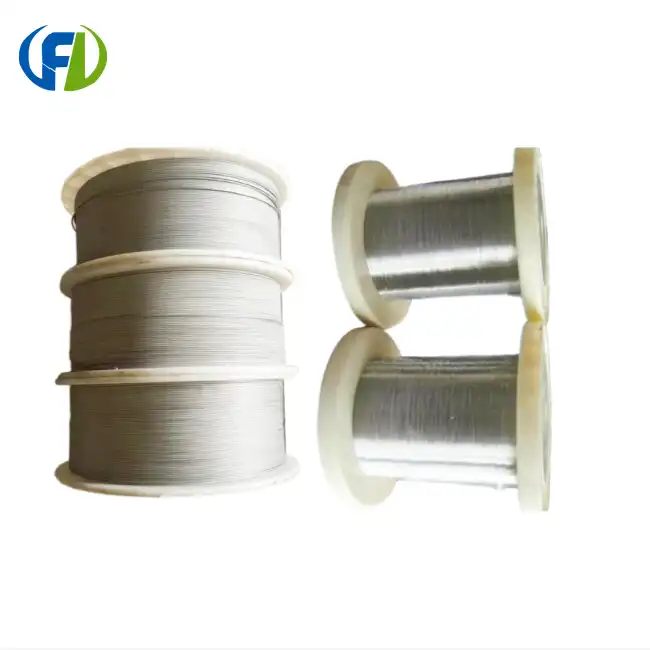

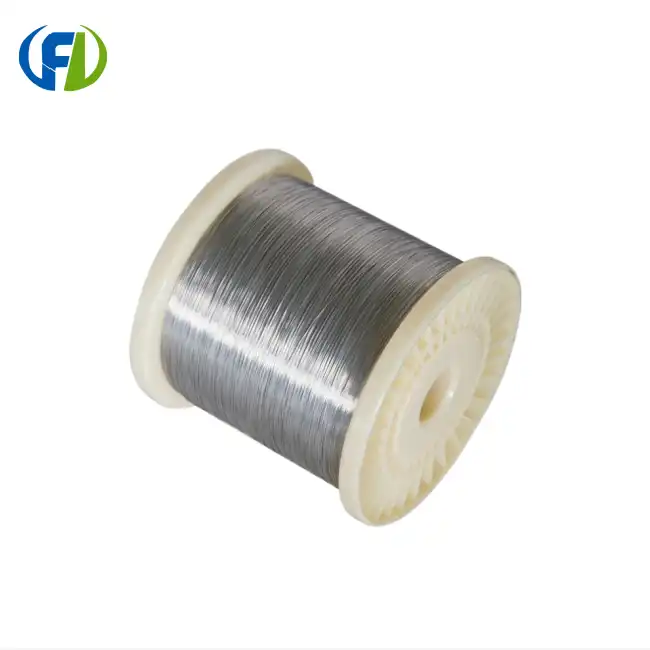

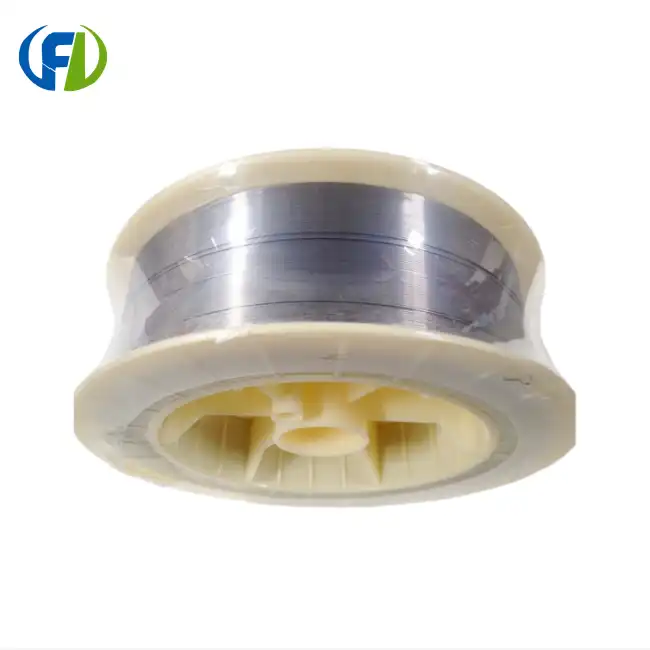

Titanium Spool Wire picture display

Titanium Spool Wire chemical composition and Physical properties

Welding Products List

CHEMICAL SPECIFICATIONS									MECHANICAL Property
UNSNo	ASTM B348	C	O	N	H	I	Al	V	Tensile Strength	%EI.
R50100	GR 1	0.03	0.03-0.10	0.012	0.005	0.08			180	37
R50120	GR 2	0.03	0.08-0.16	0.015	0.008	0.12			240	28
R50125	GR 3	0.03	0.13-0.20	0.02	0.008	0.16			340	26
R50130	GR 4	0.03	0.18-0.32	0.025	0.008	0.25			550	23
R56400	GR 5	0.03	0.12-0.20	0.030	0.015	0.22	5.5-6.7	3.5-4.5	1000	18
R52401	GR 7	0.03	0.08-0.16	0.015	0.008	0.12			340
R56320	GR 9	0.03	0.08-0.16	0.020	0.008	0.25			615	17
R56408	GR5-ELI	0.03	0.03-0.11	0.012	0.005	0.20	5.5-6.5	3.5-4.5	1000	18

Chemical composition
Material		Impurities content, Not more than,%
		Ti		Fe		C	N	H		O	Residual elements,
											single		total
Gr1		allowance		0.20		0.08	0.03	0.010		0.18	0.10		0.40
Gr2		allowance		0.30		0.08	0.03	0.010		0.25	0.10		0.40
Gr3		allowance		0.30		0.08	0.05	0.010		0.35	0.10		0.40
Gr4		allowance		0.50		0.08	0.05	0.010		0.40	0.10		0.40
Physical properties
Material	Specifications mm		State		Room-temperature Mechanical properties, No less than,%
					σb Mpa(ksi)				σ0.2 Mpa(ksi)			δ %		ψ %
Gr1	3.2-6.35		Annealing (M)		240				170			24		30
Gr2					345				275			20		30
Gr3					450				380			18		30
Gr4					550				483			15		25
Gr1	1.6-3.2				240				170			15		---
Gr2					345				275			12		---
Gr3					450				330			10		---
Gr4					550				483			8		---
Gr1	1.0-1.6				240				---			12		---
Gr2					345				---			10		---
Gr3					450				---			8		---
Gr4					550				---			6		---

Titanium Wires Dimension Tolerance

Diameter	0.1-0.3mm	0.3-0.8mm	0.8-2.0mm	2.0-6.0mm
Tolerance	+/- 0.025	+/-0.04	+/-0.05	+/-0.10
Length	200-500mm	500-1000mm	1000-2000mm	&2000mm
Tolerance	+/-1.0	+/-1.5	+/-2.0	+/-2.5

Wire Further Processing

	A. Cut to length Wire
	B. Flat Wire
	C. Square and Shaped Wire
	D. Rewinding and spooling
	E. Polishing and cleaning

Material Test Certificate supplied

Machanical Property of Titanium Wire in Room Temperature
Grade	Tensile Strength,Mpa(>)	Elongation,%(>)
Grade 1	370	18
Grade 2	440	15
Grade 3	540	15
Grade 5	895	10
