1mm Walled Zirconium Crucible

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51 g/cm³
Minimum Order Quantity: 1pc Shape: can be customized according
Packaging Details:Plywood case
Delivery Time:5~7days
Payment Terms:T/T
Certification: ISO9001
Chemical Composition:Zr ≥ 97%, Hf ≤ 4.5%

Send Inquiry

Download

Product Description

1mm walled zirconium crucible details

1mm walled zirconium crucible is a container made of zirconium metal, which has extremely high corrosion resistance and high temperature resistance. It is widely used in high temperature smelting, chemical reactions and various harsh conditions in the laboratory. The specific advantages of 1mm walled zirconium crucible include:

1. High melting point: Zirconium has a melting point of 1855 degrees Celsius, which enables it to be used at extremely high temperatures without deformation or melting.

2. Corrosion resistance: Zirconium has extremely high corrosion resistance to most acids, alkalis and salt solutions, and is suitable for use in corrosive environments.

3. Chemical stability: Zirconium remains chemically stable at high temperatures and does not react with most molten metals and ceramic materials.

4. Mechanical strength: Zirconium has good mechanical strength and can be used under high temperature and high pressure conditions.

Name	1mm Walled Zirconium Crucible
Material	Zirconium & Zirconium alloy
Grade	Zr702,Zr705,RO60001,RO60901
Purity	≥99.95%
Melting point	about 1855℃ (pure zirconium)
Density	6.51 g/cm³
Type	Low form zirconium crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible.
Capacity	50ml, We can also produce and design these volume 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml etc.
Wall thickness	1mm,2mm,or custom.
Custom	Yes, process as per customer's drawing.
Oxidation resistance	stable in high temperature oxidation environment
Working temperature	recommended below 1700℃.
Corrosion resistance	good stability in strong acid, strong alkali and other chemical reagents.
Thermal shock resistance	good thermal shock resistance, can adapt to rapid cooling and heating.

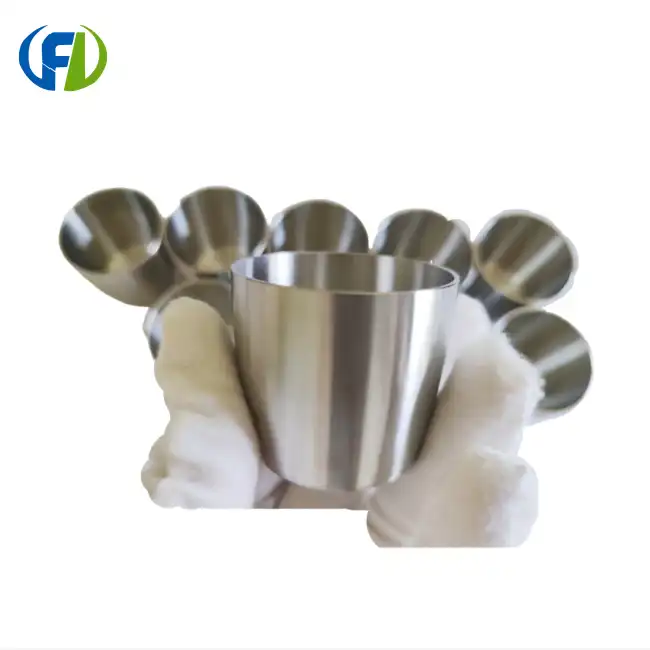

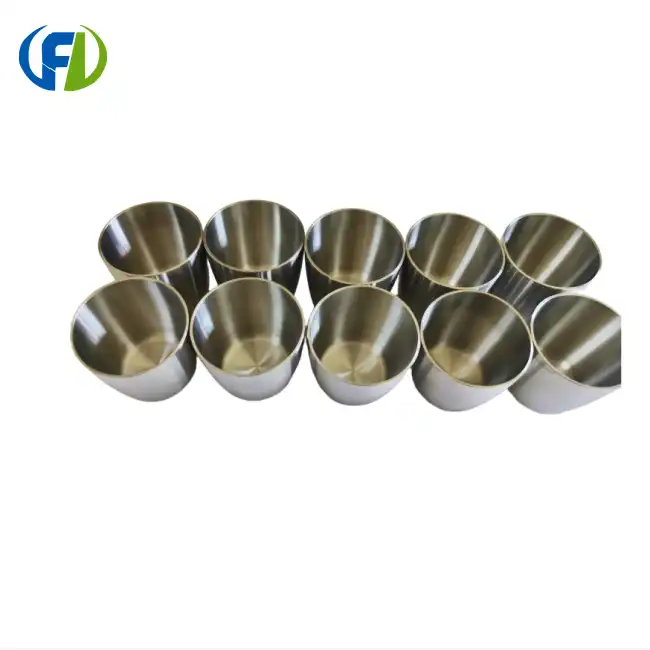

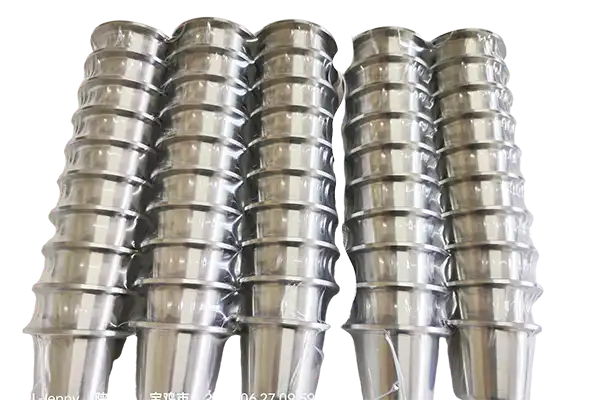

1mm walled zirconium crucible details display picture

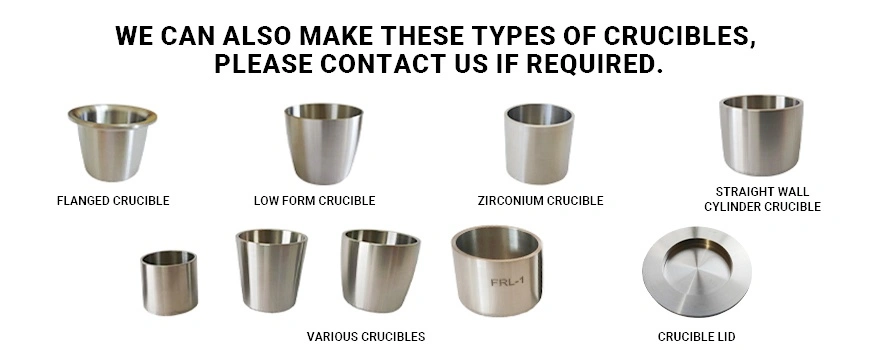

1mm Walled Zirconium Crucible for sale

The Common Size of Zirconium Crucible

Low form Zirconium crucible
Top diameter(mm)	Bottom diameter (mm)	Height (mm)	Wall thickness (mm)	Capacity (ml)
22	18	20	2	3.6ml
26	16	20	2	5.0ml*2mm
30	24	26	2	10ml*2mm
40	26	41	1	30ml*1mm
42	27	42	2	30ml*2mm
42	30	42	1.6	35ml*1.6mm
41	33	42	2	35ml*2mm
43	34	40	1	40ml*1mm
47	40	35	1	45ml*1mm
49	42	36	2	45ml*2mm
48	38	45	3	45ml*3mm
47	40	38.5	1	50ml*1mm
48	40	42	2	50ml*2mm
56	44	50	2	80ml*2mm
AutoFluxer crucible with flanged
48	29	33	2	25ml*2mm
60	36	39	1	50ml*1mm
60	36	43	2	50ml*2mm

1mm Walled Zirconium Crucible Chemical Composition

Grade	Element composition(%)<
Grade	Zr+Hf	Hf	Fe	Fe+Cr	Sn	H	N	C	Nb	O
R60702	99.2	4.5		0.2	/	0.005	0.025	0.05	/	0.16
R60705	95.5	4.5		0.2	/	0.005	0.025	0.05	2.0~3.0	0.18
R60001	/	0.010	0.150	/	0.0050	0.0025	0.0065	0.027	/	/
R60901 (Zr-2.5Nb)	/	0.010	0.150	/	0.0050	0.0025	0.0080	0.027	2.40-2.80	0.09-0.15

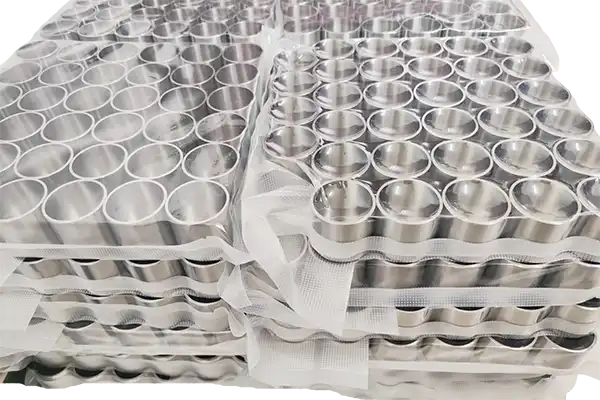

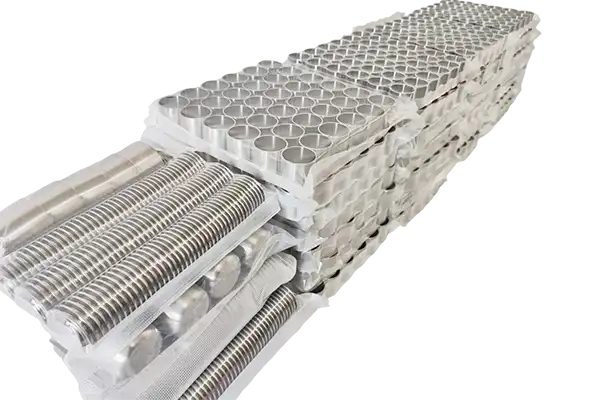

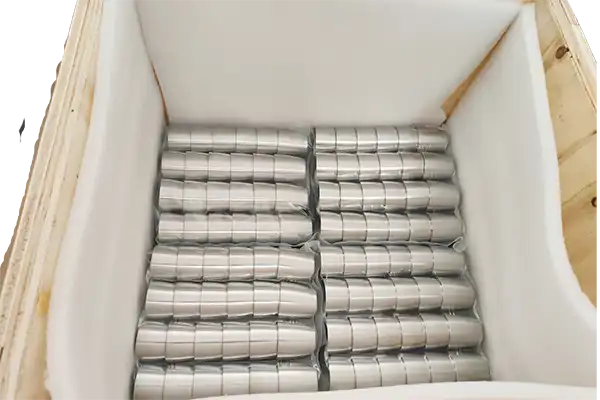

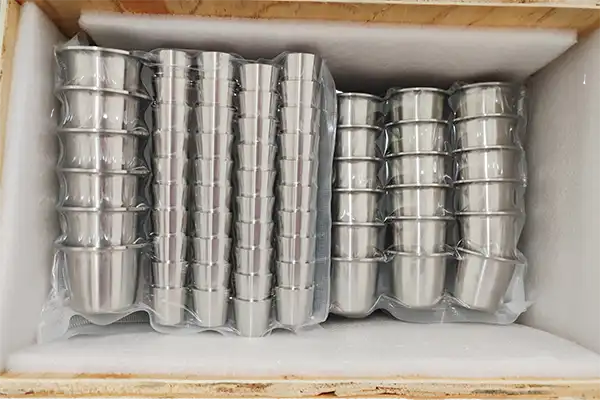

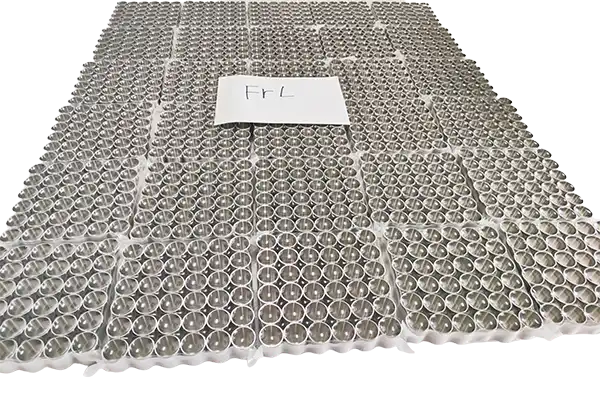

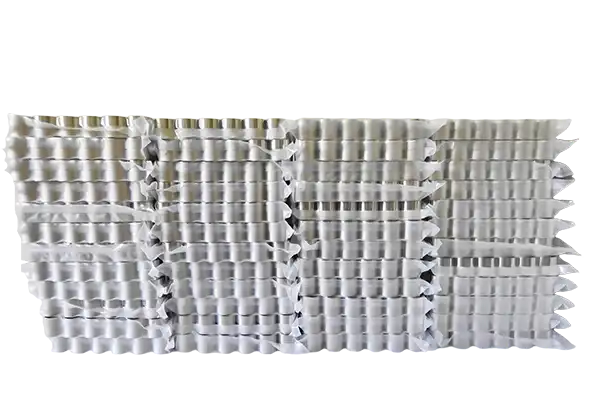

Our Packaging
