High-density Zirconium Crucible

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51 g/cm³
Minimum Order Quantity: 1pc
Shape: can be customized according
Packaging Details:Plywood case
Delivery Time:5~7days
Payment Terms:T/T
Certification: ISO9001

Send Inquiry

Download

Product Description

Application range of high-density zirconium crucible

1. Scientific research laboratories: various high-temperature chemical reactions, high-temperature smelting experiments, etc.
2. Industrial manufacturing: metal smelting, glass production, ceramic manufacturing, electronic material production, etc.
3. Nuclear energy industry: used for high-temperature treatment and processing of nuclear fuel.
4. Aerospace industry: as a high-temperature processing vessel in the research and production of aerospace materials.

Name	50 Ml Zirconium Crucible With Flange
Material	Zirconium & Zirconium alloy
Grade	Zr702,Zr705,RO60001,RO60901
Purity	≥99.95%
Melting point	about 1855℃ (pure zirconium)
Density	6.51 g/cm³
Type	Low form zirconium crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible.
Capacity	50ml, We can also produce and design these volume 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml etc.
Wall thickness	1mm,2mm,or custom.
Custom	Yes, process as per customer's drawing.
Oxidation resistance	stable in high temperature oxidation environment
Working temperature	recommended below 1700℃.
Corrosion resistance	good stability in strong acid, strong alkali and other chemical reagents.
Thermal shock resistance	good thermal shock resistance, can adapt to rapid cooling and heating.
Service life	A crucible with a wall thickness of 2mm has a longer service life than a thin-walled crucible and can be used repeatedly for more than 100 times.
Zirconium crucible use	scientific research laboratories, metallurgical vacuum industry, corrosive materials, chemical industry, as a container.

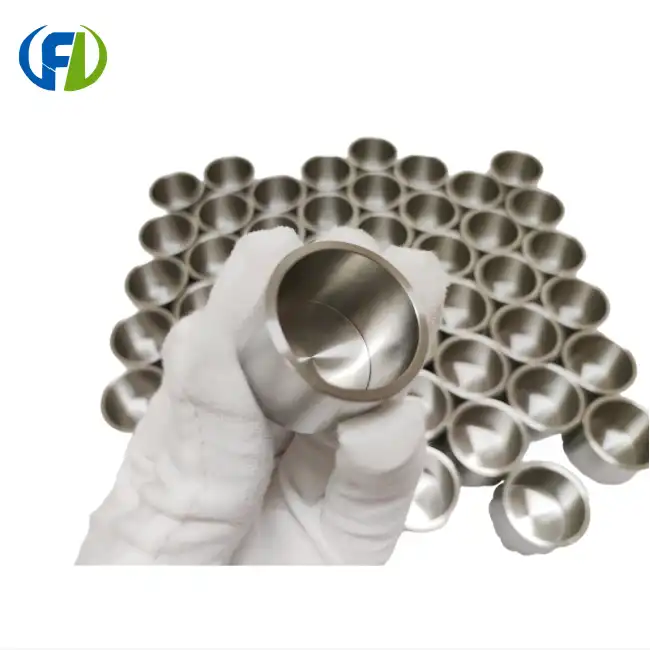

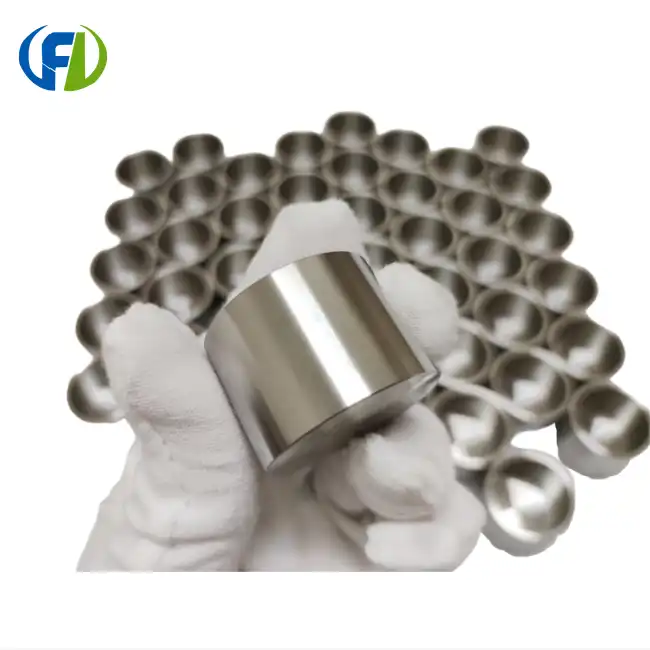

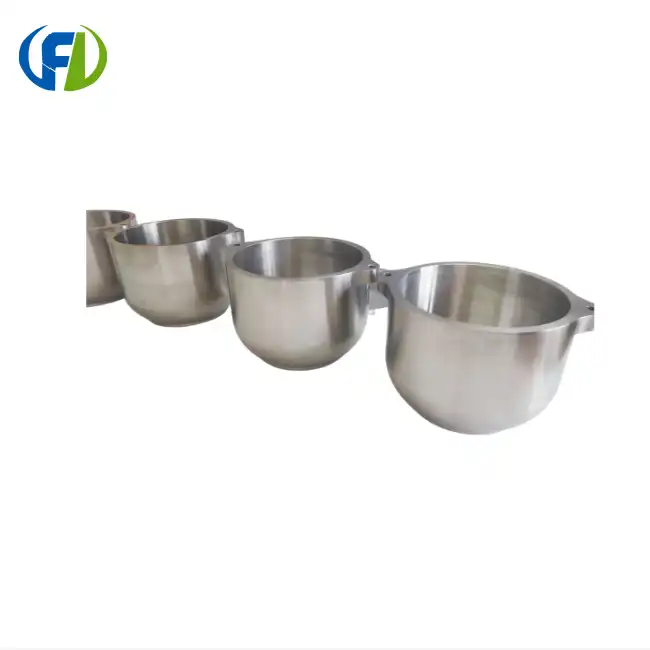

High-density Zirconium Crucible picture display

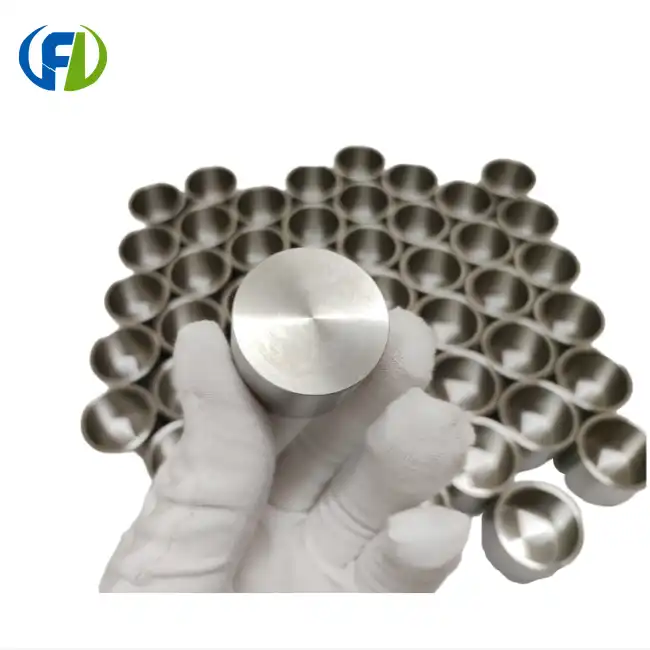

High-density Zirconium Crucible in China

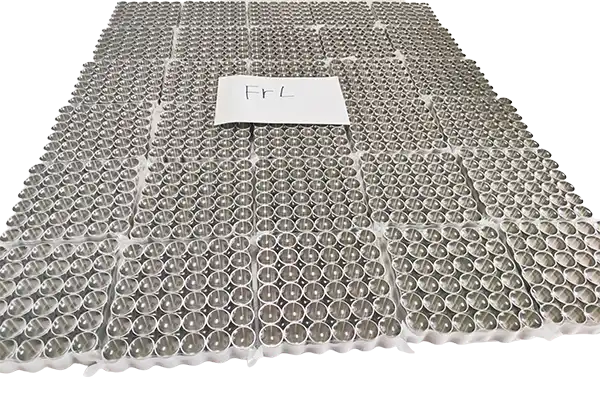

Custoized High-density Zirconium Crucible

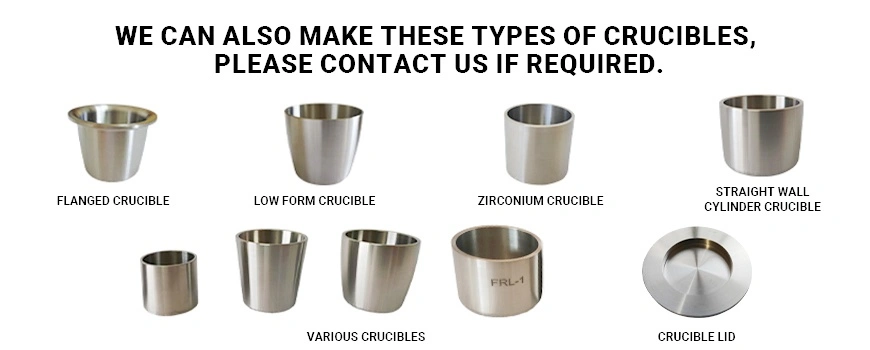

High-density Zirconium Crucible factory

The common size of High-density zirconium crucible

Low form Zirconium crucible
Top diameter(mm)	Bottom diameter (mm)	Height (mm)	Wall thickness (mm)	Capacity (ml)
22	18	20	2	3.6ml
26	16	20	2	5.0ml*2mm
30	24	26	2	10ml*2mm
40	26	41	1	30ml*1mm
42	27	42	2	30ml*2mm
42	30	42	1.6	35ml*1.6mm
41	33	42	2	35ml*2mm
43	34	40	1	40ml*1mm
47	40	35	1	45ml*1mm
49	42	36	2	45ml*2mm
48	38	45	3	45ml*3mm
47	40	38.5	1	50ml*1mm
48	40	42	2	50ml*2mm
56	44	50	2	80ml*2mm
AutoFluxer crucible with flanged
48	29	33	2	25ml*2mm
60	36	39	1	50ml*1mm
60	36	43	2	50ml*2mm

FAQ

Q: What is the advantage of your company?

A: We have many professional technicians. We have more competitive price and better after-sales service than other companies.

Q: How do you control the quality?

A: Our company has passed ISO9001 certification. We have many inspectors, each product will go through 4-5 process testing.

Q: What about your price?

A: Our price is very competitive, if you are interested in our products, please contact us.

Q: How long is your delivery time?

A: Different products have different lead times. Products will be delivered as soon as possible on the basis of quality assurance, generally 7-15 days.

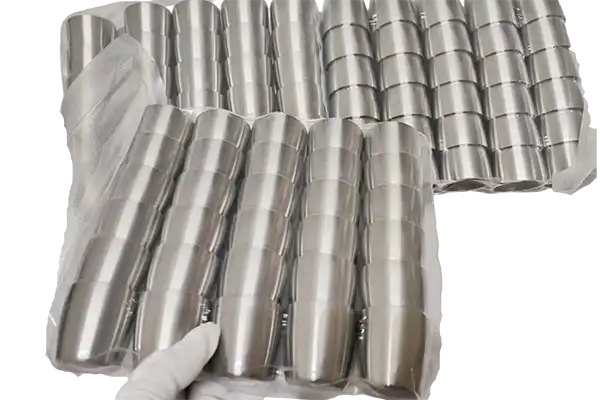

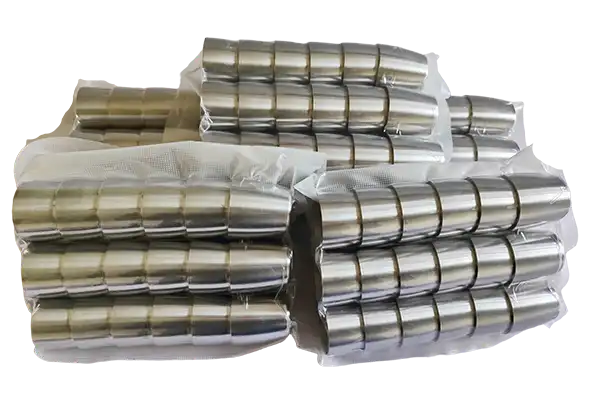

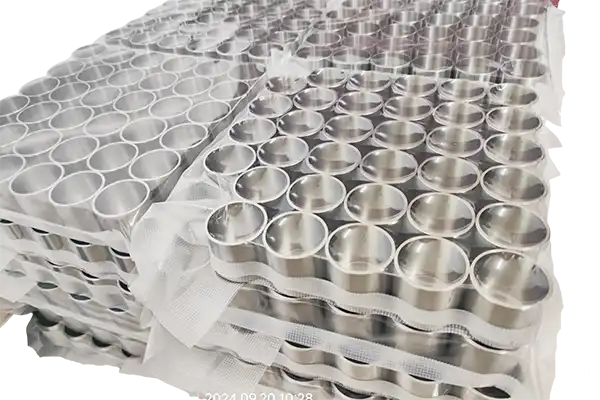

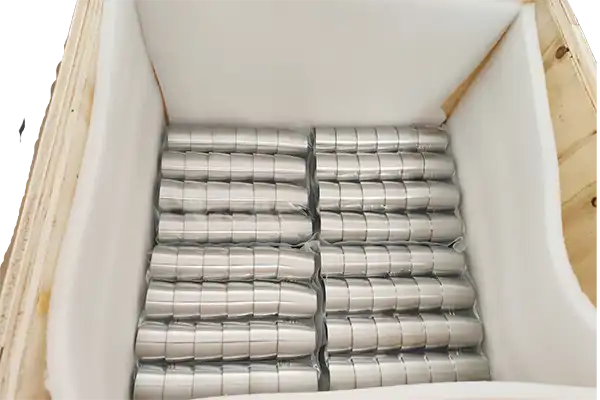

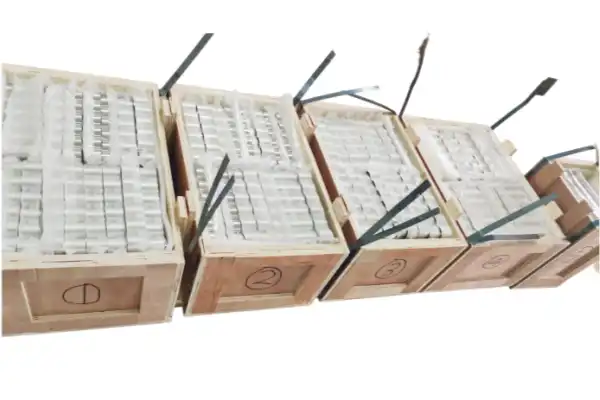

Our Packaging

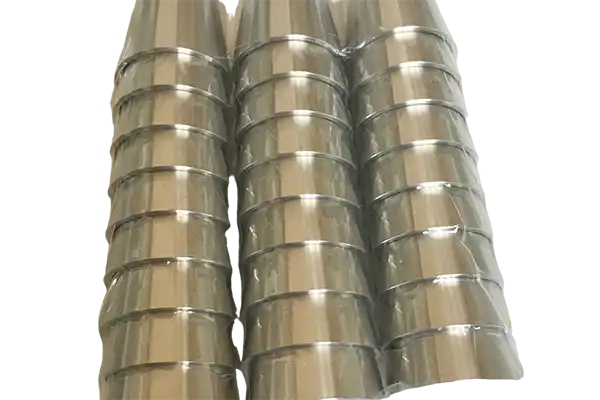

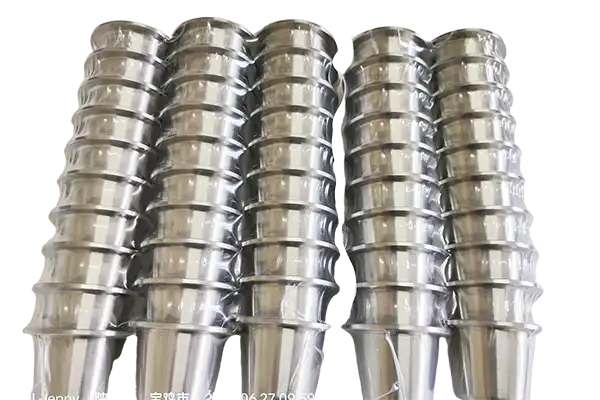

Package
