High-temperature resistant laboratory pure zirconium crucible

High-temperature resistant laboratory zirconium crucibles are high-temperature and corrosion-resistant containers made of high-purity metallic zirconium (Zr≥99.2%). They are specially designed for harsh experimental scenarios such as high-temperature melting, chemical analysis, and material synthesis. They can replace platinum crucibles, balancing performance and cost.

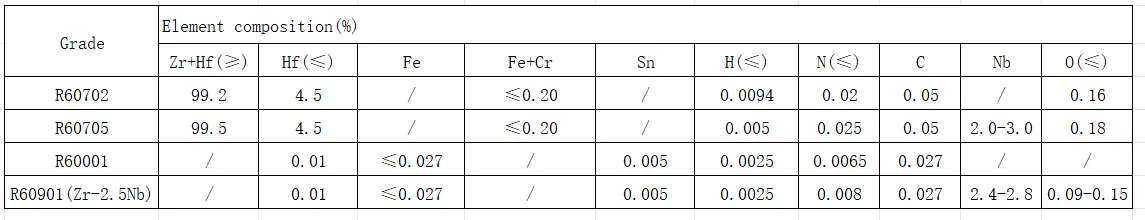

Chemical composition table of pure zirconium crucible：

Comparison table of mechanical properties of pure zirconium crucibles：

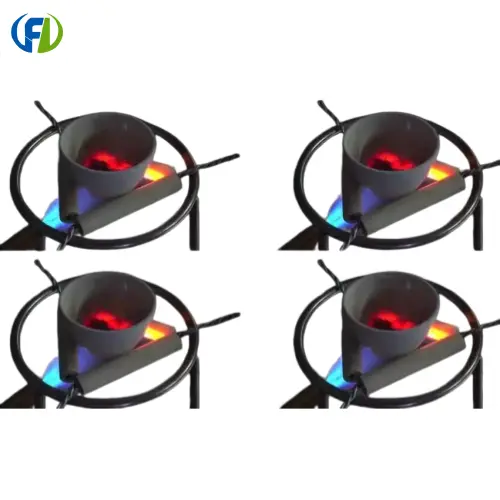

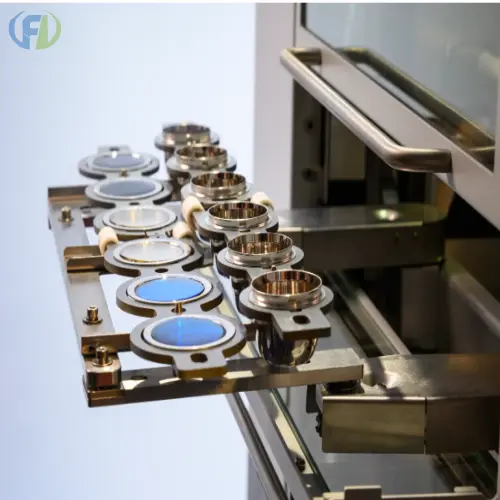

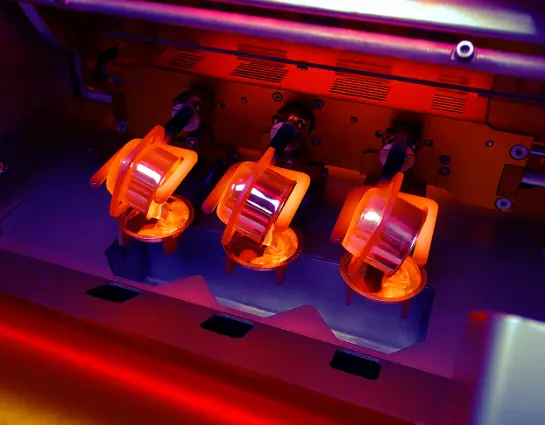

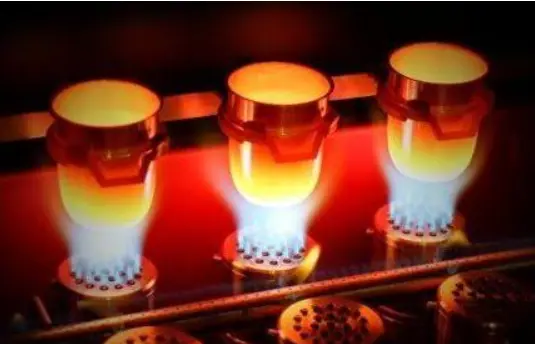

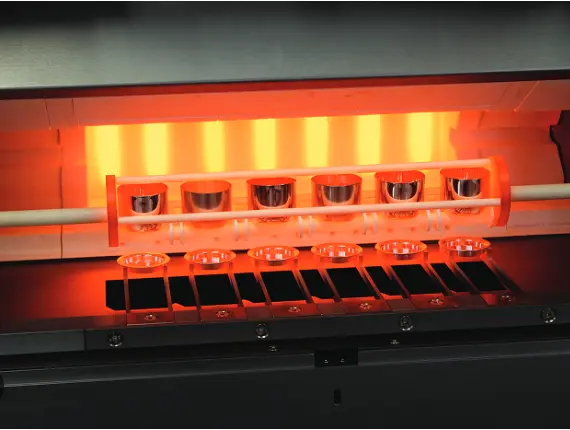

Product Showcase：

I. Core Materials and Performance Material Purity:

Utilizes high-purity zirconium from Baoji, Zr≥99.2%, with extremely low impurity content, avoiding sample contamination. High Temperature Resistance: Melting point 1852°C, maximum long-term operating temperature 1800°C, short-term withstand 1850°C, far exceeding ordinary ceramic crucibles. Corrosion Resistance: Resistant to strong acids, strong alkalis, molten alkali metals, and peroxides (such as sodium peroxide), exhibiting excellent chemical stability. Thermal Stability: Moderate thermal conductivity, low coefficient of thermal expansion, strong thermal shock resistance, and resistant to cracking under repeated temperature fluctuations. Mechanical Properties: Density approximately 6.52g/cm³, high strength, resistant to deformation, smooth surface (Ra≤0.2μm), easy to clean. II. Common Specifications and Customization Standard Sizes: Diameter 10–700mm, Height 25–900mm, Wall Thickness 3–30mm, with/without lid optional. Shapes: Cylindrical, conical, square, etc., non-standard customization supported, tolerance up to ±0.1mm.

II. Common Specifications and Customization

Standard Sizes: Diameter 10–700mm, Height 25–900mm, Wall Thickness 3–30mm, with/without lid optional.

Shapes: Cylindrical, conical, square, etc., non-standard customization supported, tolerance up to ±0.1mm.

III. Typical Application Scenarios
Geology/Metallurgy: Ore melting, precious metal (gold, silver, platinum group metals) smelting and purification.

Chemical Analysis: Alkali fusion sample digestion, high-temperature titration, trace element analysis.

Materials R&D: High-temperature sintering, alloy smelting, preparation of active metals (titanium, zirconium, niobium).

Nuclear Industry/Special Experiments: High-radioactivity sample processing, high-purity material synthesis.

IV. Advantages Comparison
Comparison with alumina/zirconia ceramic crucibles: Zirconia crucibles have stronger corrosion resistance, are less likely to react with strong alkaline fluxes, and have better thermal shock resistance.

Comparison with platinum crucibles: Lower cost, better resistance to sodium peroxide corrosion, suitable for high-frequency, high-intensity experiments.

Capacity: 5-50ml (Custom sizes available)

Types: Short-walled zircon crucibles, zircon crucibles with flanged edges, straight-walled zircon crucibles, sloping-walled zircon crucibles, cylindrical zircon crucibles

Surface: Glossy

Wall Thickness: 1mm, 2mm or customizable

Lifespan: 2mm thick crucibles have a longer lifespan than thin-walled crucibles and can be reused more than 100 times.
