UNS R60001 30 mL Slanted-Wall Nuclear-Grade High-Purity Zirconium Crucible

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Product Name: Nuclear-grade high-purity zirconium crucible
Grade: R60001
Density: 6.51 g/cm³
Specification: 30 ml
Customizable Sizes: 10–50 ml (custom fabrication based on drawings available)
Standards: ASTM, DIN, EN
Manufacturing Process: Hot rolling, cold rolling, annealing
Surface Finish: Pickled / Polished (bright)
Certification: ISO9001
Lead Time: 5–7 days
Payment Terms: Wire Transfer (T/T)
Packaging: Standard packaging

Send Inquiry

Download

Product Description

Baoji Freelong New Material Technology Development Co., Ltd. loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.

Product Overview

The 30mL nuclear-grade high-purity zirconium crucible is a premium laboratory vessel designed for extreme chemical processing, high-temperature alkali fusion, and trace analysis. Precision-machined from high-purity, unalloyed nuclear-grade zirconium (UNS R60001), it features exceptionally low impurity levels—including strictly controlled hafnium (Hf) content—and offers outstanding resistance to corrosion from strong acids and alkalis.

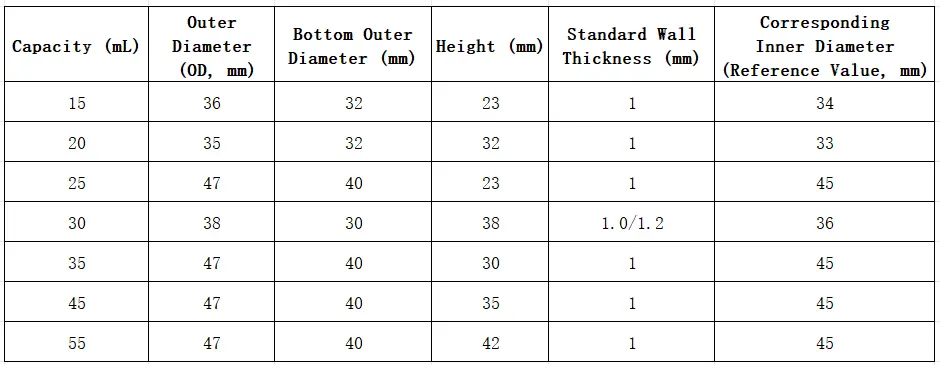

Capacity: 5–50 ml (custom fabrication based on drawings available)

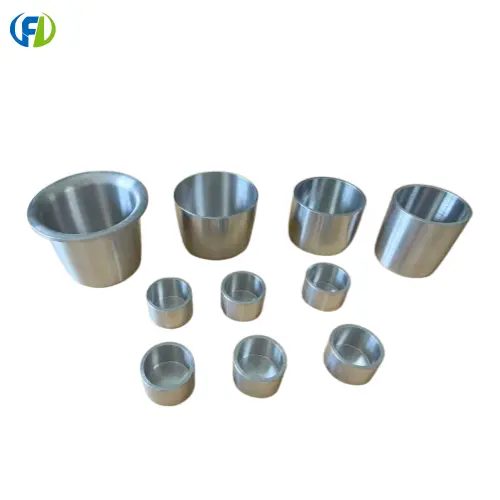

Types: Low-rim, flanged, straight-walled, tapered-walled, and cylindrical zirconium crucibles

Surface finish: Bright

Wall thickness: 1 mm, 2 mm, or customizable

Service life: Crucibles with a 2 mm wall thickness offer a longer service life than thin-walled versions and can be reused over 100 times.

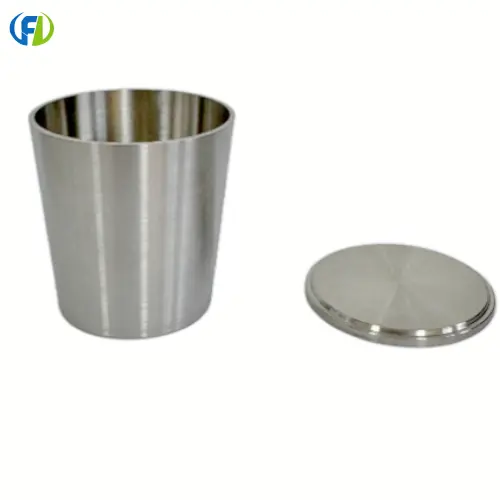

Features: The mouth diameter is larger than the base diameter, featuring an inclination angle of approximately 15°; it is ideally suited for the alkali fusion method and for pouring solid samples.

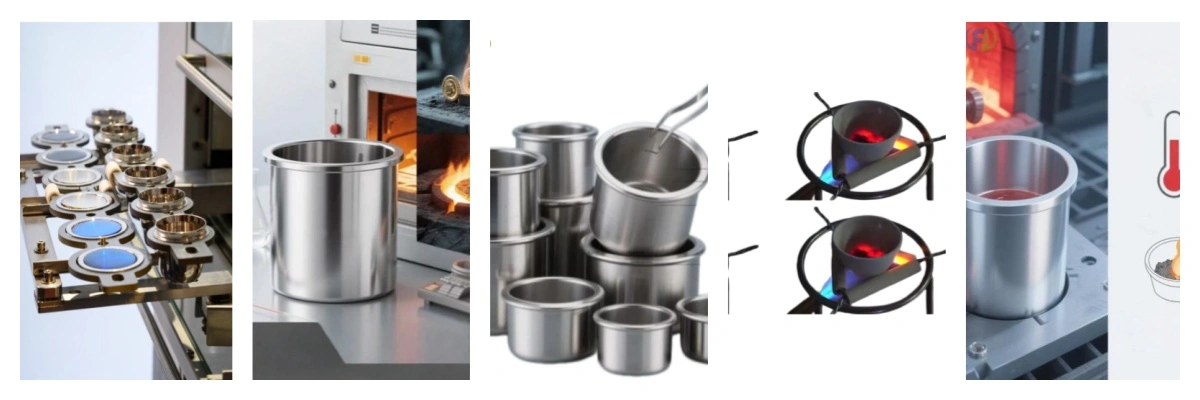

Product Showcase

II. Key Product Features
*Excellent resistance to alkali fusion
*High purity, preventing cross-contamination
*Outstanding alternative to platinum
*Superior thermal shock resistance and mechanical strength
III. Main Application Areas
*Geological and mineral analysis
*Nuclear energy and defense research
*Superconductor and new material R&D
*Precious metal catalyst analysis

IV. Usage and Maintenance Recommendations
⚠️ Important Precautions:
Strictly avoid contact with hydrofluoric acid (HF): Zirconium dissolves rapidly in hydrofluoric acid; HF at any concentration—or any acidic solution containing fluoride—will cause catastrophic corrosion to the crucible.

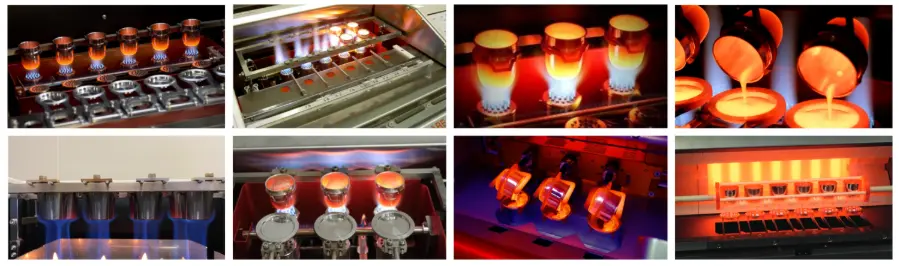

Avoid excessive overheating in air: Heating in air above 650°C accelerates surface oxidation. To extend the crucible's service life, it is recommended to limit the duration of high-temperature heating during alkali fusion or to use the crucible under a protective atmosphere.

Cleaning methods: After sample fusion, cleaning by soaking in dilute hydrochloric acid, dilute nitric acid, or boiling water is recommended. Never use hard metal brushes or abrasive materials to scrape the inner walls, as this could damage the dense, natural protective layer of zirconium dioxide (ZrO₂).

about Us

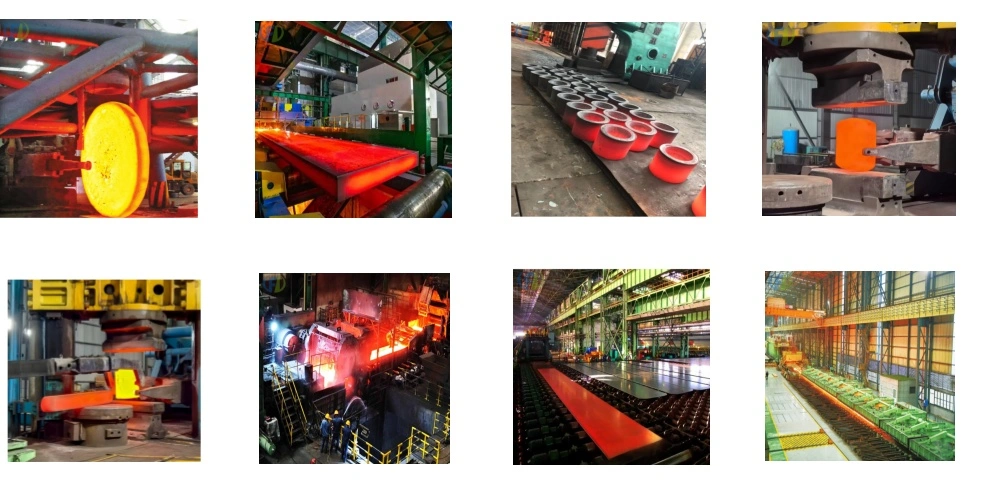

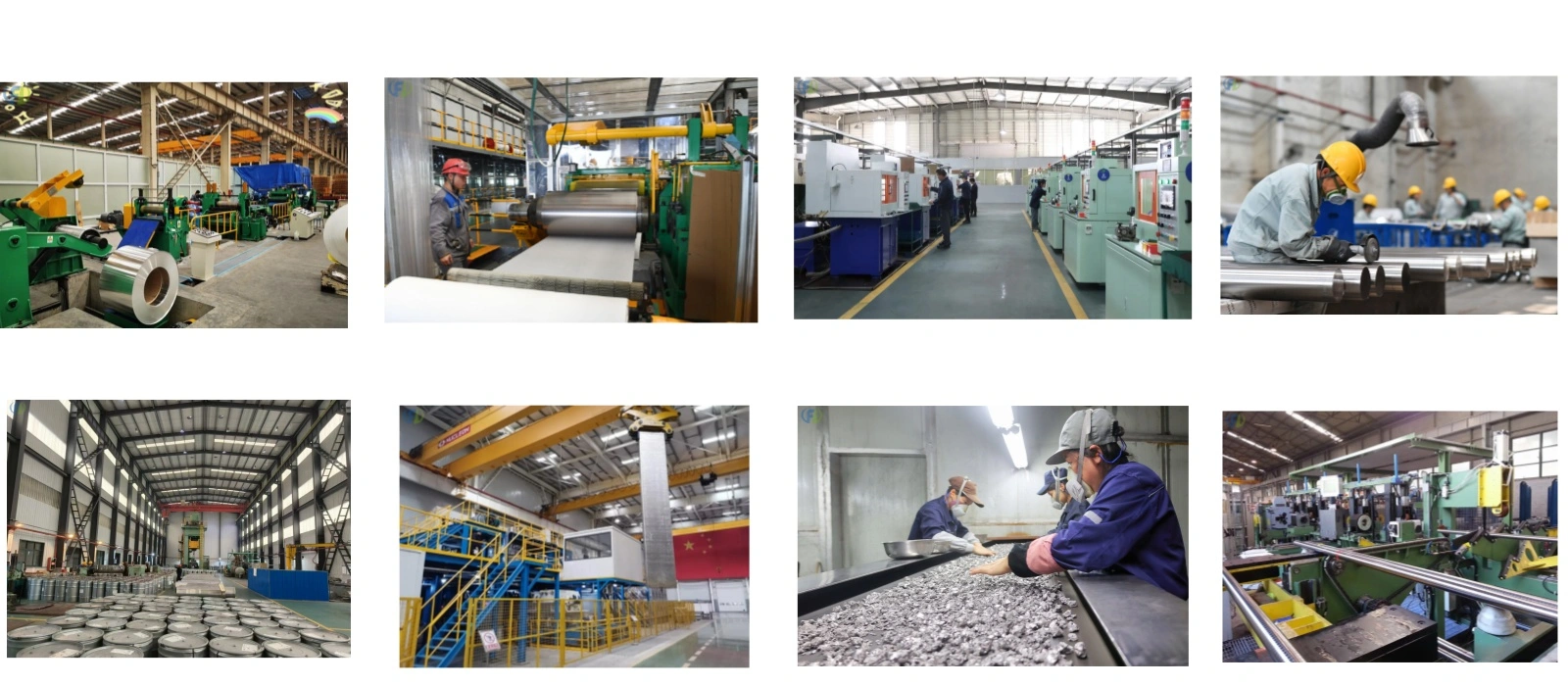

Production and Processing

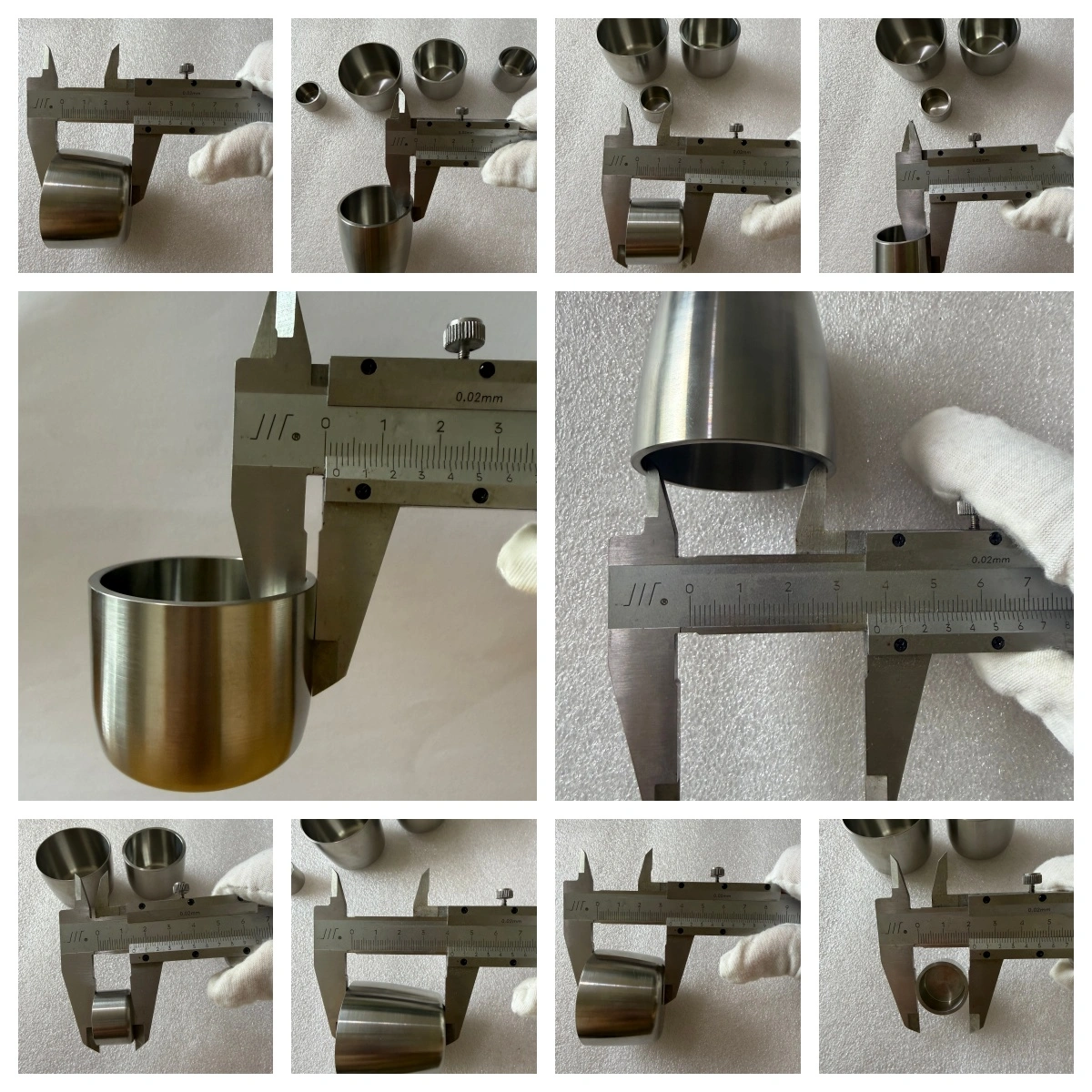

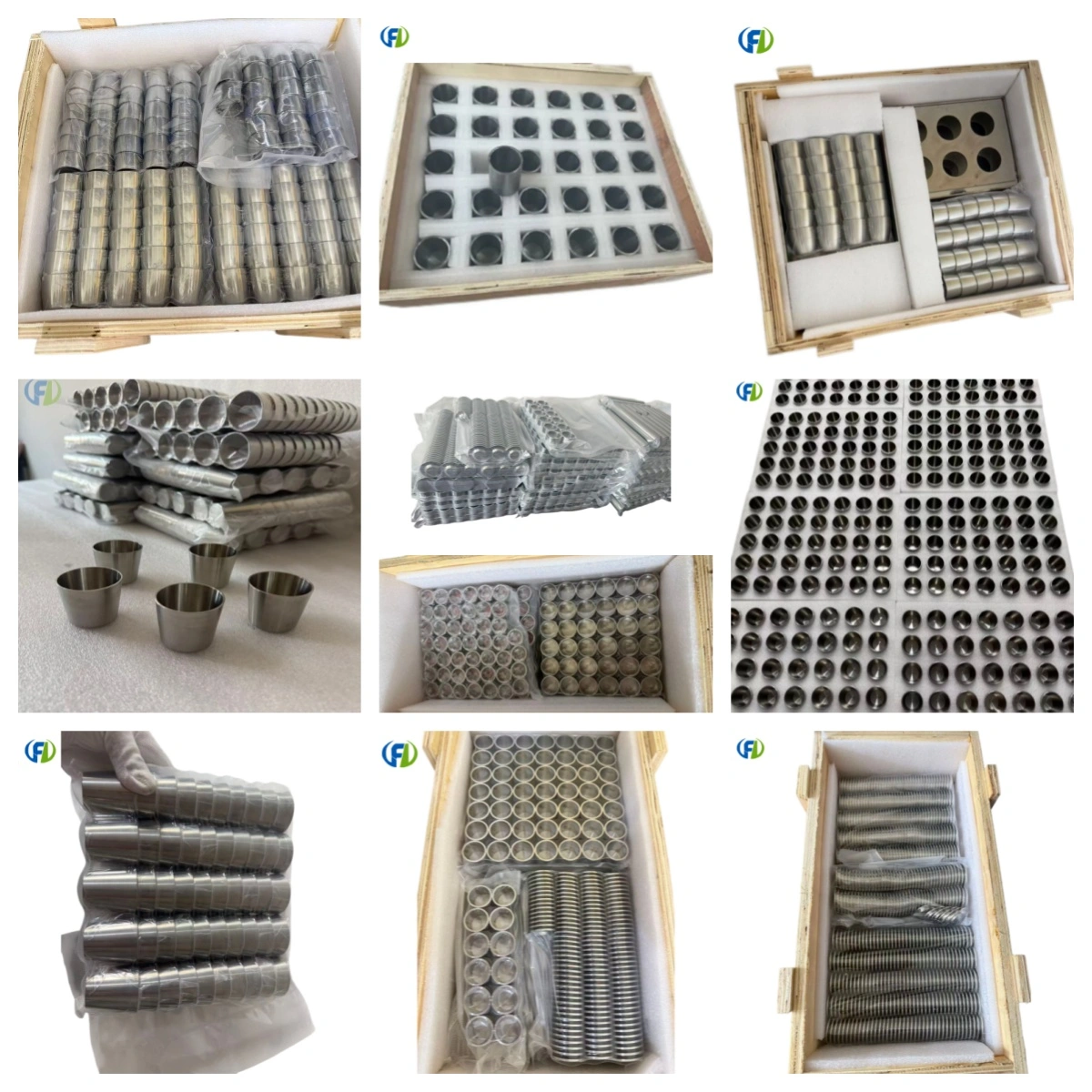

Product Inspection and Shipment

Why Choose Us?

With over a decade of industry experience, Baoji Furuilong is your trusted partner for raw material processing. Backed by a team of expert technical consultants and skilled machinists, we specialize in the R&D and manufacturing of processed components across a wide range of materials. We are committed to excellence, ensuring the perfect delivery of your products.

Our Strengths:

ISO9001-certified quality management system

Advanced CNC machining and heat treatment capabilities

Global reach spanning over 50 countries

Comprehensive professional support and consultation

Customized project management for specialized applications

Fast shipping and ample inventory
