Zirconium Cylindrical Crucible

Place of Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Grade: Zr702,Zr705,R60001,R60901
surface: bright
Type: Machined
Color: Metal
Packaging Details:Plywood case
Delivery Time:5~7days
Payment Terms:T/T

Send Inquiry

Download

Product Description

Product Details

Zirconium cylindrical crucibles have a high melting point of 1855°C (3371°F) and have excellent corrosion resistance to alkalis, acids, brines and other reagents (except hot concentrated acids). Due to their similar thermochemical properties, zirconium crucibles are often used as a cost-effective alternative to traditional platinum labware. Zirconium crucibles are widely used in high temperature applications such as melting of metals and salts. It is ideal for highly corrosive fusion processes (lithium and sodium salt fusion) in analytical chemistry and chemical processing.

Name:   Zirconium Cylindrical Crucible
Material:   Zirconium & Zirconium alloy
Grade:   Zr702,Zr705,RO60001,RO60901
Density:   6.51g/cm3
Shape:   Crucible

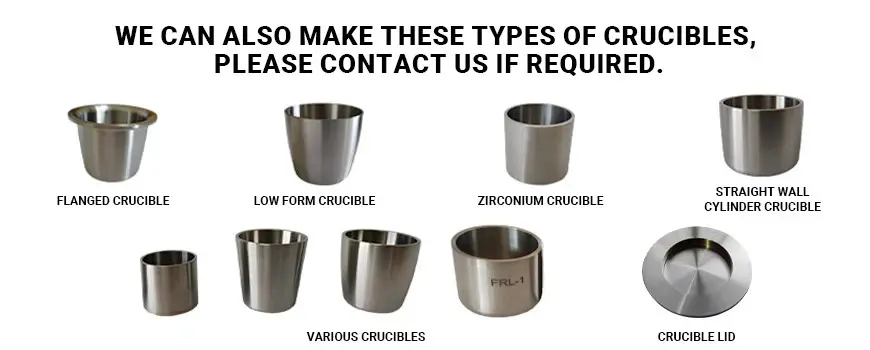

Type:   Low form zirconium crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible.
Volume:   5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml,50ml etc,
Custom   Yes, process as per customer's drawing.
Wall thickness:   1mm,2mm,or custom
Service life:   A crucible with a wall thickness of 2mm has a longer service life than a thin-walled crucible and can be used repeatedly for more than 100 times.

Product use temperature description

Recommended temperature for zirconium cylindrical crucibles: 500-600°C. Heating at higher temperatures may damage the crucible and shorten its useful life. Do not exceed 900 °C for fusion applications.

It is recommended to use under inert gas. Use in air will cause oxidation and shorten the life of the crucible.

When the crucible is used in air, a black oxide layer forms. If necessary, clean the crucible with fine zircon sand.

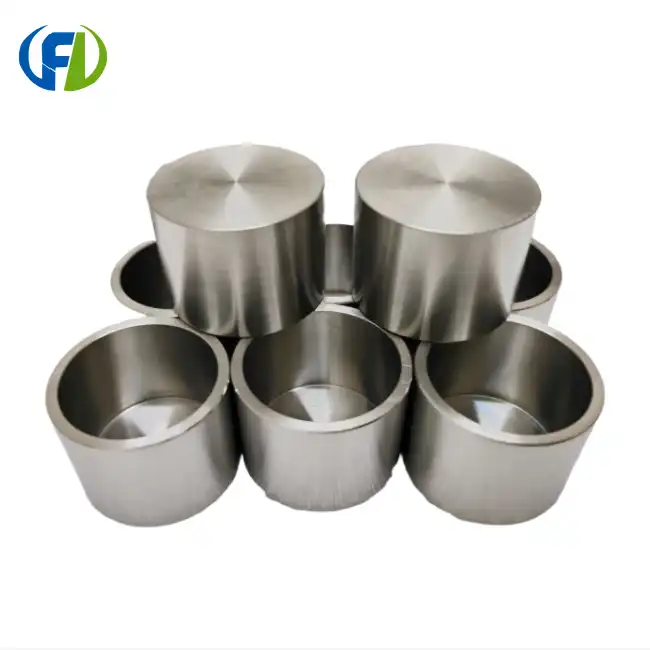

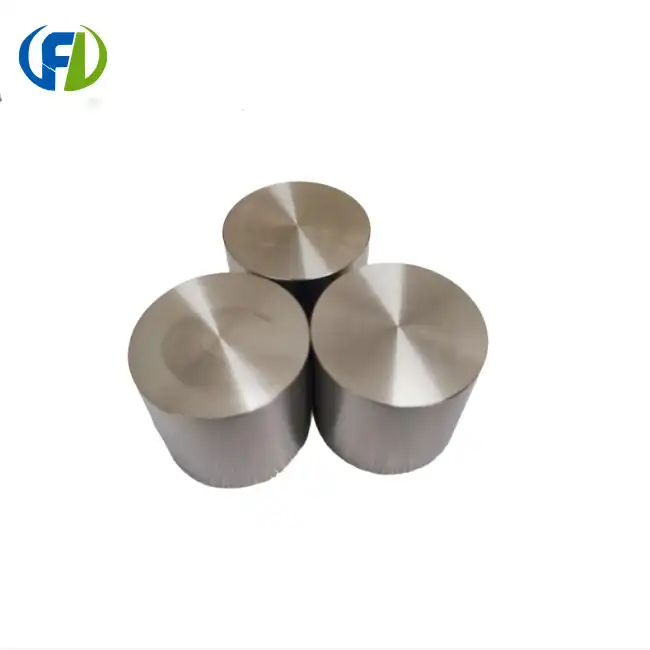

Zirconium Cylindrical Crucible picture display

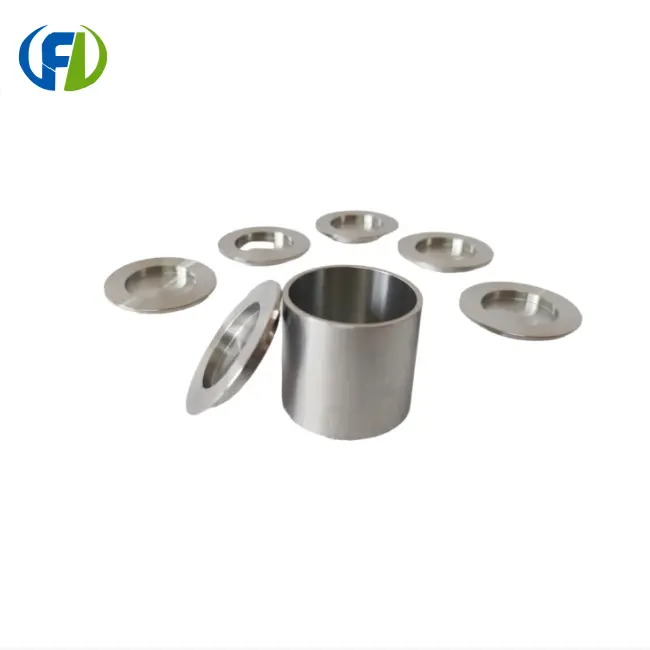

Customized Zirconium Cylindrical Crucible

Size description

Zirconium cylindrical crucible sizes can be customized upon request, and zirconium crucible lids can be purchased at an additional cost.

Low form Zirconium crucible
Top diameter(mm)	Bottom diameter (mm)	Height (mm)	Wall thickness (mm)	Capacity (ml)
22	18	20	2	3.6ml
26	16	20	2	5.0ml*2mm
30	24	26	2	10ml*2mm
40	26	41	1	30ml*1mm
42	27	42	2	30ml*2mm
42	30	42	1.6	35ml*1.6mm
41	33	42	2	35ml*2mm
43	34	40	1	40ml*1mm
47	40	35	1	45ml*1mm
49	42	36	2	45ml*2mm
48	38	45	3	45ml*3mm
47	40	38.5	1	50ml*1mm
48	40	42	2	50ml*2mm
56	44	50	2	80ml*2mm
AutoFluxer crucible with flanged
48	29	33	2	25ml*2mm
60	36	39	1	50ml*1mm
60	36	43	2	50ml*2mm

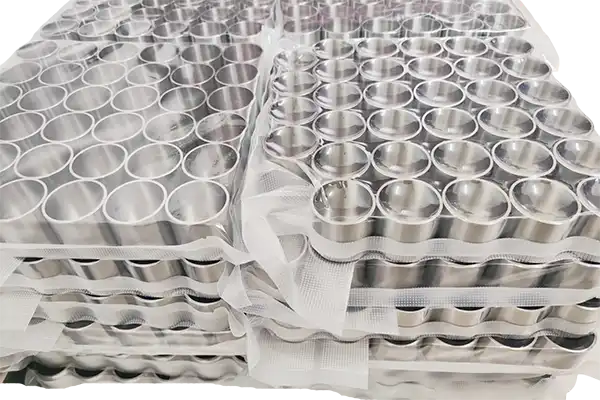

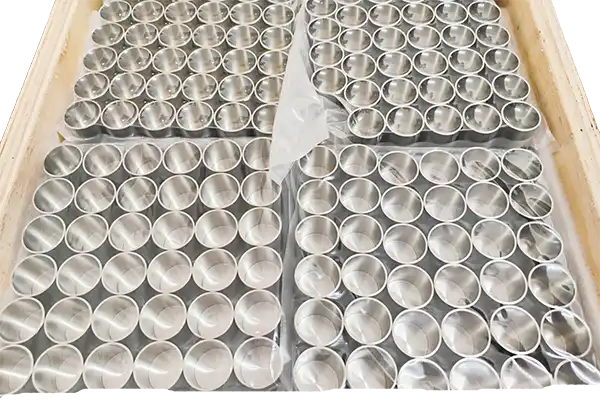

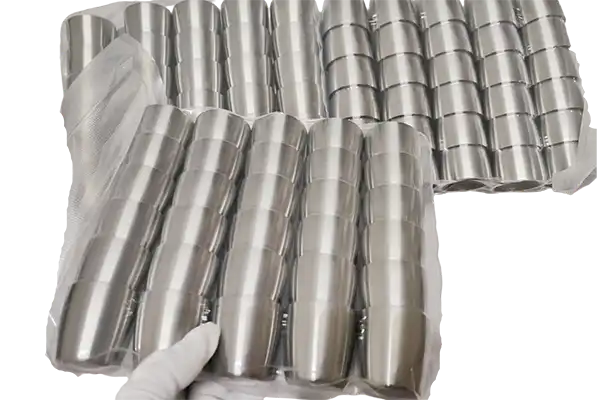

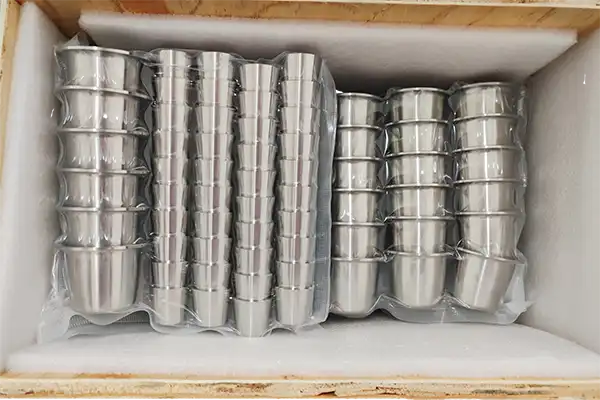

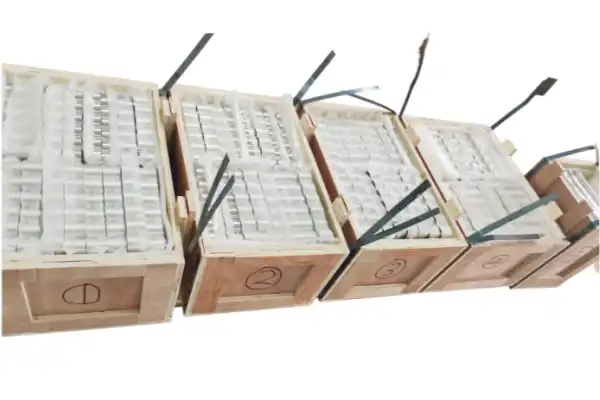

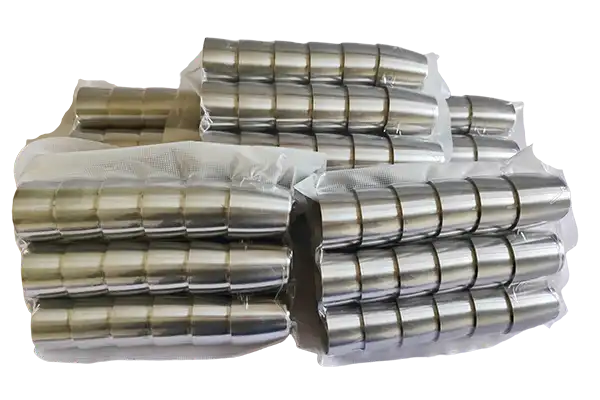

Packaging details of zirconium cylindrical crucible

a. Vacuum packing

b. Pack it with moisture-proof paper.

c. Packed with kraft paper.

Wrap in styrofoam on all four sides of the plywood box. Finally pack the product in a plywood box.

Zirconium Cylindrical Crucible
