ASTM B352 Zircaloy-4 UNS R60804 Sheet

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51g/cm3
Material: Zr-4 ZrSn1.4-0.2
Grade: UNS R60804
Standard: ASTM B352
Certification: ISO9001
Delivery Time:5~7days
Payment Terms:T/T
Packaging Details:Plywood case

Send Inquiry

Download

Product Description

ASTM B352 Zircaloy-4 UNS R60804 sheet details

Size	0.3-50mm10006000mm
Standard	ASTM B352
China	GB Zr-4 ZrSn1.4-0.2
United States	GB ASTM Zr-4
Density	6.51 g/cm³
Grade	UNS R60804
Shape	Plate/sheet
Surface	Polished

Chemical composition of ASTM B352 Zircaloy-4 UNS R60804 sheet

Element	Fe	C	Si	Mn	Cr	Ni	Cu	Mo	N	Ti	W	V	B	Co	Pb	Al	Sn	Mg	H	O	Cd	More
Minimum	0.18	-	-	-	0.07	-	-	-	-	-	-	-	-	-	-	-	1.2	-	-	-	-	Zr: Remainder; Fe+Cr: 0.28~0.37; Hf≤0.01
Maximum	0.24	0.027	0.012	0.005	0.13	0.007	0.005	0.005	0.008	0.005	0.01	0.005	5.0E-5	0.002	0.013	0.0075	1.7	0.002	0.0025	0.16	5.0E-5	Zr: Remainder; Fe+Cr: 0.28~0.37; Hf≤0.01

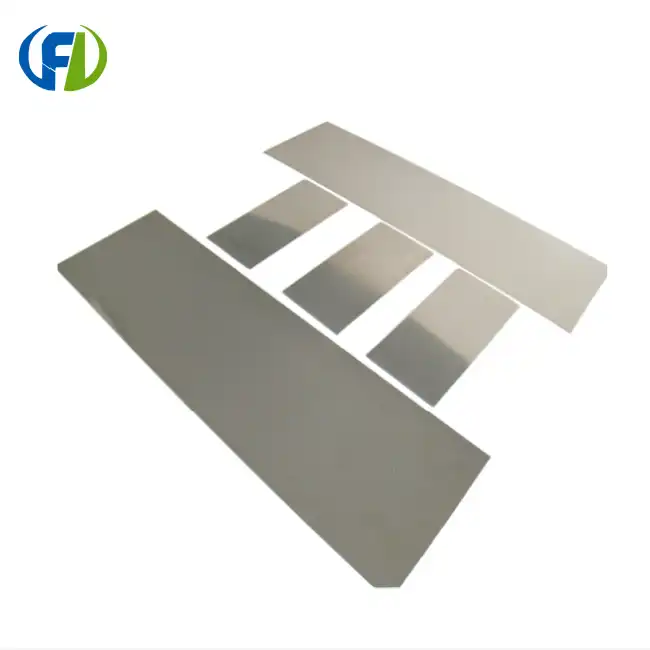

ASTM B352 Zircaloy-4 UNS R60804 sheet display picture

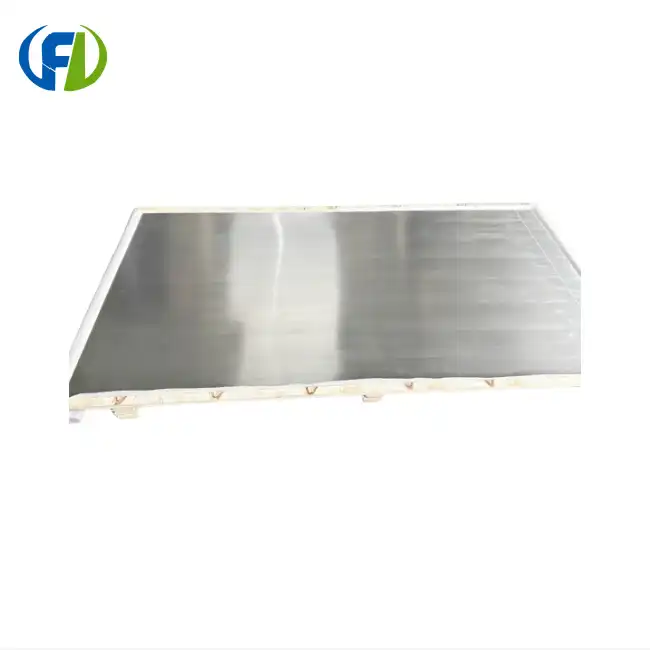

ASTM B352 Zircaloy-4 UNS R60804 Sheet price

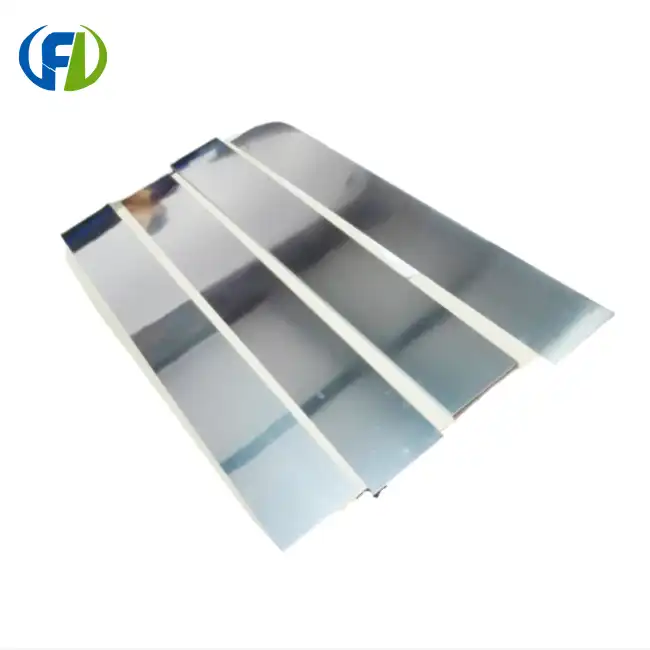

ASTM B352 Zircaloy-4 UNS R60804 Sheet factory

Customized ASTM B352 Zircaloy-4 UNS R60804 Sheet

ASTM B352 Zircaloy-4 UNS R60804 Application of sheet alloy

1. Aviation and aerospace fields: Zr4 alloy can be used to make engine blades and other parts. It has the characteristics of high heat resistance and corrosion resistance, and has been widely used in aviation and aerospace fields.
2. Medical field: Zr4 alloy is used in the medical field to make artificial bone joints, artificial heart valves and other parts. It has the advantages of non-toxicity and corrosion resistance.
3. Electronic field: Zr4 alloy has good conductivity and high hardness, so it can be used to make electronic components, electrodes and other parts.
4. Automobile manufacturing field: Zr4 alloy can be used to make parts in automobile engines, with good mechanical properties and heat resistance.

In short, Zr4 alloy composition is an important alloy material composed of zirconium and silver, with excellent physical and chemical properties, and is widely used in many fields.

The application and performance characteristics of Zr-4 alloy show that Zr-4 alloy has good corrosion resistance, moderate mechanical properties, low atomic thermal neutron absorption cross section, good compatibility with nuclear fuel, and is mostly used as the core structure material of water-cooled nuclear reactors.

Comparison of zirconium and zirconium alloy grades.

Zirconium series (Hf≤ 4.5%) grades for commercial applications are as follows:
UNS R60001(Zr0)
UNS R60700(Zr1): Commercially pure zirconium Zr+Hf≥99.2
UNS R60702(Zr3): Commercially pure zirconium Zr+Hf≥99.2
UNS R60704(zirconium-tin alloy): Zr-1.5%Sn, Zr+Hf≥97.5
UNS R60705(Zr5, zirconium-niobium alloy): Zr-2.5%Nb, Zr+Hf>95.5, O≤0.18
UNS R60706 (Zirconium-Niobium Alloy): Zr-2.5%Nb, Zr+Hf≥95.5, O≤0.16

The zirconium series grades used in the nuclear industry (reactor grade, Hf≤0.01%) are as follows:
UNS R60802 (Zr2, Zirconium Alloy 2, Zirconium-Tin Alloy): Zr-1.5Sn-0.15Fe-0.1Cr-0.05Ni
UNS R60804 (Zr4, Zirconium Alloy 4, Zirconium-Tin Alloy): Zr-1.5Sn-0.2Fe-0.1Cr
UNS R60901 (Zirconium-Niobium Alloy): Zr-2.5Nb, O-0.1%
UNS R60904 (Zirconium-Niobium Alloy): Zr-2.5Nb, Zr-1Nb (Zr-1%Nb Alloy)
