ASTM B551 R60705 Zirconium Sheet

ASTM B551 R60705 zirconium sheet main uses1. Industrial field: Zirconium foil is widely used in heat exchangers, catalyst carriers, steel smelting and other industrial fields.

2. Packaging materials: Due to its corrosion resistance and plasticity, zirconium foil is also used as packaging materials.
3. Battery materials: In battery manufacturing, zirconium foil can be used as electrodes or other key components.
4. Aerospace and military industry: The high melting point, high strength and corrosion resistance of zirconium foil make it an important material in the aerospace and military fields. For example, it can be used to manufacture national defense weapons such as armored vehicles, tanks, cannons and bulletproof plates.
5. Atomic and nuclear energy: Zirconium has outstanding nuclear energy and is an indispensable material for the development of the atomic energy industry. In nuclear power plants and nuclear submarines, zirconium alloys are used as cladding and pressure pipes for nuclear fuel.

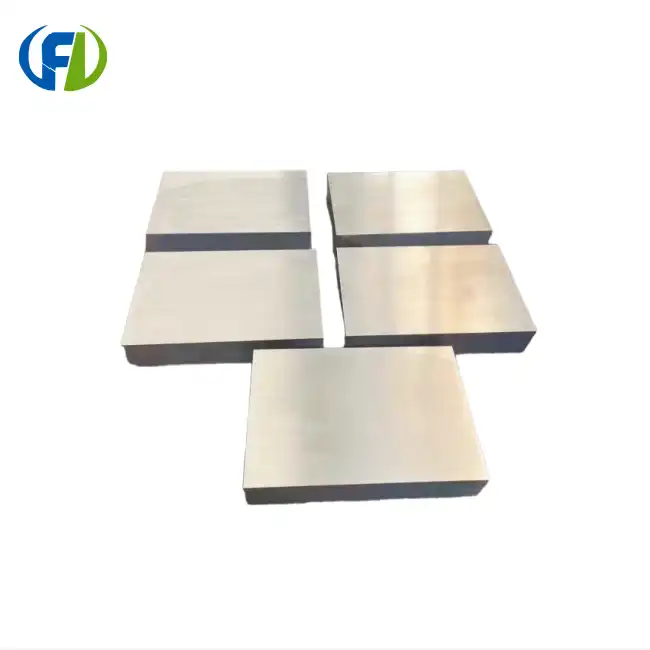

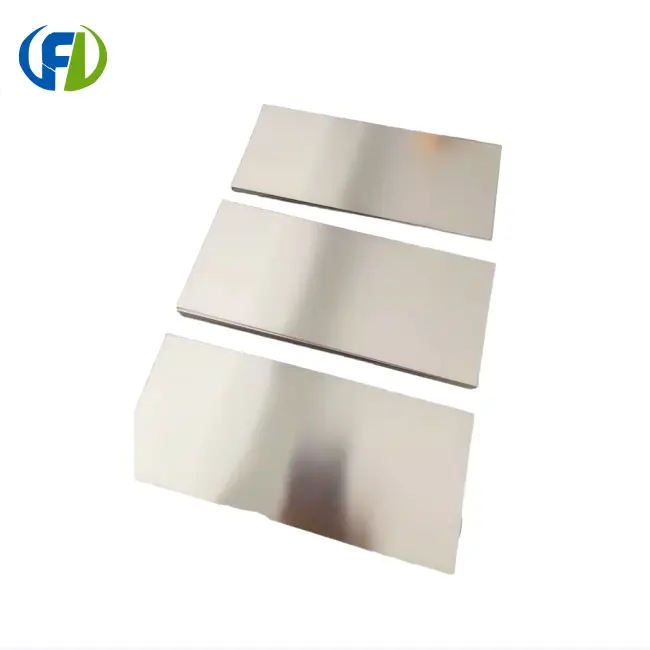

ASTM B551 R60705 zirconium sheet display picture

​​​​​​​

Mechanical properties of Zirconium:

Zirconium foil preparation method

1. Vacuum induction furnace smelting: weigh the raw materials of high-purity rolled and high-purity zirconium, perform block pretreatment, obtain rolled and zirconium blocks, place them in a vacuum induction furnace for smelting, and then alloy smelting to obtain alloy casting liquid after the raw materials are completely melted;

2. Casting: Cast the alloy casting liquid in step 1 into a cylindrical billet or a rectangular billet, and take it out of the furnace after the vacuum induction furnace is cooled to 200°C to obtain an ingot;

3. Forging: Smooth the surface of the ingot obtained in step 2, and roughen it in parallel with the casting direction to obtain a slab;

4. Hot rolling: Cut off the ingot in step 3 with wire cutting or sawing machine The cracked edges of the obtained slab are removed, and the surface oxide scale is polished clean with a grinder. Tempering is performed during rolling, and the tempering temperature is 450-500℃. After rolling, annealing is performed, and the annealing temperature is 450-500℃ to obtain a rolled zirconium alloy plate;
5. Cold rolling: After the rolled zirconium alloy annealed in step 4 is processed into the required width size, cold rolling is performed to obtain a rolled zirconium alloy foil that has been cold rolled. During the cold rolling process, the pass processing rate gradually decreases, and the timing of stress relief annealing is determined according to the slag falling condition of the plate surface;
6. Leveling annealing: The rolled zirconium alloy foil that has been cold rolled is leveled and annealed under vacuum conditions.

FAQ

Q: How is the quality guaranteed?

A: ①We have many kinds of test equipment, and will test materials to the finished products.

②The third-party quality certificates are available.

③all our products are refundable and exchangeable if there are quality problems.

Q: What are your terms of payment?

A: If the amount≤3000 USD, needs to be total paid before production, if the amount is ＞3000 USD,

you can pay 30%~50% advance payment, the rest balance before shipment.

Q: What can I do if l am not sure about the safety of T/T payment?

A: Please feel assured, we are an old factory and really care about our reputation.

Q: How long is your processing time?

A:2~30 days according to the stock or quantity of your order.

Q: Do you provide free samples?

A: Yes, some of our samples are provided free, buyers need to pay the freight cost.
