705 Melting Zirconium Crucible

Place of Origin: Baoji, Shaanxi (Mainland)
Brand: FRL Metal
Density: 6.49g/cm3
Technology: Cold Rolled / Hot Rolled
surface: light
Advantage:...

Send Inquiry

Download

Product Description

705 Melting Zirconium Crucible specifications include 99.6% purity, 6.51g/com3 density, and a 2200 °C maximum service temperature. Precious metals are primarily melted there. It is a perfect high temperature refractory and exhibits good thermal stability.

Zirconium is a metal with excellent corrosion resistance that is frequently used in equipment designed to withstand chemical corrosion. Its acid resistance is comparable to tantalum but lower than that of titanium and many steels. Up to the boiling point of hydrochloric acid, zirconium exhibits high corrosion resistance and is not vulnerable to stress corrosion, pitting corrosion, or crevice corrosion.

Zirconium is stronger than sulfuric acid and can survive its boiling point. Its concentration can also reach 70%. Zirconium can withstand several extremely corrosive situations, including molten alkali, various salt solutions, various inorganic acids (hydrochloric acid, sulfuric acid, nitric acid, etc.), alkalis, and most organic acids (such as hydrochloric acid), Formic acid, etc. Nickel and sodium hydroxide both have the same corrosion resistance.

Product size

The 705 melting zirconium crucibles are available in 1mm, 1.5mm and 2mm standard sizes. Other thicknesses are available upon request.

Capacity	Top Diameter	Bottom Diameter	Height
35 mL	40 mm	33 mm	40 mm
42 mL	45 mm	35 mm	44 mm
50 mL	45 mm	40 mm	42 mm
58 mL	50 mm	38 mm	45 mm

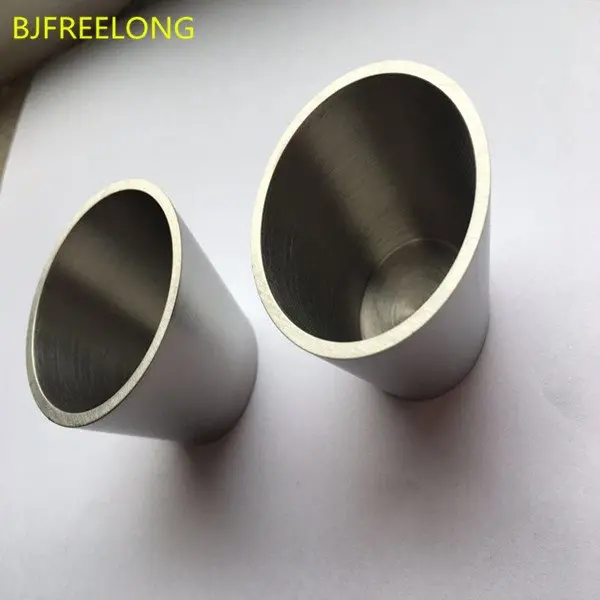

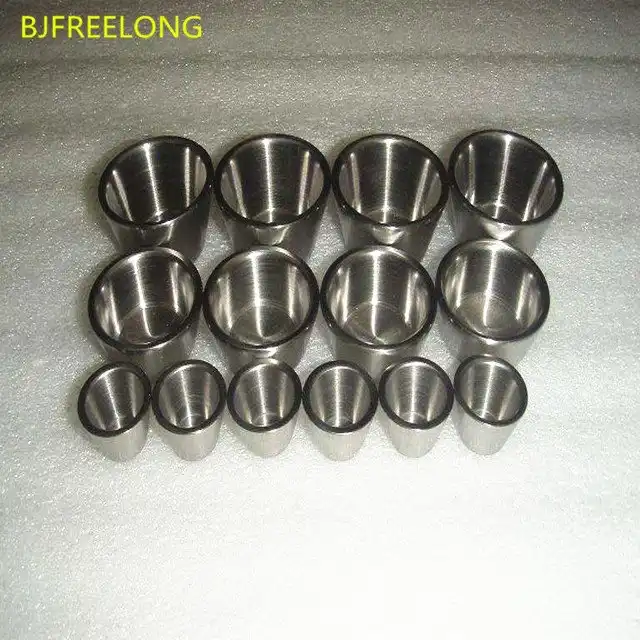

Picture display

705 Chemical composition of melting zirconium crucible and other grades

Grade	Element composition(%)<
Zr+Hf	Hf	Fe+Cr	Sn	H	N	C	Nb	O
R60702	99.2	4.5	0.20	--	0.005	0.025	0.05	--	0.16
R60703	98	4.5	--	--	--0.005	0.025	--	--	--
R60704	97.5	4.5	0.20~0.40	1.0~2.0	0.005	0.025	0.05	--	0.18
R60705	95.5	4.5	0.2	--	0.005	0.025	0.05	2.0~3.0	0.18
R60706	95.5	4.5	0.2	--	0.005	0.025	0.05	2.0~3.0	0.18

Relevant certificates

705 melting zirconium crucible in China

FAQ

A. Are you a factory or a trading company?

Our factory has 10 years of production experience.

B. Can you provide samples? MOQ?

Yes, we can provide you with free samples. MOQ: 1kg.

C. Do you accept customization?

Yes, we can process according to your unit weight or drawing.

D. Do you check the finished product?

Yes, every product will be checked by our QC before shipment.

E. How much is the shipping fee?

Mainly depends on weight, volume, package size and destination port.

F. What is your delivery time?

In stock, 7-15 days, if not, according to your quantity.

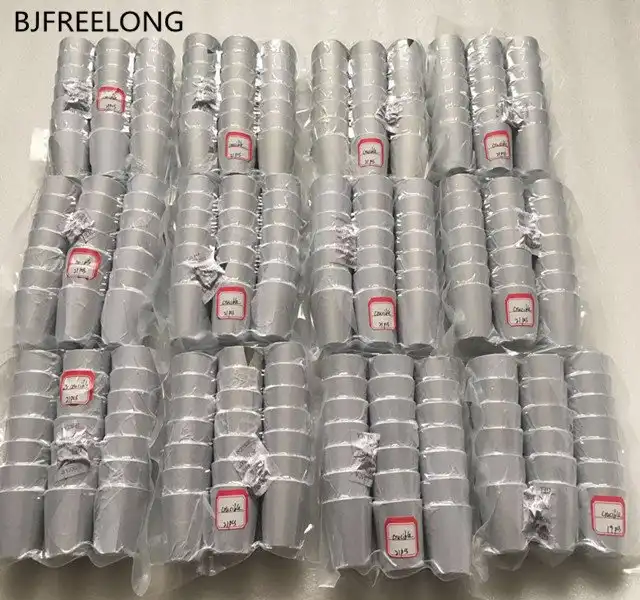

Our Packaging

Package

Testing Report

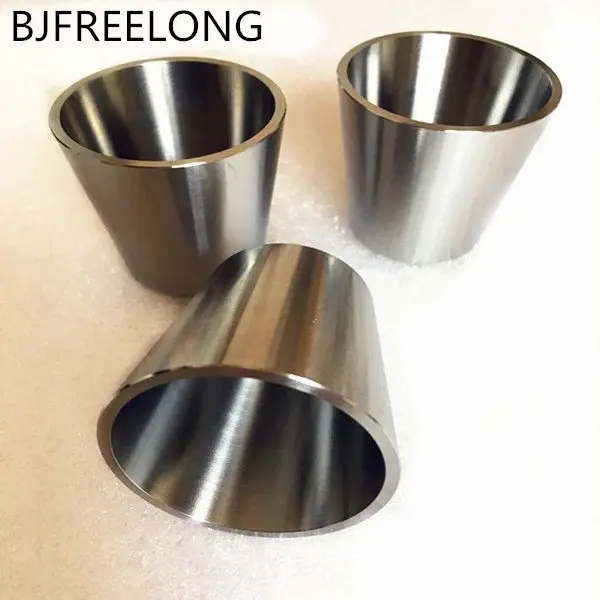

Zirconium Crucible
