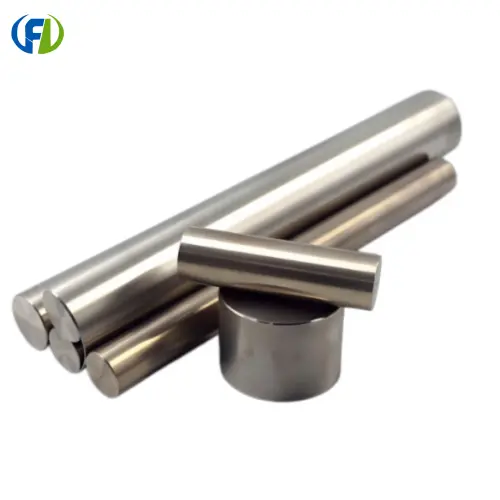

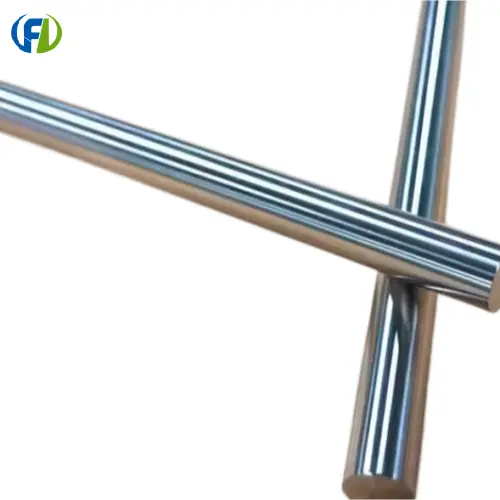

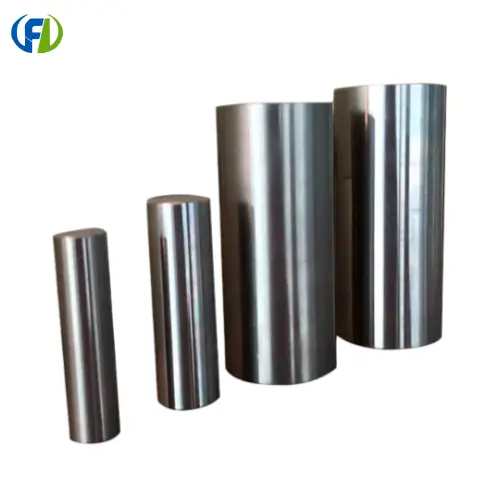

Titanium-zirconium alloy rod

I. Product Introduction
Ti-Zr Alloy Bar is a rod-shaped metallic material made from titanium as the base material, with the addition of zirconium (usually 2%~20%), through vacuum melting, forging, rolling, and precision machining. It combines the lightweight and high strength of titanium with the excellent corrosion resistance of zirconium, making it a key structural/functional material in high-end equipment applications.

1. Core Components

Matrix: Titanium (Ti)

Main Alloy: Zirconium (Zr) 2%~50% (commonly Ti-5Zr, Ti-10Zr, Ti-15Zr, Ti-50Zr)

Impurities: Iron, oxygen, nitrogen, hydrogen, etc. (strictly controlled to ensure high purity and low impurities)

2. Key Properties

Density: 4.4~6.5 g/cm³, close to pure titanium, far lower than steel and nickel-based alloys, significant lightweight advantage

Mechanical Properties: Tensile strength ≥750MPa, yield strength ≥650MPa, elongation ≥15%, strength superior to pure titanium, good toughness and ductility

Corrosion Resistance: Forms a dense oxide film on the surface, resistant to strong corrosive media such as seawater, hydrochloric acid, sulfuric acid, and chlorides, corrosion resistance superior to pure titanium

Thermal Properties: Heat resistance superior to pure titanium, can be used in… Long-term use at 450~500℃
Biocompatibility: Non-toxic, non-allergenic, excellent biocompatibility with human tissue, elastic modulus close to human bone
Machinability: Forgeable, rolled, turned, ground, and precision machined, suitable for manufacturing various parts
3. Specifications and Conditions
Diameter: φ3mm~φ200mm
Length: 100mm~6000mm
Conditions: Annealed (M), Solution-treated (ST), Cold-worked (H)
Surface: Black, Polished, Grinded, Machined
Standards: ASTM B348, ASTM B551, GB/T 2965, etc.
II. Main Application Areas
1. Medical Devices (Core Application)
Orthopedic Implants: Artificial Joints (Hip / 1. **Knee (knee), intramedullary nails, bone plates, bone screws:** Utilizing high strength, low elastic modulus, and biocompatibility.

Dental Applications:** Implants, crown frameworks, orthodontic wires; resistant to oral corrosion, no metallic odor, high osseointegration.

Surgical Instruments:** Surgical blades, clamps, minimally invasive instruments; lightweight, sterilization resistant, non-magnetic.

2. **Chemical and Corrosive Environments:**
Chemical Equipment:
Reaction vessel stirring shafts, heat exchanger tubes, tower components, pump valve stems; resistant to strong acids, strong alkalis, and high-temperature corrosion.
Chlor-alkali/Seawater Desalination:
Pipelines, flanges, fasteners; resistant to chloride ion and high-temperature brine corrosion.
Pharmaceutical/Food:
Purification equipment, pipelines; high purity, pollution-free, resistant to cleaning media.

3. **Aerospace:**
Aircraft Structural Components:
Supports, connectors, fasteners; lightweight, high strength, resistant to atmospheric/fuel corrosion.
Engine Components:
Low-temperature components, guide vanes; heat resistant, creep resistant, weight reduction and efficiency improvement.
Spacecraft Components:
Satellite structural components, rocket connectors; resistant to space environment, dimensionally stable.

4. **Marine Engineering:**
Ships/ Offshore Platforms: Propeller shafts, seawater pump shafts, bolts, deck components; resistant to seawater, salt spray, and marine microbial corrosion.
Underwater Equipment: Submarine components, marine monitoring equipment housings; long-term underwater stability and reliable strength.
5. Nuclear Industry
Reactor Components: Fuel cladding, in-core supports, control rod assemblies; low neutron absorption cross section, high-temperature water erosion stability.
Nuclear Chemical Equipment: Nuclear waste treatment, uranium refining components; resistant to strong radiation and highly corrosive media.
6. High-End Manufacturing and Others
Sports Equipment: Golf clubs, bicycle axles, ski equipment; lightweight, high strength, and impact resistant.
Electronics/Vacuum: Vacuum furnace components, electrodes, semiconductor components; high purity, low outgassing, and vacuum environment resistance.
III. Summary of Application Advantages
Replacing Pure Titanium: Comprehensive improvement in corrosion resistance, strength, and heat resistance; suitable for more demanding working conditions.
Replacing Zirconium: Lower cost, lower density, better processability, and high cost-effectiveness.
Replacing Stainless Steel/Nickel-Based Alloys: Comparable/superior corrosion resistance; 30%~50% weight reduction; extended equipment lifespan.

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!

Contact Us

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
