Technical parameters of zirconium pipe

Name: Zirconium pipe

Grade: Zr2 Zr4 Zr702 Zr705 Zr60804 Zr60001 Zr60901

Density: 6.51g/cm³

Diameter: 6-300mm

Wall thickness: 0.5-10mm

Length: <20meters

Or process according to customer's request.

Standard: ASTM B658,ASTM B353

Main steps of processing: Preparation of consumable electrodes, casting, forging, hot extrusion (tube blank), cold working and finishing.

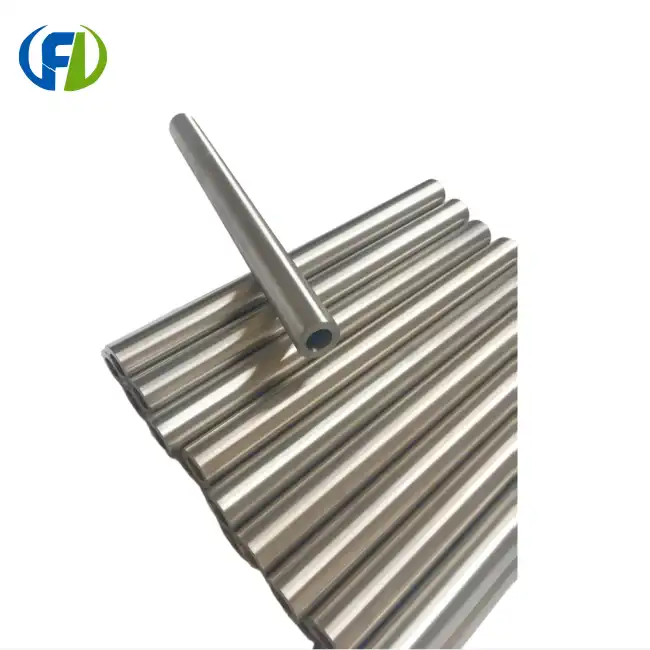

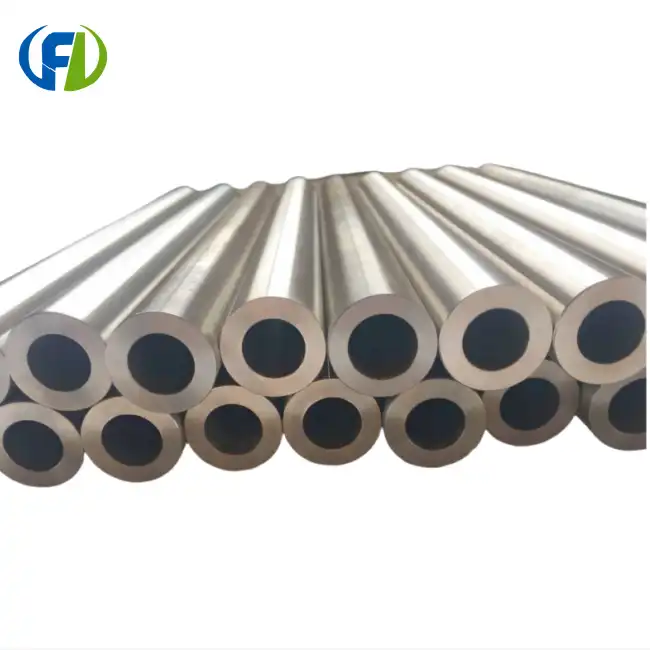

Zirconium Tube display picture

Element composition

Grade	Element composition(%)<									Standard
Grade	Zr+Hf	Hf	Fe+Cr	Sn	H	N	C	Nb	O	Standard
R60702	99.2	4.5	0.20	--	0.005	0.025	0.05	--	0.16	ASTM B658
R60703	98	4.5	--	--	--0.005	0.025	--	--	--
R60704	97.5	4.5	0.20~0.40	1.0~2.0	0.005	0.025	0.05	--	0.18
R60705	95.5	4.5	0.2	--	0.005	0.025	0.05	2.0~3.0	0.18
R60706	95.5	4.5	0.2	--	0.005	0.025	0.05	2.0~3.0	0.18
R60804	97.5	0.01	0.25~0.37	1.2~1.7	0.0025	0.008	0.027	--	0.09~0.16	ASTM B353
R60001	99.9	0.01	0.17	0.005	0.0025	0.008	0.027	--		ASTM B353

Advantages of zirconium tube

1. Excellent corrosion resistance
Can resist corrosion from strong acids such as hydrochloric acid, sulfuric acid and hydrofluoric acid, suitable for extreme chemical environments.

2. High strength and light weight
Provides excellent mechanical strength at a lighter weight, suitable for high-demand projects.

3. Excellent thermal stability
Can maintain mechanical properties for a long time under high temperature environment, and has good thermal shock resistance.

4. Seamless structure
The weld-free design ensures the safety and stability of the product under high pressure and high temperature conditions.

5 Biocompatibility
Will not react with the human body or other organic matter, suitable for medical and food processing applications.

Why choose us?

Engaged in import and export trade for twenty years.

Products are exported to more than 30 countries and regions at home and abroad.

The company has a good reputation and has many machines and equipment.

Competitive price, strict quality control system and on-time delivery.

We have our own factory to facilitate our supply.
