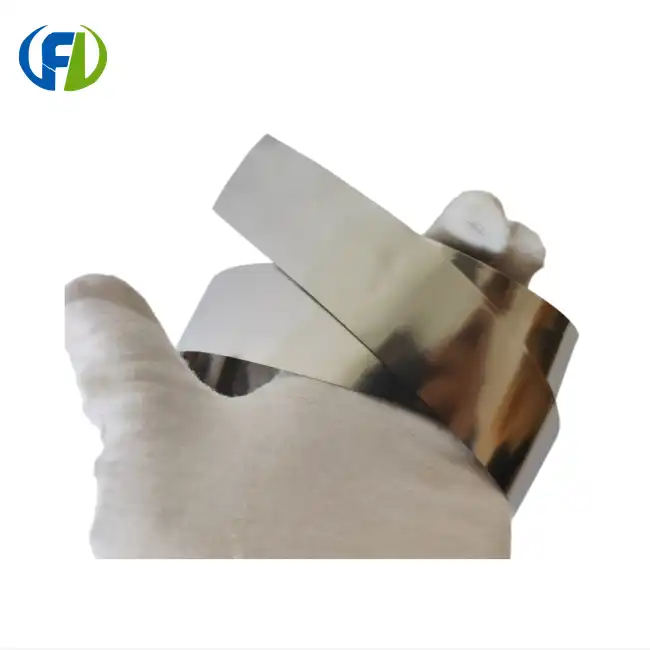

Zirconium foil in nuclear reactor applications

Cladding Material Performance Metrics

When evaluating the suitability of Zirconium foil for nuclear reactor applications, several key performance metrics must be considered. These metrics ensure that the cladding material can withstand the extreme conditions within a reactor core while maintaining its integrity and functionality throughout the fuel cycle.

Neutron Economy

One of the primary reasons Zirconium alloys are favored for nuclear fuel cladding is their excellent neutron economy. The low neutron absorption cross-section of Zirconium allows for efficient neutron utilization, maximizing the reactor's power output. This characteristic is crucial for maintaining a sustainable chain reaction and optimizing fuel burnup rates.

Corrosion Resistance

The ability to resist corrosion in high-temperature water and steam environments is paramount for cladding materials. Zirconium-based alloys exhibit exceptional corrosion resistance, forming a protective oxide layer that prevents further degradation. This property ensures the longevity of fuel rods and minimizes the risk of radioactive material release.

Mechanical Properties

Zirconium foil cladding must maintain its structural integrity under various stresses, including thermal expansion, internal pressure from fission gas buildup, and external coolant pressure. The high strength-to-weight ratio and ductility of Zirconium alloys make them ideal for withstanding these mechanical challenges while allowing for necessary dimensional changes during reactor operation.

Thermal Conductivity

Efficient heat transfer from the fuel to the coolant is essential for reactor performance and safety. Zirconium alloys possess adequate thermal conductivity to facilitate this heat transfer process, ensuring that fuel temperatures remain within acceptable limits and preventing overheating scenarios.

Long-term Radiation Damage Effects

The prolonged exposure of Zirconium foil to intense radiation fields within nuclear reactors leads to various long-term effects that must be carefully managed to ensure the continued safe operation of the reactor. Understanding these radiation damage mechanisms is crucial for predicting cladding behavior and developing strategies to mitigate potential issues.

Microstructural Changes

Neutron irradiation causes significant changes in the microstructure of Zirconium alloys over time. These changes include the formation of dislocation loops, voids, and precipitates, which can alter the material's mechanical properties. The accumulation of these defects can lead to radiation-induced growth and hardening, potentially affecting the dimensional stability and ductility of the cladding.

Hydrogen Embrittlement

During reactor operation, Zirconium cladding undergoes a corrosion process that releases hydrogen. Some of this hydrogen is absorbed into the metal matrix, leading to the formation of hydrides. These hydrides can cause embrittlement, reducing the cladding's ductility and increasing its susceptibility to cracking under stress. Managing hydrogen pickup and distribution within the cladding is crucial for maintaining its integrity throughout the fuel cycle.

Irradiation Creep

Zirconium alloys exhibit irradiation-enhanced creep behavior under the combined effects of stress and neutron flux. This phenomenon can result in dimensional changes of the fuel rods, potentially affecting coolant flow and heat transfer characteristics. Understanding and predicting irradiation creep is essential for optimizing fuel assembly designs and preventing interference between components.

Amorphization and Phase Transformations

High-energy particle bombardment can induce localized amorphization and phase transformations in Zirconium alloys. These structural changes can affect the material's properties, including its corrosion resistance and mechanical behavior. Monitoring and mitigating these effects are crucial for ensuring the long-term performance of the cladding material.

Failure Modes in Reactor Conditions

Despite the robust properties of Zirconium foil, prolonged exposure to extreme reactor conditions can lead to various failure modes. Understanding these potential failure mechanisms is critical for developing preventive measures and improving overall reactor safety.

Pellet-Cladding Interaction (PCI)

PCI occurs when the fuel pellet expands and comes into contact with the cladding, inducing stress and potential cracking. This interaction can be exacerbated by fission product-induced stress corrosion cracking, particularly in the presence of aggressive fission products like iodine. Managing power ramps and implementing protective fuel designs are essential strategies for mitigating PCI-related failures.

Fretting Wear

Vibrations induced by coolant flow can cause fretting wear at contact points between the fuel rods and spacer grids. This mechanical wear can lead to cladding thinning and potential breach points. Optimizing fuel assembly designs and implementing wear-resistant coatings are common approaches to address this issue.

Oxidation and Hydriding

While Zirconium alloys form a protective oxide layer, excessive oxidation can lead to spalling and accelerated corrosion. Additionally, hydrogen absorption and hydride formation can compromise the cladding's mechanical properties. Balancing alloying elements and optimizing surface treatments are ongoing areas of research to enhance oxidation and hydriding resistance.

Thermal and Mechanical Fatigue

Cyclic thermal and mechanical stresses during reactor operation and power cycling can lead to fatigue-induced cracking. This is particularly concerning at points of stress concentration, such as weld zones or regions with pre-existing defects. Implementing appropriate operational protocols and improving manufacturing processes are key to minimizing fatigue-related failures.

In conclusion, the application of Zirconium foil in nuclear reactor environments represents a critical intersection of materials science and nuclear engineering. As the nuclear industry continues to evolve, ongoing research and development efforts focus on enhancing the performance and reliability of Zirconium-based cladding materials. These advancements aim to push the boundaries of reactor efficiency, safety, and longevity, ensuring that nuclear energy remains a viable and sustainable power source for generations to come.

For those seeking high-quality Zirconium foil and other specialized metal materials for nuclear and industrial applications, Baoji Freelong New Material Technology Development Co., Ltd. stands as a trusted partner. Located in China's Titanium Valley, our company specializes in the production and export of Zirconium, Titanium, Nickel, Niobium, Tantalum, and various alloys. With a global network spanning Australia, Korea, Germany, the US, UK, Malaysia, and beyond, we pride ourselves on delivering products that meet and exceed our customers' exacting standards. Our unwavering commitment to quality and service has established us as a reliable supplier in the international market. To explore how our Zirconium foil solutions can benefit your nuclear reactor applications or other industrial needs, please contact us at jenny@bjfreelong.com. Let us help you achieve your materials goals with our expertise and dedication to excellence.

References

1. Adamson, R. B., et al. (2019). "Zirconium Alloys for Nuclear Reactor Applications: A Review of Material Properties and In-Reactor Performance." Journal of Nuclear Materials, 509, 582-610.

2. Motta, A. T., et al. (2015). "Zirconium Alloys for Supercritical Water Reactor Applications: Challenges and Possibilities." Journal of Nuclear Materials, 466, 99-110.

3. Dai, Y., et al. (2018). "Microstructural Evolution of Zirconium Alloys under Irradiation: A Review." Journal of Nuclear Materials, 513, 226-244.

4. Billone, M., et al. (2020). "Cladding Embrittlement During Postulated Loss-of-Coolant Accidents." NUREG/CR-7219, U.S. Nuclear Regulatory Commission.

5. Bai, J. B., et al. (2017). "Hydride Embrittlement in Zirconium Alloy Fuel Cladding." Progress in Nuclear Energy, 96, 26-39.

6. Kim, H. G., et al. (2016). "Development Status of Accident-Tolerant Fuel for Light Water Reactors in Korea." Nuclear Engineering and Technology, 48(1), 1-15.
