Zirconium Foil

Brand: FRL Metal
Place of Origin: Baoji, Shaanxi, China
Melting point: 1852℃
Density: 6.51g/cm3
Material: Zr60001、 Zr60802、Zr60804、Zr60901、Zr60904、Zr60702、Zr60703、Zr60704、Zr60705、Zr60706
Standard requirements: ASTM B551 ASTM B352 ASTM B353 ASTM B351 ASTM B350 ASTM B811
Certification: ISO9001
Delivery Time:5~7days

Send Inquiry

Download

Product Description

Zirconium Foil description

Zirconium foil is a type of thin sheet made from high-purity zirconium. It is a versatile and high-performance material widely used in various industries, including aerospace, electronics, chemical processing, nuclear, and medical.

The uses of zirconium foil are many, and some of the most common are:

Heat shields: Zirconium foil is an excellent insulator and can withstand extremely high temperatures. Thus it is often used as a heat shield in aerospace and military applications.

Nuclear industry: Zirconium is a corrosion-resistant and low neutron absorption material, which makes it ideal for use in nuclear reactors. Zirconium foil is used in nuclear fuel cladding to protect the fuel from corrosion and ensure its integrity.

Chemical processing: Zirconium foil is chemically inert, non-toxic, and has excellent resistance to acidic and alkaline solutions. As a result, it is frequently used in chemical processing applications, such as vessels, valves, and pumps.

Electronics: Zirconium has a high melting point, so it is useful for making electrical contacts that experience high temperatures. Zirconium foil is also used in high-performance capacitors, as its low dielectric constant allows for high capacitance values.

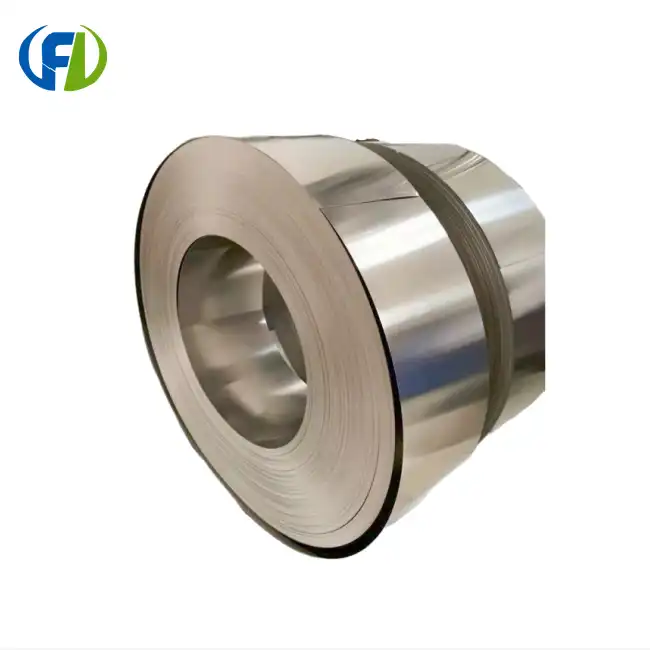

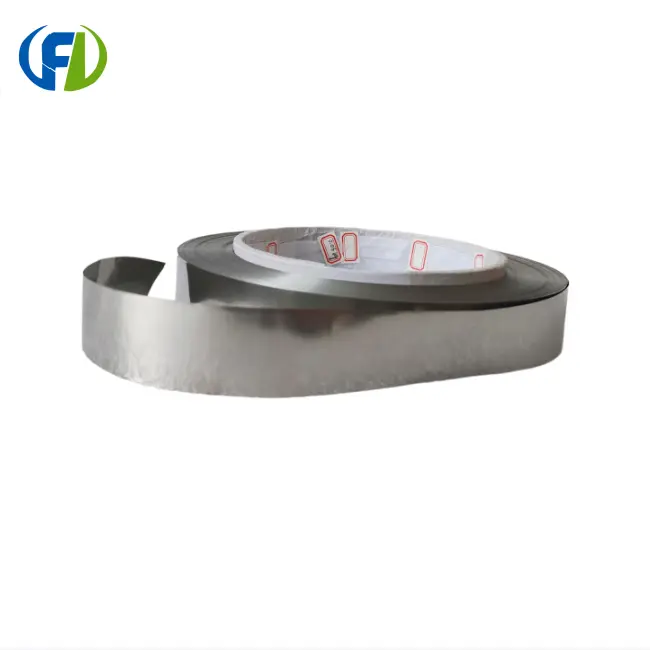

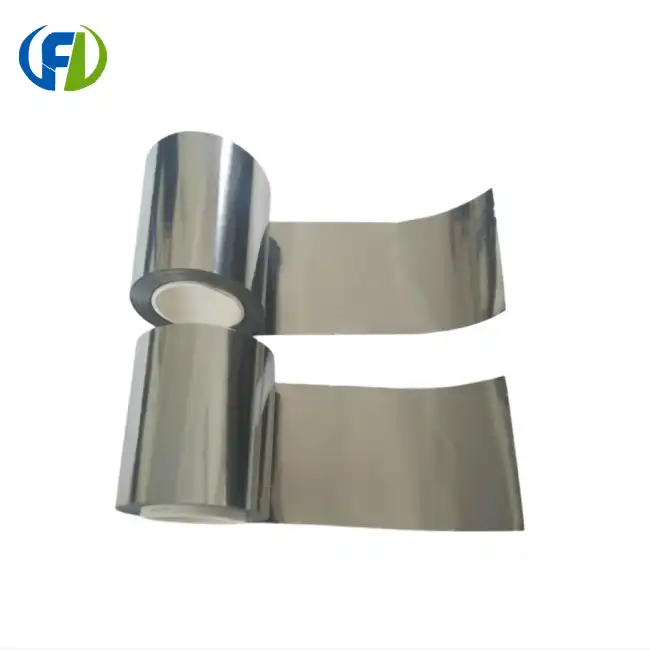

Zirconium Foil picture display

Name, condition and size of zirconium foil

Designation	Description	condition	size(mm)
			Thickness	Width	Length
Zr60001 Zr60802 Zr60804 Zr60901 Zr60904 Zr60702 Zr60703 Zr60704 Zr60705 Zr60706	Foil	Cold rolling(R) Recrystallized (Y) Eliminate stress state (m)	0.05~0.13	50~200	≥500


	Strip		>0.13~0.5	50~300	≥300
	Plate		>0.3~10.0	50~600	≥500

Zirconium Foil Element Composition

Grade	Element composition(%)<										Standard
Grade	Zr+Hf	Hf	Fe	Fe+Cr	Sn	H	N	C	Nb	O	Standard
R60702	99.2	4.5		0.2	/	0.005	0.025	0.05	/	0.16	ASTM B551 ASTM B352 ASTM B353 ASTM B351 ASTM B350 ASTM B811
R60703	98	4.5		/	/	0.005	0.025	/	/	/
R60704	97.5	4.5		0.20~0.40	1.0~2.0	0.005	0.025	0.05	/	0.18
R60705	95.5	4.5		0.2	/	0.005	0.025	0.05	2.0~3.0	0.18
R60706	95.5	4.5		0.2	/	0.005	0.025	0.05	2.0~3.0	0.18
R60001	/	0.010	0.150	/	0.0050	0.0025	0.0065	0.027	/	/
R60802 (Zr-2)	/	0.010	0.07-0.20	/	1.20-1.70	0.0025	0.0065	0.027	/	0.09-0.16
R60804 (Zr-4)	/	0.010	0.18-0.24	0.28-0.37	1.2-1.70	0.0025	0.0065	0.027	/	0.09-0.16
R60901 (Zr-2.5Nb)	/	0.010	0.150	/	0.0050	0.0025	0.0080	0.027	2.40-2.80	0.09-0.15
R60904 (Zr-2.5Nb)	/	0.005	0.065	/	0.010	0.0025	0.0065	0.015	2.50-2.80	0.01-0.14

Zirconium foil Product Description

Item	Zirconium foil
Standard	ASTM B551 ASTM B352 ASTM B353 ASTM B351 ASTM B350 ASTM B811
From	Single strip, or on spool. Slitting service available
Status	Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
Application	1.Chemical processing, medical instruments etc. 2.Aerospace,Indusrty,Navigation,Smelting,Chemical plants 3.Plate heat exchanger, and condensers
