Nickel Pipe

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 8.9g/cm³
Grade :Nickel 200, Nickel 201 N4,N5,N6,N7,N8
Standard : ASTM B161-3
Certification: ISO 9001:2015
Delivery time: 7-15 days
Payment terms: L/C, T/T
Export port: any port in China
Express: Fedex, TNT, DHL and EMS shipping

Send Inquiry

Download

Product Description

Nickel Pipe Specifications

Material:Nickel

Grade :Nickel 200, Nickel 201 ,N4,N5,N6,N7,N8

Standard : ASTM B161-3

Purity 99.6~99.9%

Method: Cold-rolled,drawn,welding

Condition:Y,M

Nickel Pipe application

1）It has high power vacuum performance,good corrosion resistance ,oxide cathode tube can be used as a core.

2) 70% Ni was used in produce stainless steel and heat resistance steel.

3) 15% of the Ni in the world was used as electroplating.

4) Used as catalyst in oil industry.

5) Ni is one of the chemical source of energy ,the need material for battery.

6) Used to make pigment,dye,ceramic,and ferrite.

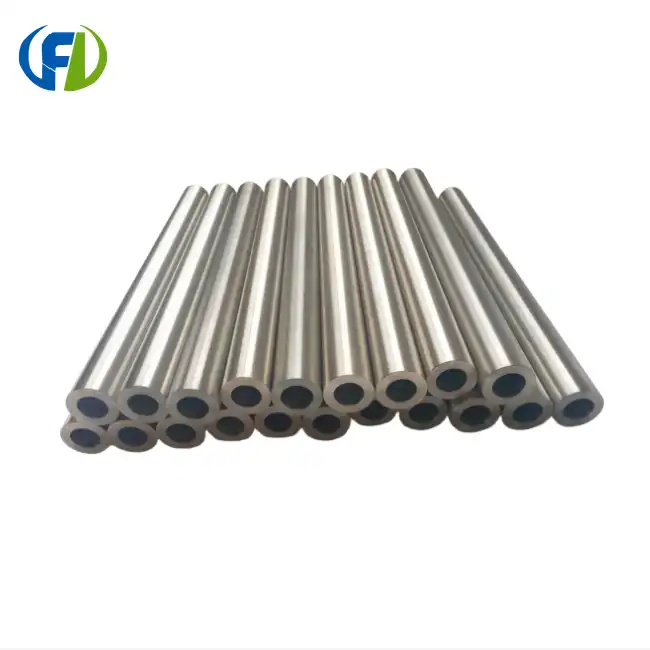

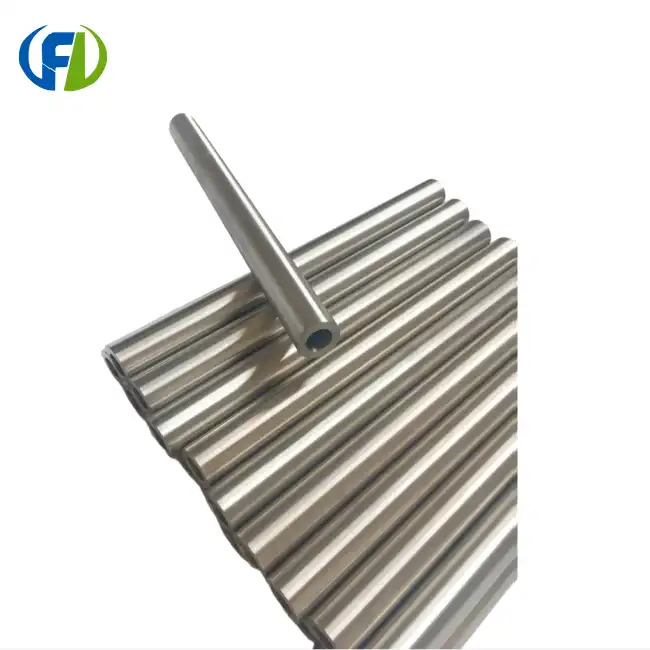

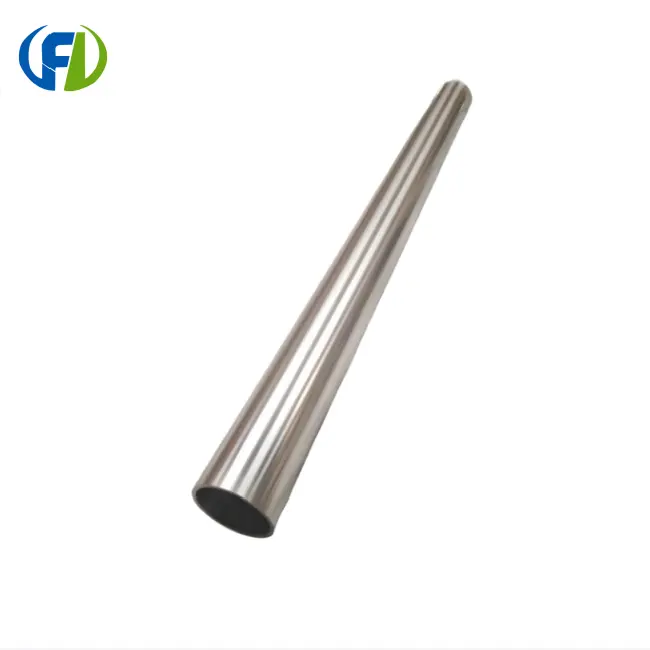

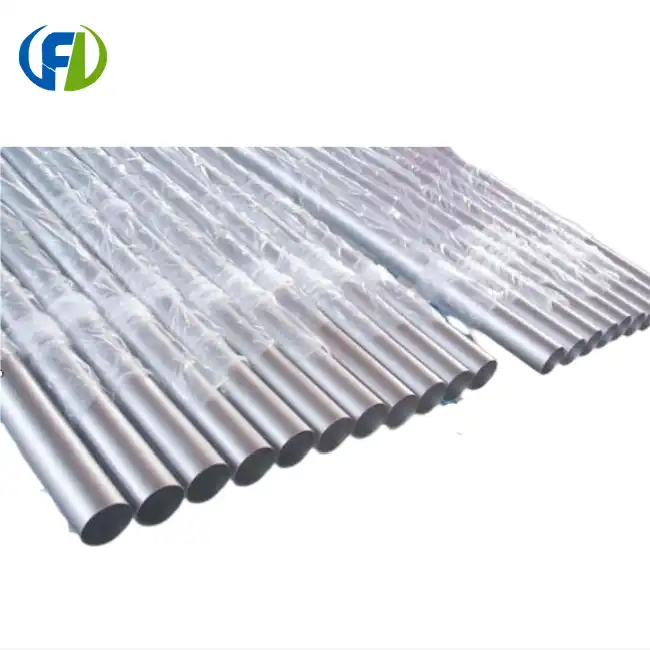

Nickel Pipe Picture display

Nickel Pipe detials

Item	Nickel pipe,nickel tube,seamless nickel tube,welded nickel tube
Standard	ASTM B161,ASTM B163,DIN177512002,ASTM B165,ASTM B619,ASTM B622, ASTM B626,ASTM B167,ASTM B516, ASTM B444,ASTM B464,ASTM B468,etc
Material	N7,N5,N4,N1,NO2200,NO2201,LC-NI99,NiCu30,NO4400,NO6002,NO6007, NO6022,NO6030,NO6625,NO6690,NO8020,NO8700,NO8800,etc
Outside diameter	4-914mm
Wall thickness	0.3-100mm
Length	1m,2m,3m,6m,or as required

Nickel Pipe Chemical Compositon

Element(%)	Ni	Cu	Fe	Mn	C	Si	S
UNS NO2200	Min99.0	0.25	0.4	0.35	0.15	0.35	0.01
Element(%)	Ni	Cu	Fe	Mn	C	Si	S
UNS NO2201	Min99.0	0.25	0.4	0.35	0.02	0.35	0.01

Nickel Pipe Mechanical properties

Diameter	Tensile strength,minmpa,pound/in2		Yieldstrength(0.2%offset) ,min Pound/in2		Elongation in 4D or 4W min,%
Diameter	UNS N02200	UNS N02201	UNS N02200	UNS N02201	UNS N02200	UNS N02201
Annealed
Outer,diameter<=5in(127mm	55000 (380)	50 000 (345)	15 000 (105)	12 000 (80)	35	35
Outer diameter <5in(127mm)	55 000 (380)	50 000 (345)	12 000 (80)	10 000 (70)	40	40
Stress relieving
Diamention	65 000 450	60 000 415	40 000 275	30 000 205	15	15
