Nickel and Nickel Alloy Wire

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 8.9g/cm³
Certification: ISO 9001:2015
Delivery time: 7-15 days
Payment terms: L/C, T/T
Export port: any port in China
Express: Fedex, TNT, DHL and EMS shipping

Send Inquiry

Download

Product Description

Nickel and Nickel Alloy Wire Application

Mainly used in electric apparatus and chemical machinery,such as For vacuum coating,

For making valves grid, inner components of vacuum valves,Components insides the electron tubes,For making lead, supporting wire,For battery production,Components insides the electron tubes,Transistor caps;Anodes for electronic tubes;Leads of electronic components;Lead-in-wires for lamps and for wire-mesh;Typical applications include: terminations for heating elements as in ovens, plastics extruders, furnaces. Filament supports and lead wires in the lighting industry.

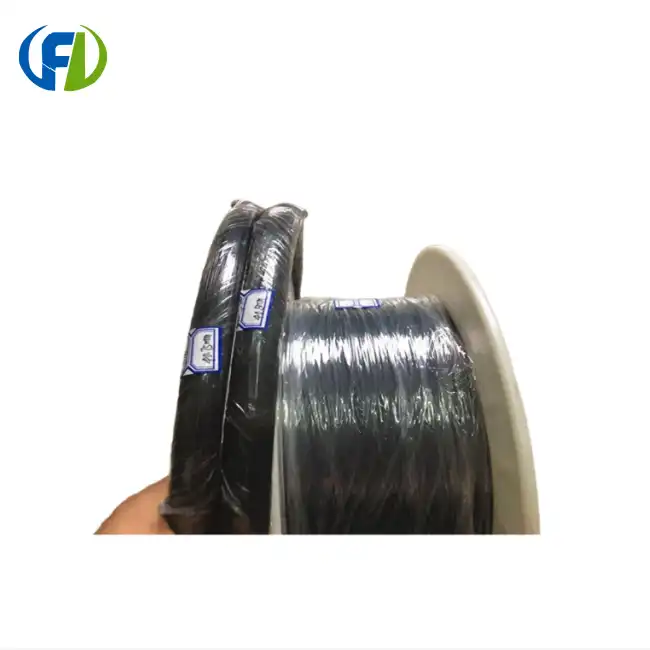

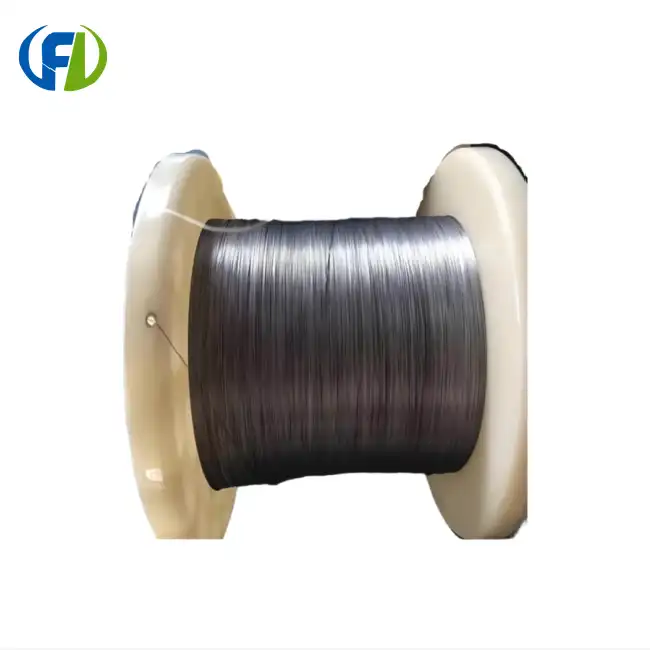

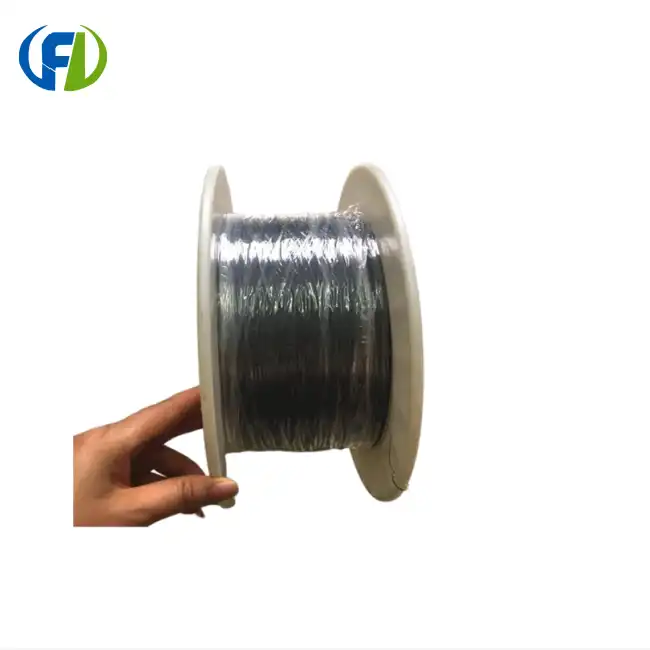

Nickel and Nickel Alloy Wire Picture display

Nickel and Nickel Alloy Wire Characteristics

1. Good resistance to corrosion in acids and alkalis and is most useful under reducing conditions.

2. Outstanding resistance to caustic alkalis up to and including the molten state.

3. Virtually immune to inter granular attack above 315 ºC, chlorates must be kept to a minimum.

4. In acid, alkaline and neutral salt solutions the material shows good resistance, but in oxidising salt solutions severe attack will occur.

5. Resistant to all dry gases at room temperature and in dry chlorine and hydrogen chloride may be used in temperatures up to 550 ºC.

6. Resistance to mineral acids varies according to temperature and concentration and whether the solution is aerated or not. Corrosion resistance is better in de-aerated acid.

Nickel and Nickel Alloy Wire Specifications

Diameter	Size of reel(Outside dia.*height)(mm)	Weight of empty spool (Kg)	Weight of full spool (Kg)	Spools per carton
≤0.2mm	70*90	0.04	1	12
0.2~0.3mm	100*90	0.1	2	12
0.3~0.4mm	125*120	0.15	3	6
0.4~0.5mm	160*120	0.29	5	4
0.5~1.0mm	200*122	0.45	10	2
0.6~1.0mm	250*200	1	20	1

Nickel and Nickel Alloy Wire chemical composition

Coad number	Ni	Mn	C	Cu	Si	Fe	S
N4	99.9	0.002	0.01	0.01	0.03	0.04
N6	99.5	<0.05	< 0.10	< 0.03	< 0.10	< 0.10	< 0.005

Element	Measured Value [ppm]	Element	Measured Value [ppm]	Element	Measured Value [ppm]
Ag	<0.1	Hf	<0.5	Re	<0.5
Al	6	Hg	<0.1	Rh	<0.5
As	<0.1	In	<1	Ru	2
Au	<0.1	Ir	<0.1	Sb	<0.1
B	<0.5	K	<1	Se	21
Ba	<0.5	Li	<1	Sn	<1
Be	<0.1	Mg	413	Sr	<0.1
Bi	<0.5	Mn	7	Ta	<0.5
Ca	75	Mo	<0.5	Te	<0.1
Cd	<0.1	Na	1	Tl	<0.1
Co	460	Nb	<0.5	Ti	<1
Cr	57	Ni	Matrix	U	<0.1
Cu	95	Os	<1	V	<0.1
Fe	385	Pb	5	W	<0.1
Ga	10	Pd	<0.1	Zn	<1
Ge	<1	Pt	<0.5	Zr	1

Nickel and Nickel Alloy Wire Physical and Mechanical Properties

Tensile Strength	ksi	65
	MPa	449
Yield Strength	ksi	20
	MPa	138
Melting Point		1728K/2651ºF/1455 ºC
Density	g.cm-3	8.9(20 ºC)
Hardness	HB	335(25 ºC)
Purity		99.5%~99.9%
