cold rolling niobium plates

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Purity: 99.95% Nb1/Nb2
Density: 8.57 g/cm³
Width: Up to 1000mm
Length: Up to 3000mm (customizable)
Thickness: 0.3–10 mm
Flatness: ≤0.03 mm Process: Cold rolled for superior surface precision and ductility
Standard: ASTM B393
Certification：ISO9001
Delivery Time:5~7days
Payment Terms:T/T
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

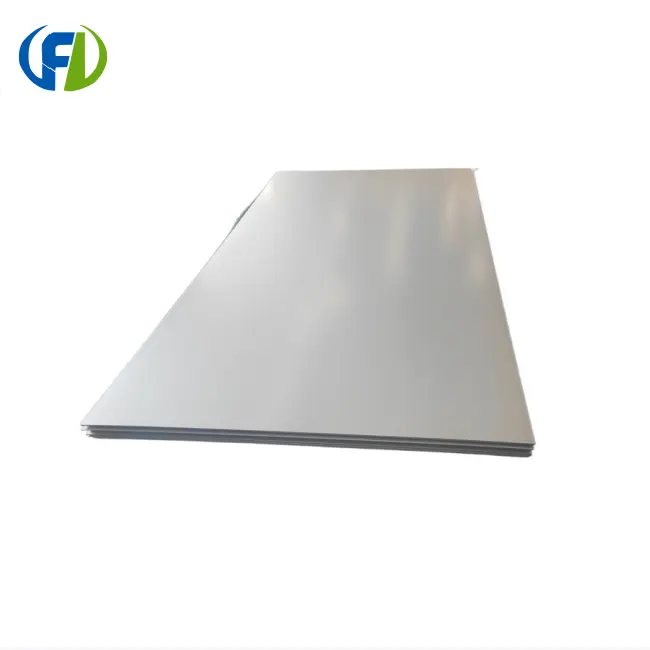

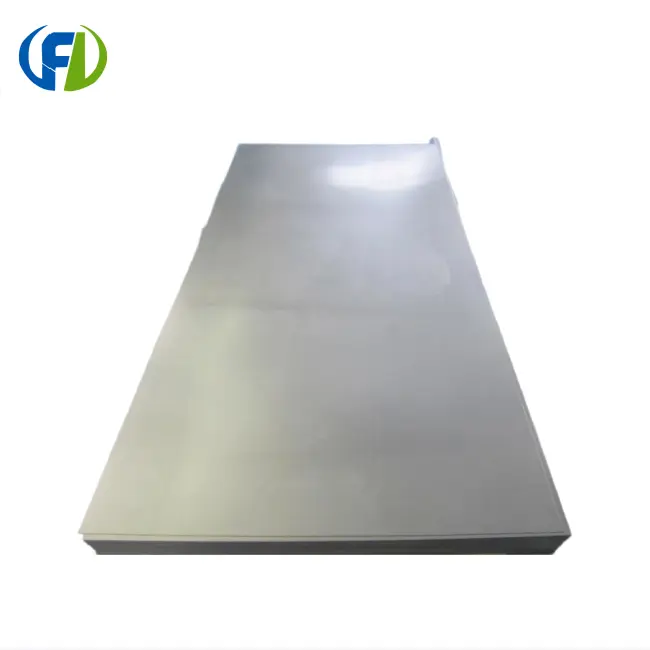

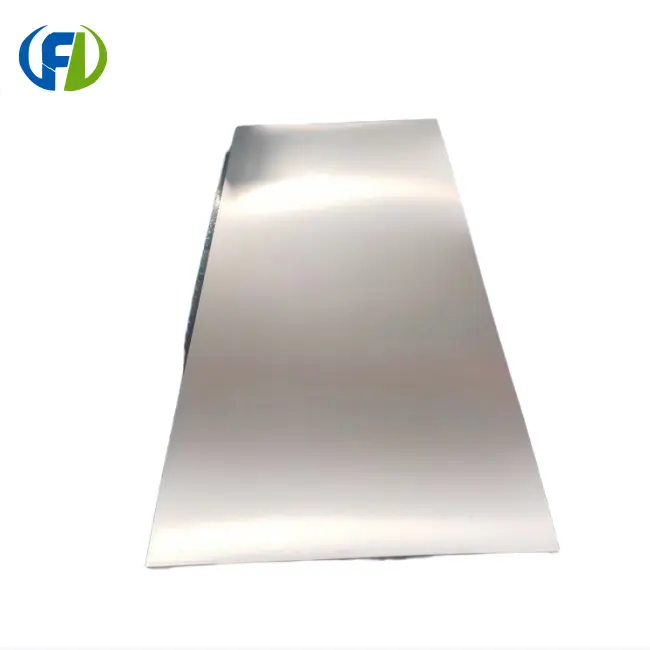

Cold Rolling Niobium Plates - Premium Quality for Advanced Applications

Product Introduction

When you need superior surface precision and exceptional ductility for demanding applications, our cold rolling niobium plates deliver unmatched performance. Located in Baoji City - China's Titanium Valley, Baoji Freelong New Material Technology Development Co., Ltd. specializes in producing high-quality niobium plates through advanced cold rolling processes. Our cold rolled niobium plates offer enhanced mechanical properties with thickness ranging from 0.3–10 mm and exceptional flatness of ≤0.03 mm. These precision-engineered plates provide 15–25% increased mechanical strength compared to hot-rolled alternatives, featuring a bright surface finish with Ra ≤ 0.15 μm roughness.

Technical Specifications

Our niobium plates meet stringent industry standards with precise dimensional control:

Thickness Range: 0.3mm - 10mm
Width: Up to 1000mm
Length: Up to 3000mm (customizable)
Flatness Tolerance: ≤0.03mm
Surface Roughness: Ra ≤ 0.15μm
Purity: 99.95% minimum
Density: 8.57 g/cm³
Melting Point: 2477°C
Tensile Strength: 200-400 MPa (depending on thickness)

Key Features and Benefits

You'll appreciate these outstanding characteristics of our niobium plates:

Enhanced Surface Quality: Cold rolling process creates mirror-like surfaces perfect for precision applications.

Superior Ductility: Excellent formability allows complex shaping without cracking or stress concentration.

Increased Strength: Cold working enhances mechanical properties while maintaining excellent corrosion resistance.

Dimensional Precision: Tight tolerances ensure consistent performance in critical applications.

Chemical Stability: Outstanding resistance to acids and alkalis at elevated temperatures.

Biocompatibility: Safe for medical and food processing applications.

Quality Control and Testing

We implement rigorous quality assurance measures throughout production:

Chemical composition analysis using advanced spectroscopy
Mechanical property testing including tensile and hardness measurements
Surface quality inspection with precision measuring equipment
Dimensional verification using coordinate measuring machines
Ultrasonic testing for internal defect detection
Certificate of compliance provided with each shipment

Packaging and Shipping

Your orders receive careful handling with professional packaging:

Individual sheets wrapped in protective film
Wooden crates with foam padding for international shipping
Vacuum packaging available for moisture-sensitive applications
Custom packaging solutions for special requirements
Express shipping options available worldwide
Comprehensive shipping insurance coverage

Contact Information

Ready to discuss your niobium plate requirements? We're here to help you find the perfect solution.

Email: jenny@bjfreelong.com

WhatsApp: +86 13571190943

Contact us today for detailed quotations, technical specifications, or to discuss your custom requirements. Our team responds promptly to all inquiries and looks forward to supporting your next project with premium cold rolling niobium plates.
