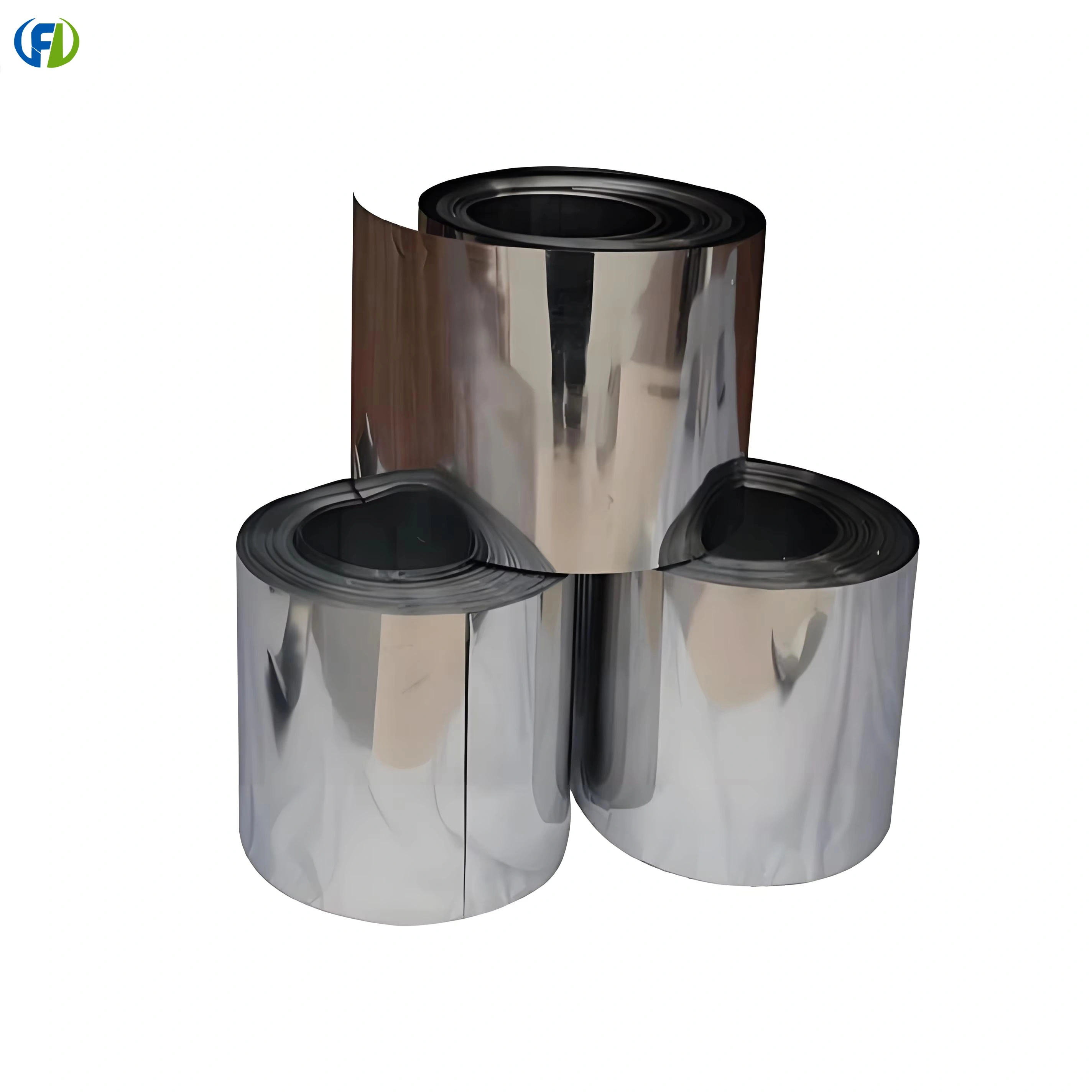

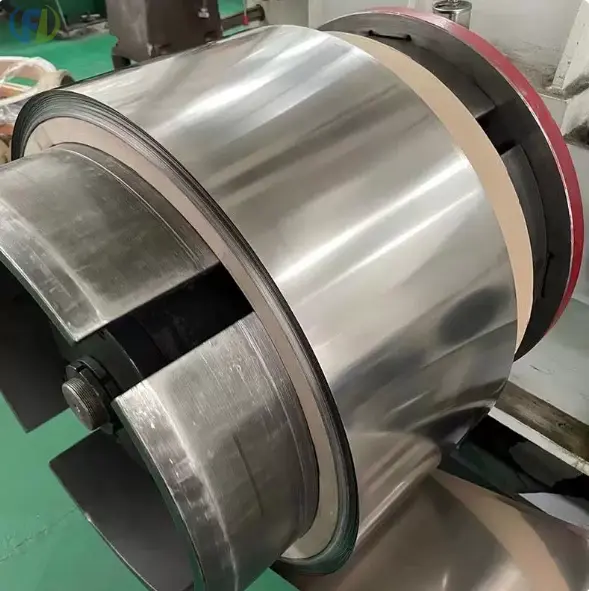

0.05mm high-temperature resistant tantalum foil

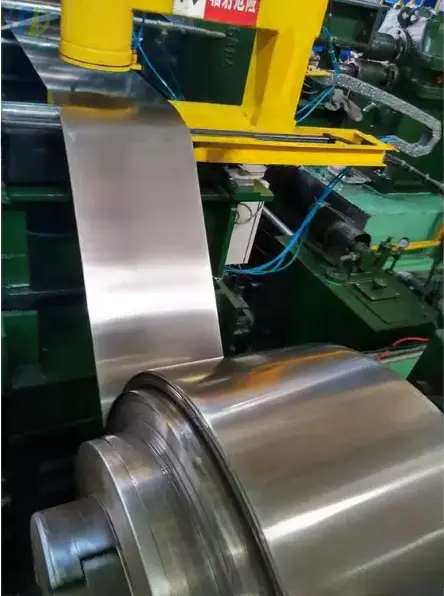

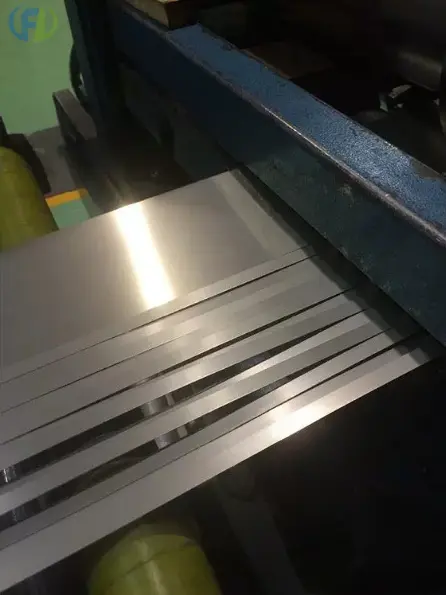

Tantalum foil is an ultra-thin metal sheet made of high-purity tantalum (Ta) through vacuum melting, precision rolling and annealing. It is typically 0.01–0.1 mm thick and has a purity of 99.9%–99.999%.

1. Core Characteristics

High Melting Point and High Temperature Stability: Melting point approximately 3000°C, maintaining strength and shape at high temperatures, suitable for vacuum/high-temperature furnaces and heat shielding layers.

Extreme Corrosion Resistance: Only hydrofluoric acid corrodes it at room temperature; resistant to strong corrosive media such as hydrochloric acid, sulfuric acid, and aqua regia; surface self-passivates to form a dense oxide film.

Excellent Mechanical and Machinability: Body-centered cubic structure, room temperature tensile strength 240–300 MPa, elongation 25%–40%, suitable for micro-stamping, winding, and laser welding.

Stable Electrical Properties: Dielectric constant approximately 27, extremely low leakage current (<1 nA/cm²), ideal material for high-reliability capacitors and thin-film circuits.

Biocompatibility: Non-toxic and bio-inert, suitable for implantable materials and medical electrodes.

II. Main Applications

1. Electronics and Semiconductors (Largest Application Area)

Tantalum electrolytic capacitor anodes: High specific capacitance, low leakage current, long lifespan; used in key energy storage/filtering components such as mobile phones, computers, automotive electronics, and 5G base stations.

Semiconductor sputtering targets: Deposit Ta/TaN barrier layers and Ta₂O₅ high-k dielectric films; used in advanced process chips (such as CPUs and memory).

OLED evaporation boats/heat shields: High temperature resistant, non-polluting; used for heat shielding in organic material evaporation and photolithography processes.

2. Chemical Corrosion Protection
Reaction vessel/container linings, tower packing, heat exchangers: Resistant to strong acids/halogens; used in highly corrosive environments such as fine chemicals, pharmaceuticals, and hydrometallurgy.

3. Medical and Bioengineering
Implantable electrodes, nerve stimulation electrodes, cranial repair mesh, artificial joint coatings: Biocompatible, good osteoconductivity, safe for long-term implantation.

Electrode patches for beauty instruments: Conductive, resistant to skin secretions corrosion; suitable for precision care devices.

4. Aerospace and High Temperatures

Spacecraft thermal shielding/radiation protection: Laminated with aluminum to form lightweight, multi-layered shields, protecting sensitive circuits from space radiation.

Aircraft engine hot-end components, vacuum furnace/sintering furnace linings: High temperature resistance, creep resistance, adaptable to extreme operating conditions.

5. Energy and Nuclear Industry
Nuclear reactor control rods/shielding layers, fuel cell electrodes, superconducting cavities: Low neutron absorption cross-section, stable, used in nuclear energy and new energy equipment.

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

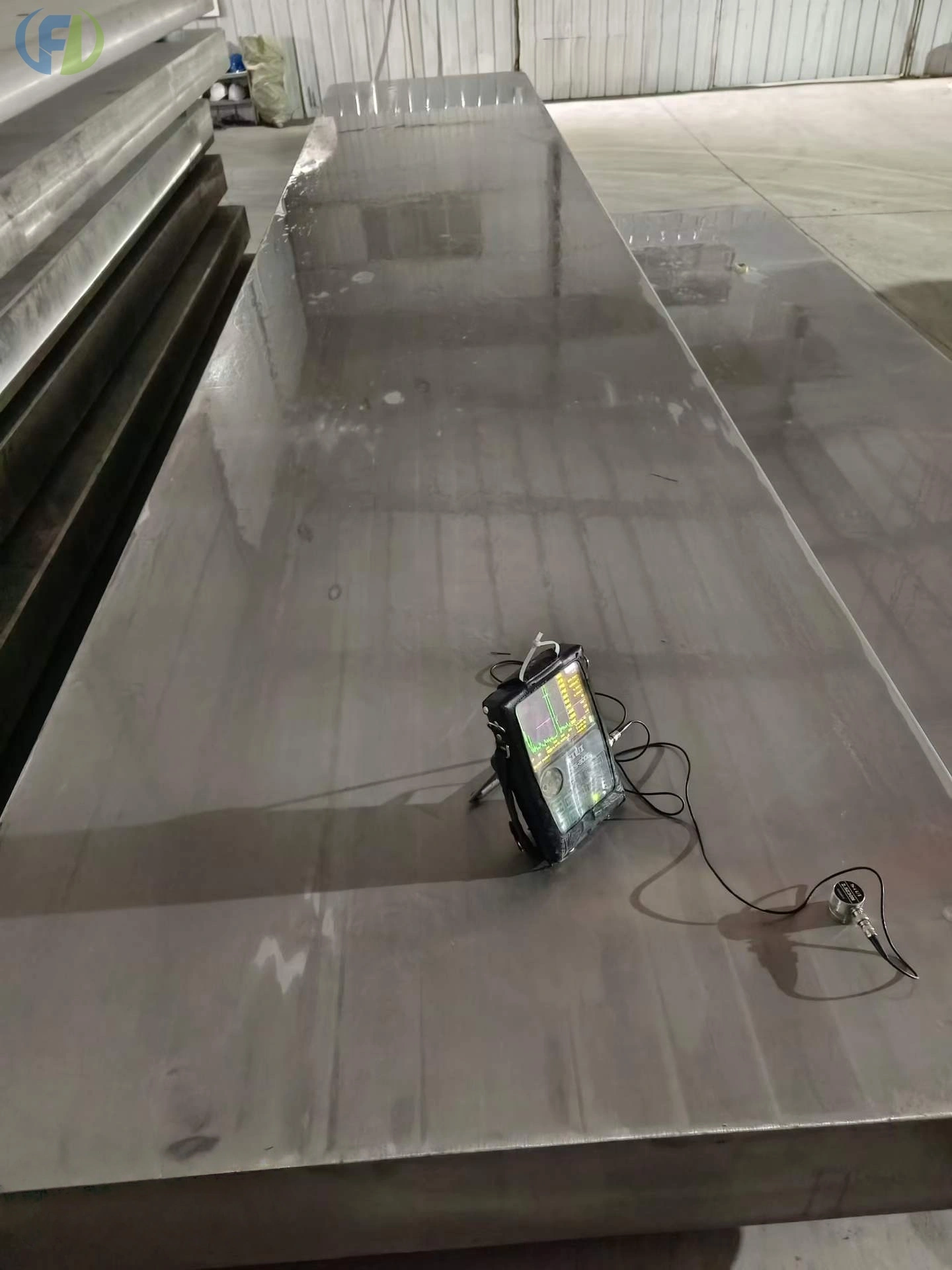

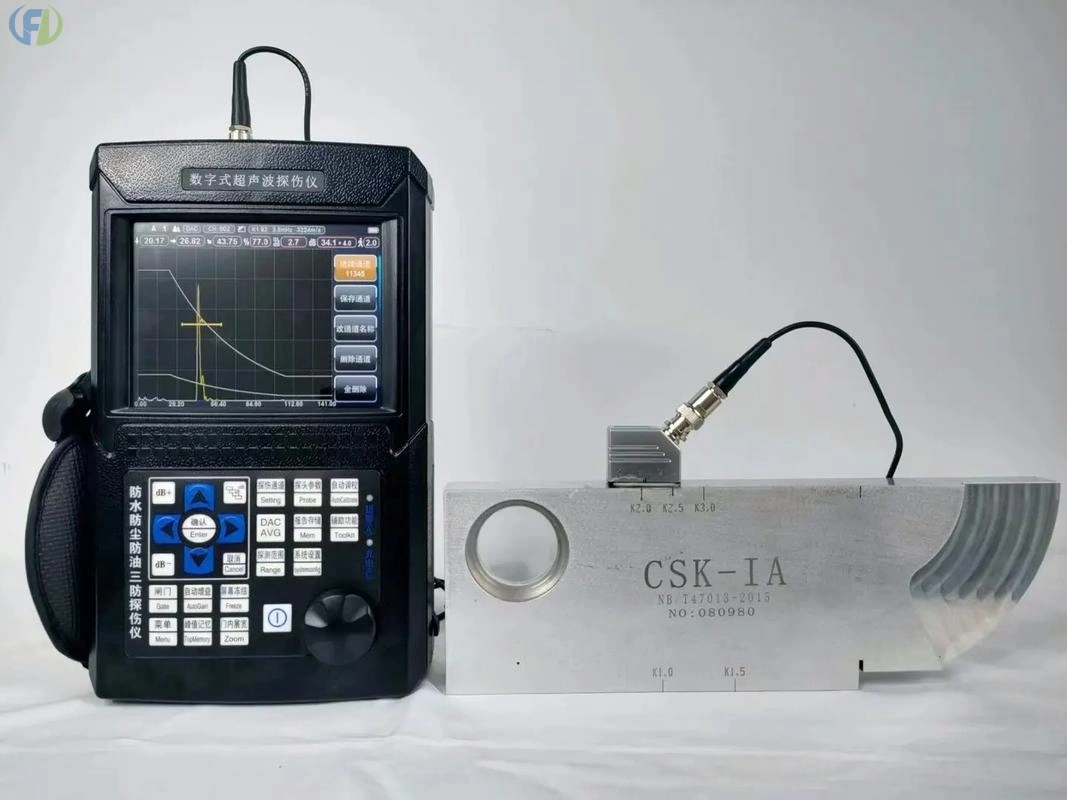

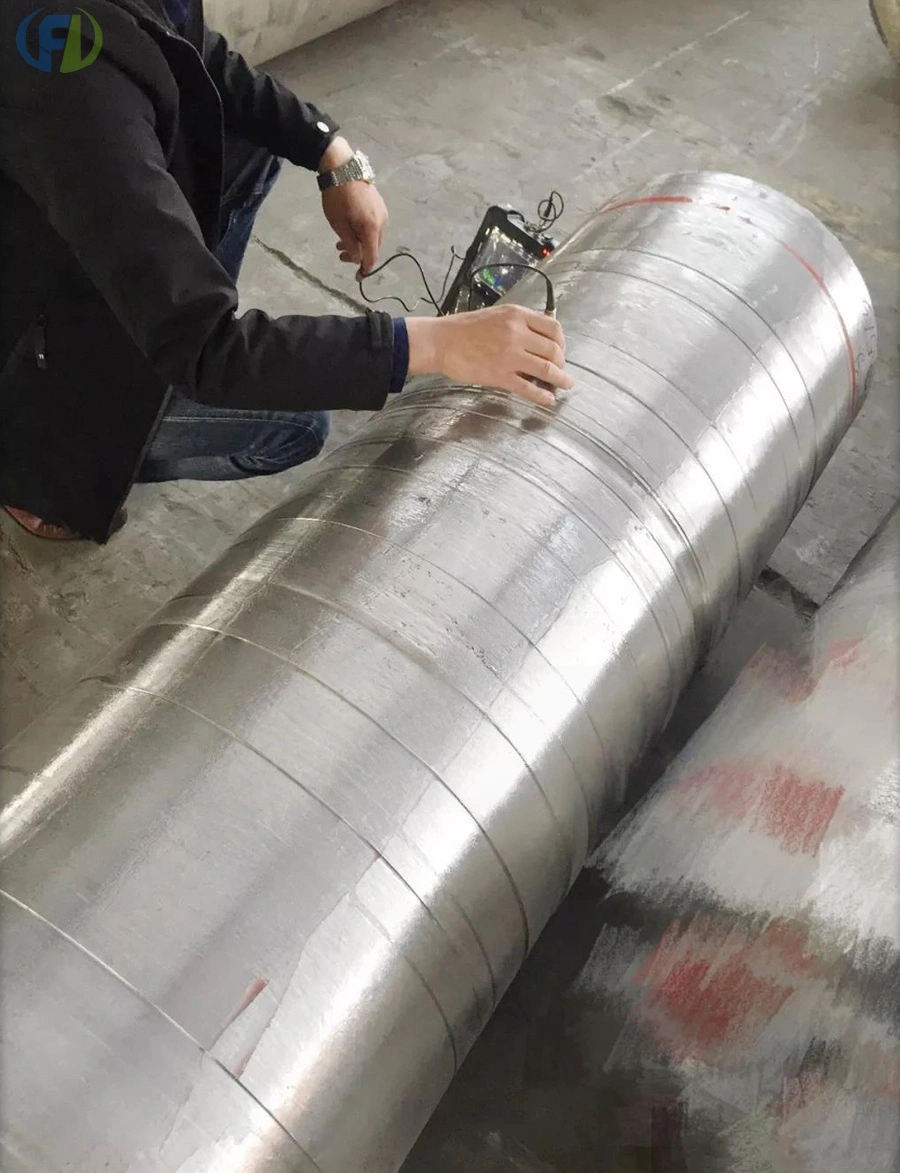

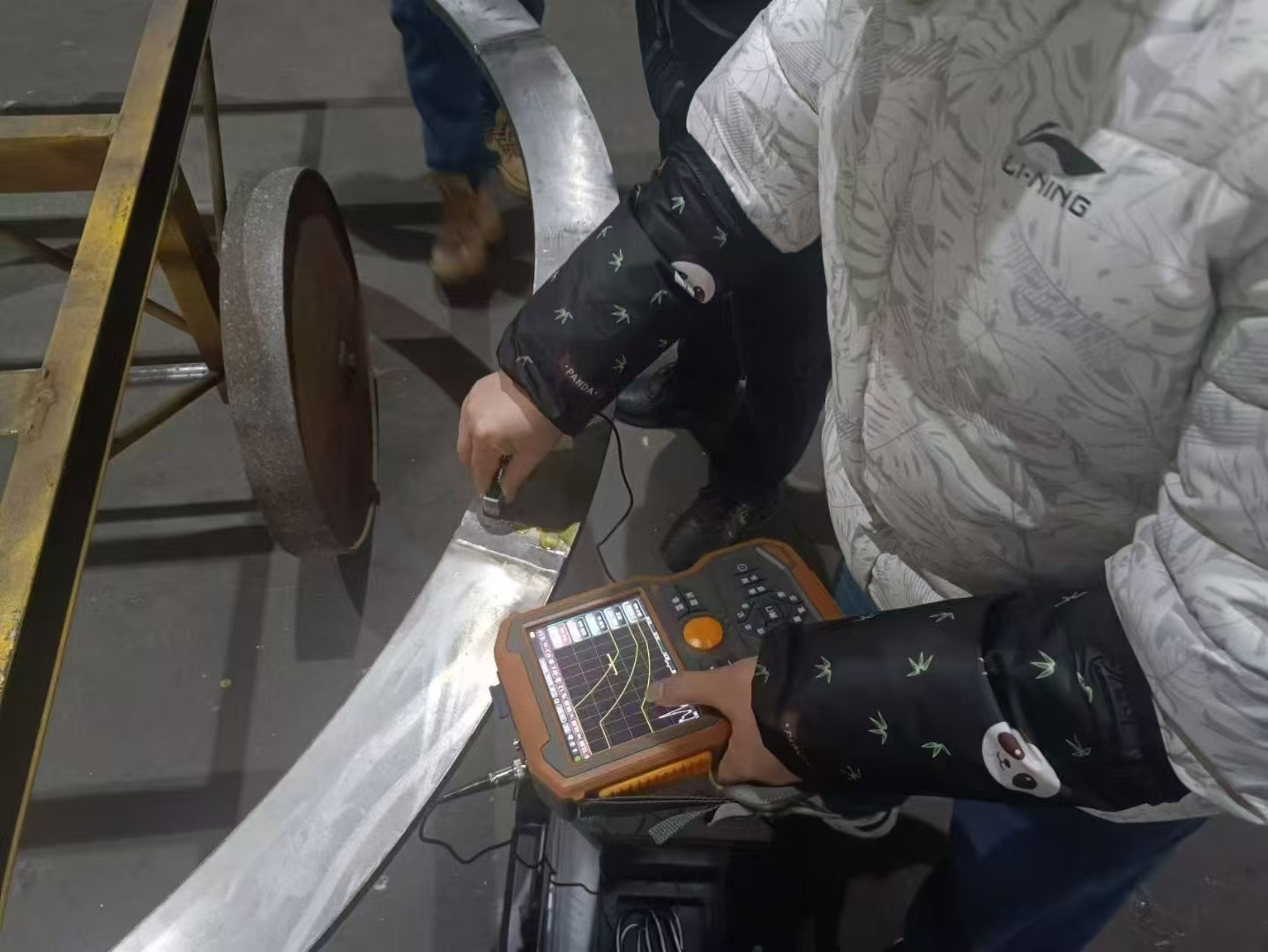

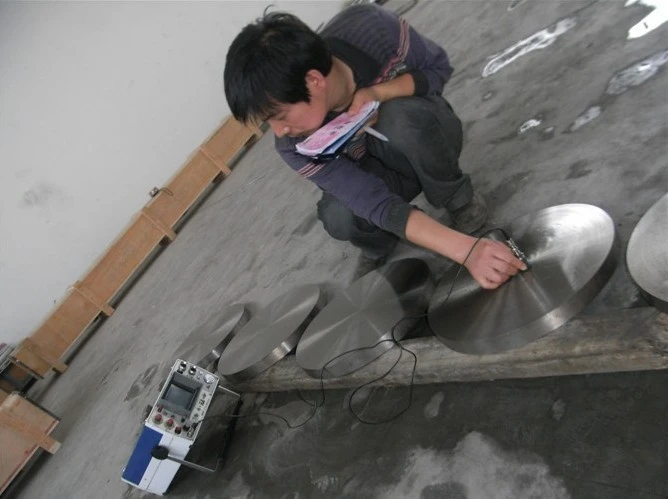

Ultrasonic Testing: Detection of internal defects

​​​​​​​

Why Choose Us

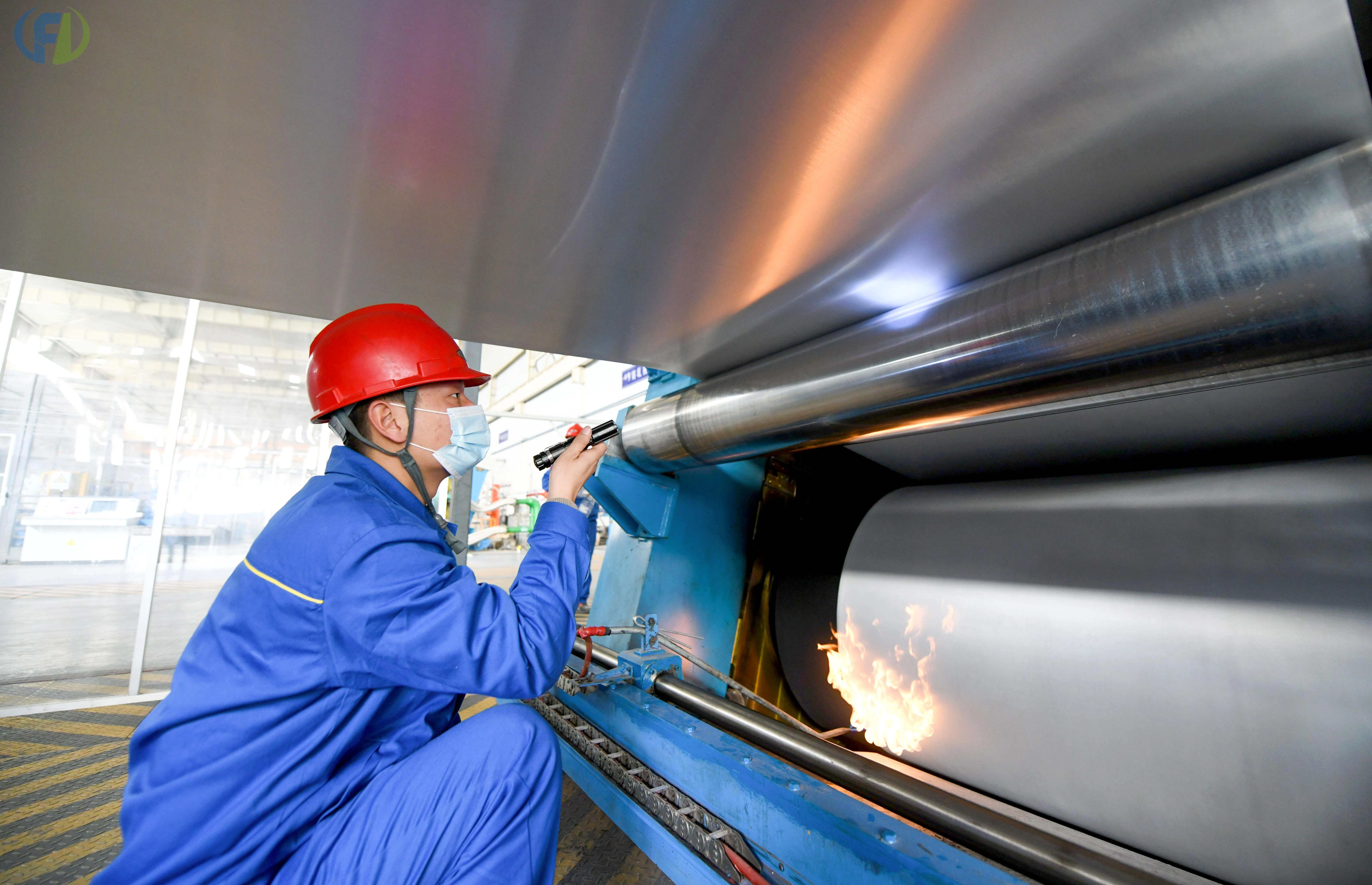

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!

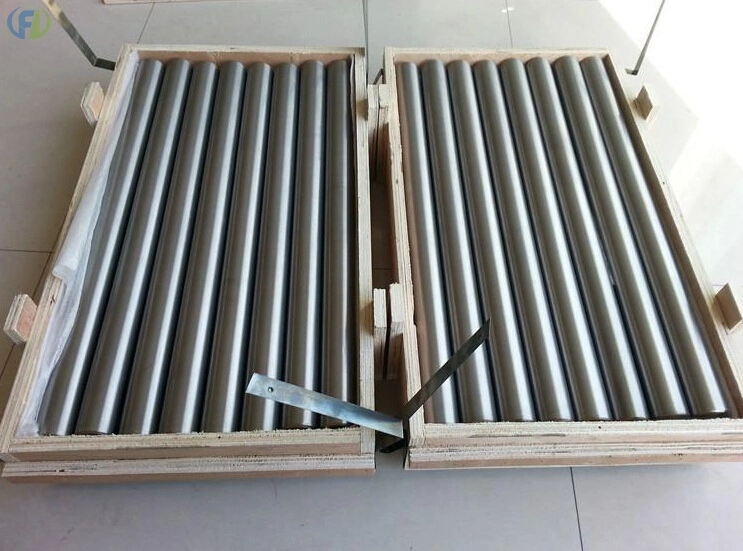

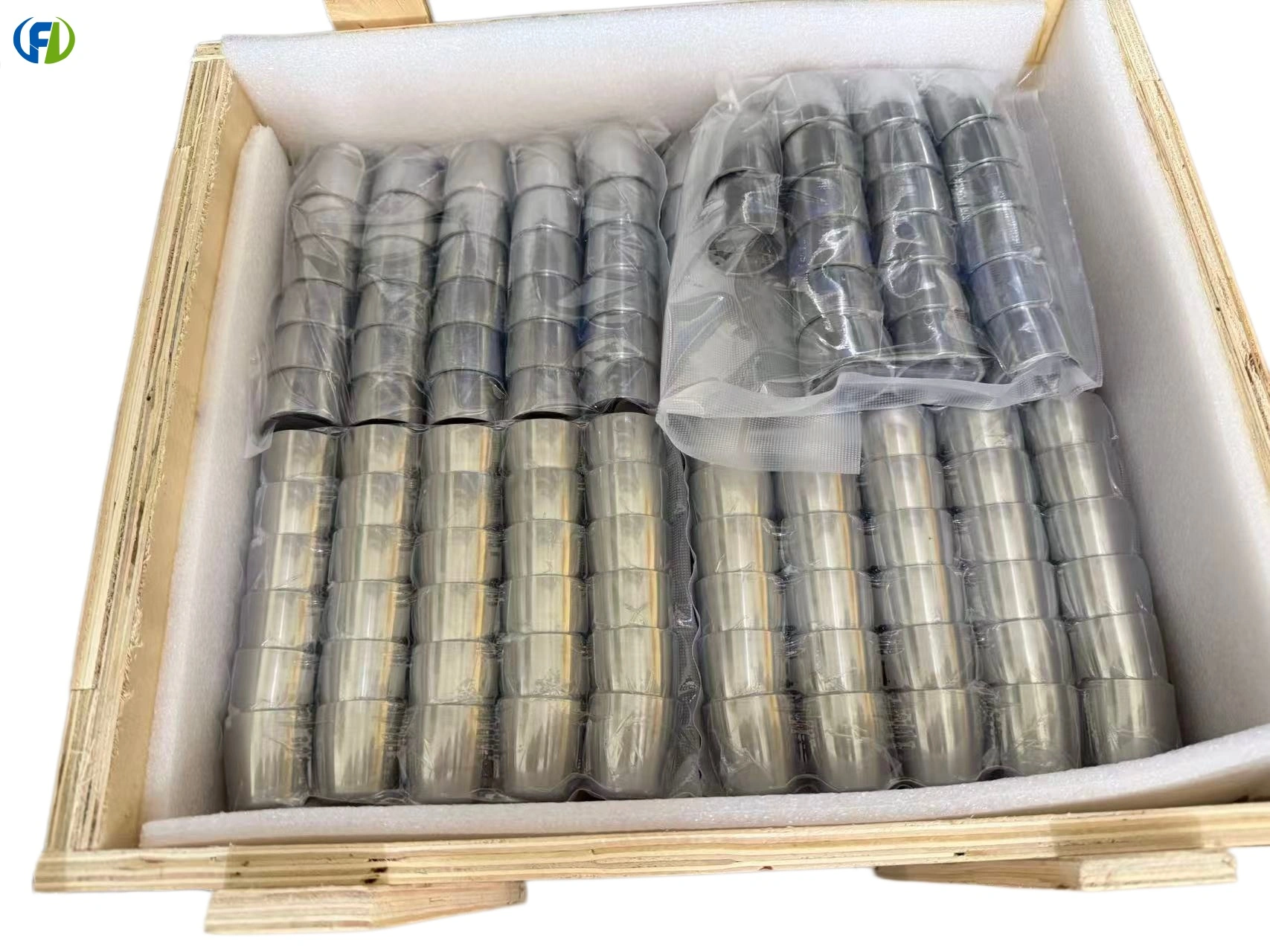

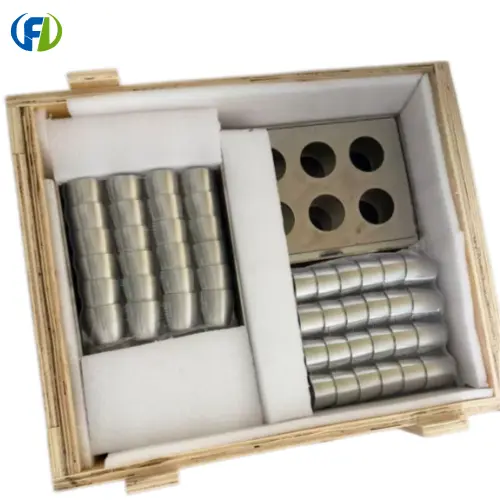

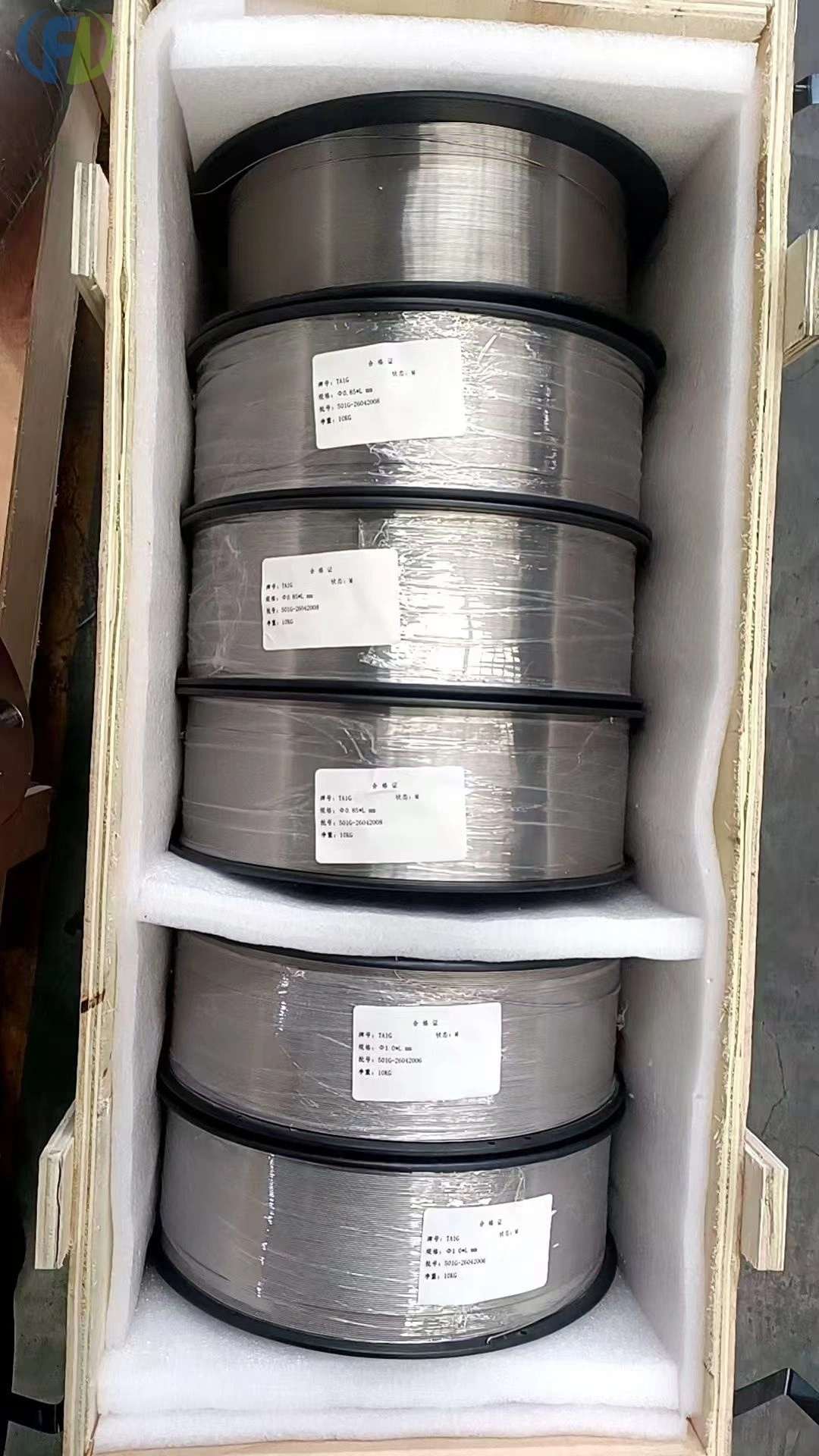

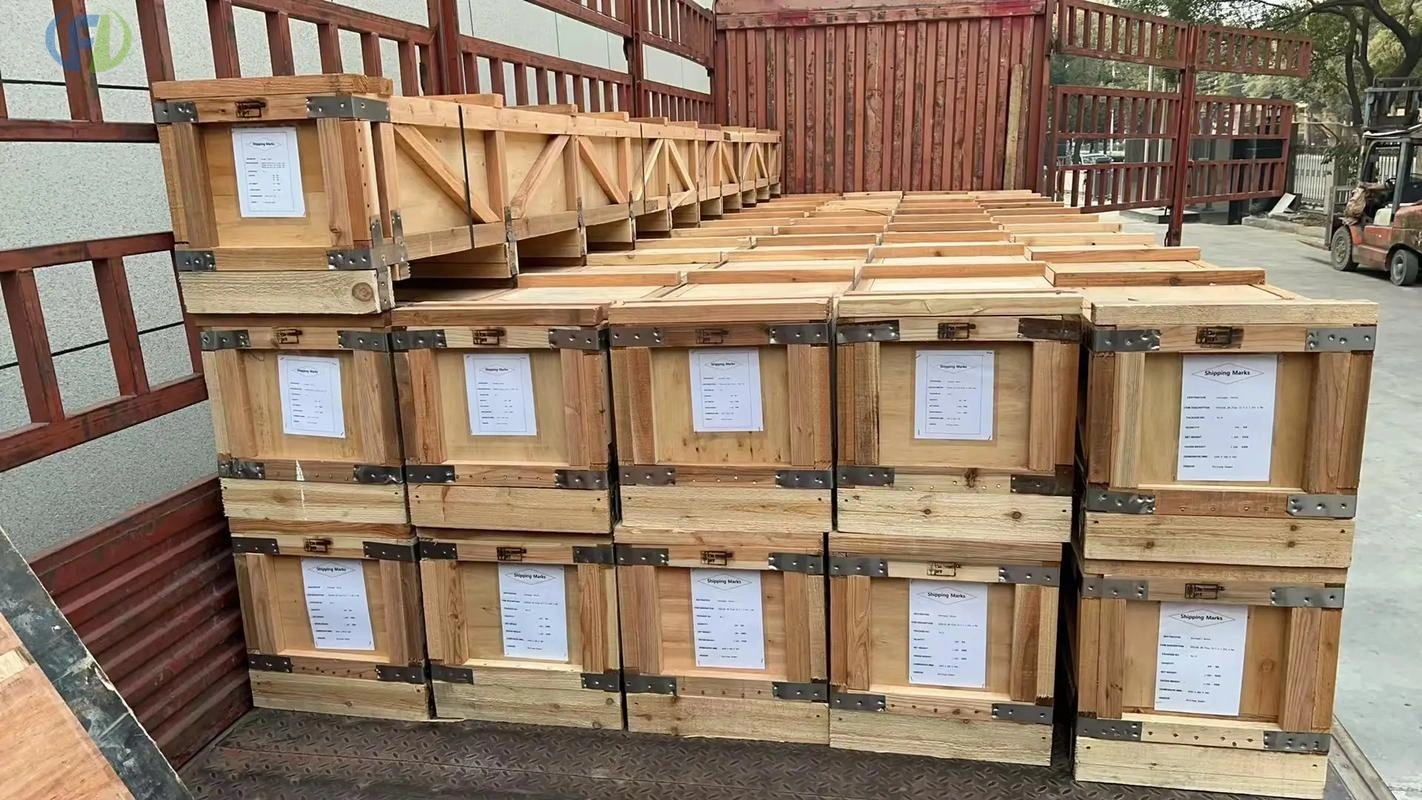

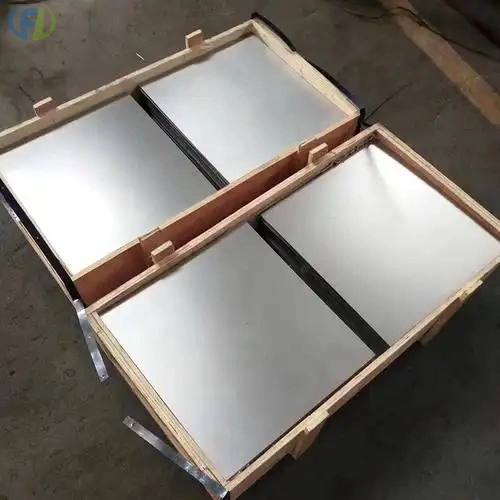

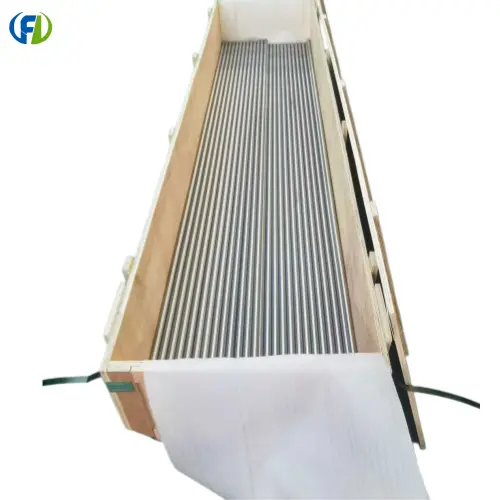

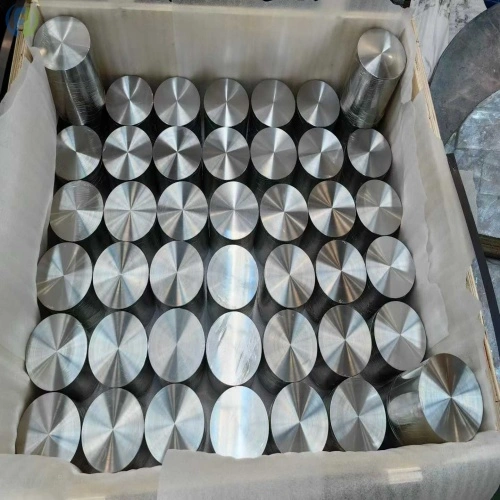

Our Products and Packaging：

Contact Us

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
