ASTM B348 Gr5 Titanium Bar

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: Gr5 TC4
Standard: ASTM B348
Advantages: High strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

Details of ASTM B348 Gr5 Titanium Bar

ASTM B348 Gr5 (Ti-6Al-4V) is a widely used titanium alloy bar containing 6% aluminum and 4% vanadium, known for its high strength, good corrosion resistance and excellent biocompatibility. The material has the characteristics of both lightweight and high strength, and is widely used in aerospace, medical, chemical, energy and high-end manufacturing fields.

Bar diameter range: φ1mm-φ200mm.
Length: standard 1000mm-6000mm, customizable.
Processing methods: forging, rolling, extrusion, finishing, annealing, etc.
Surface conditions: polished surface, pickled surface, polished surface, etc.
Advanced detection methods: including ultrasonic flaw detection, X-ray detection, mechanical properties testing, chemical composition analysis, etc., to ensure compliance with ASTM B348 standards.

National standard requirements	Al	V	Fe	C	N	H	O
Gr5/TC4(standard value)	5.5-6.75	3.5-4.5	0.3	0.08	0.05	0.008	0.2
Tc4ELI(standard value)	5.5-6.5	3.5-4.5	0.25	0.08	0.03	0.012	0.13

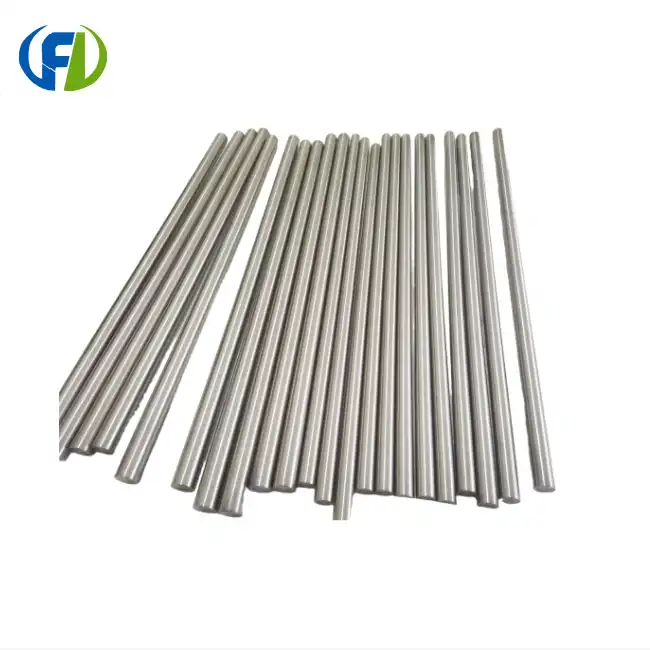

ASTM B348 Gr5 Titanium Bar display picture

Advantages of ASTM B348 Gr5 Titanium Bar

1. High strength and low density: Compared with steel of the same strength, it is lighter and suitable for lightweight design.
2. Excellent corrosion resistance: It has strong tolerance to seawater and acid-base environment, suitable for harsh working conditions.
3. Good biocompatibility: It will not cause human rejection reaction and is widely used in medical implants.
4. Excellent high temperature resistance: It can still maintain high mechanical strength above 400℃ and is suitable for high temperature environment.
5. Good processing performance: Although titanium alloys are difficult to process, Gr5 can be formed by welding, forging, machining and other methods.
6. High fatigue strength: Excellent resistance to fatigue crack growth, suitable for parts subjected to repeated loads.

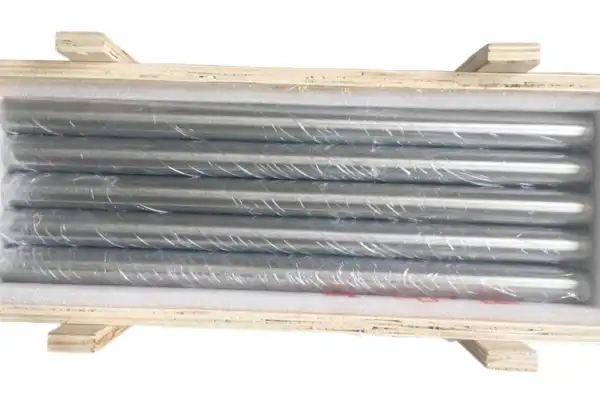

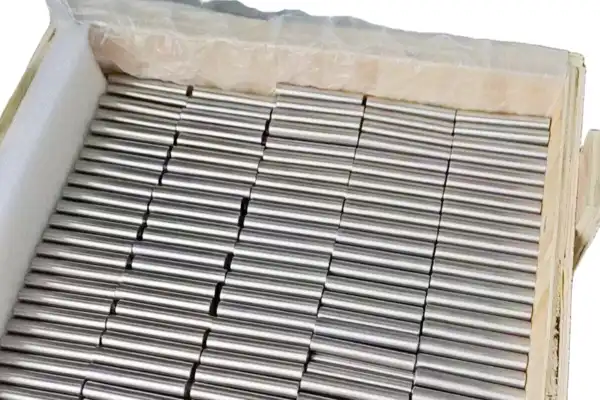

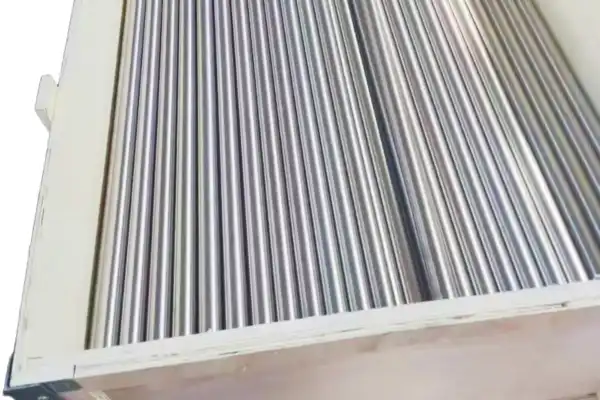

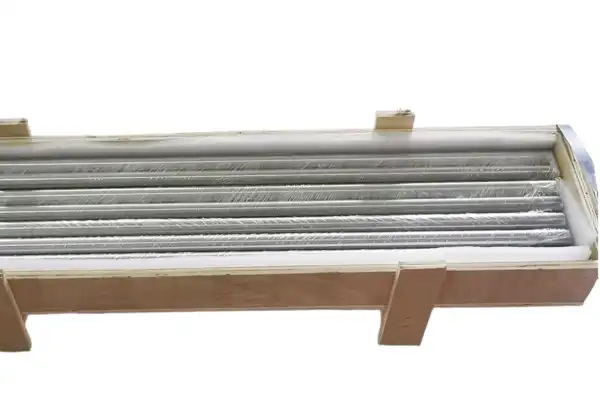

Our Packaging
