Pure titanium plate anode

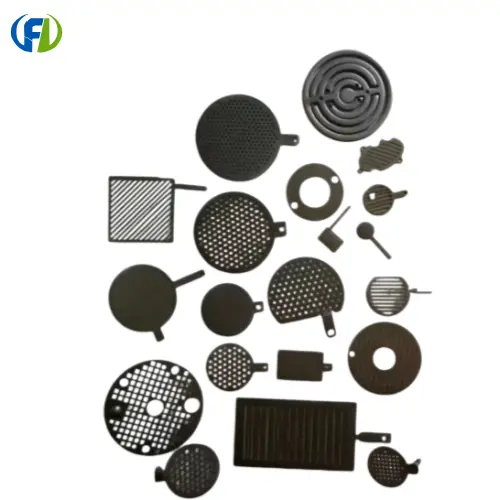

I. Common Shapes of Titanium Anodes

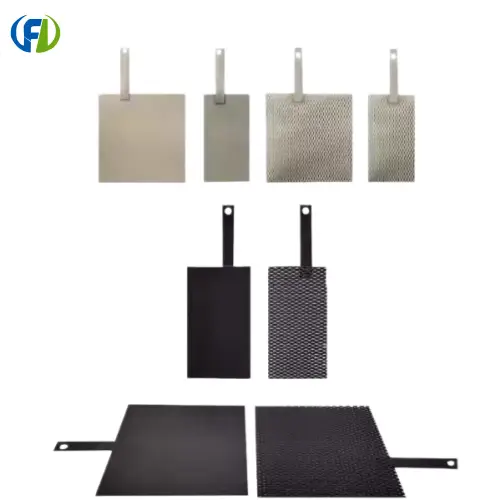

1. Titanium Mesh Anode

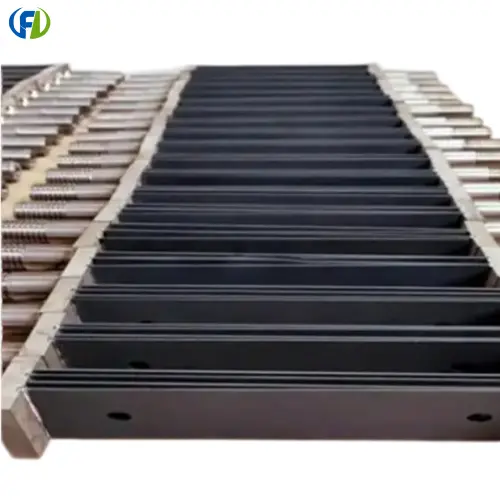

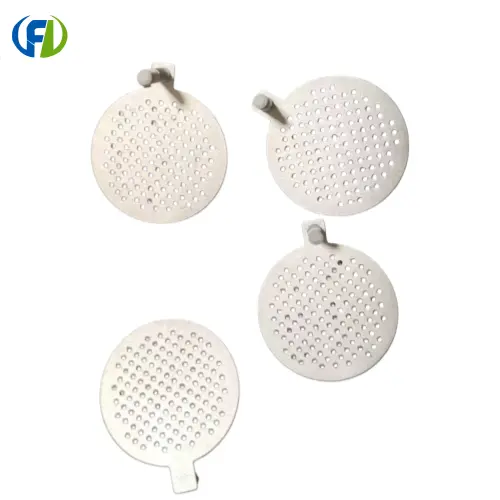

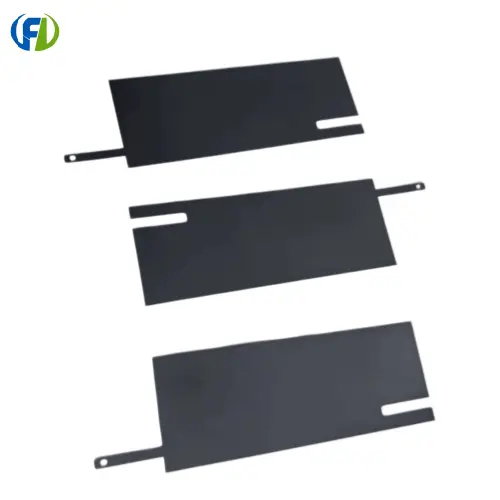

2. Titanium Plate Anode

3. Titanium Tube Anode

4. Titanium Rod Anode

5. Titanium Wire Anode

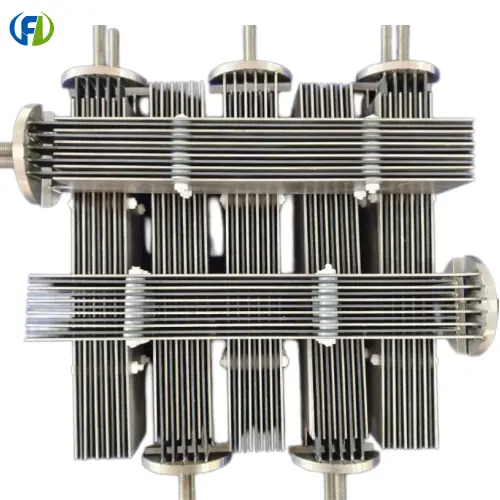

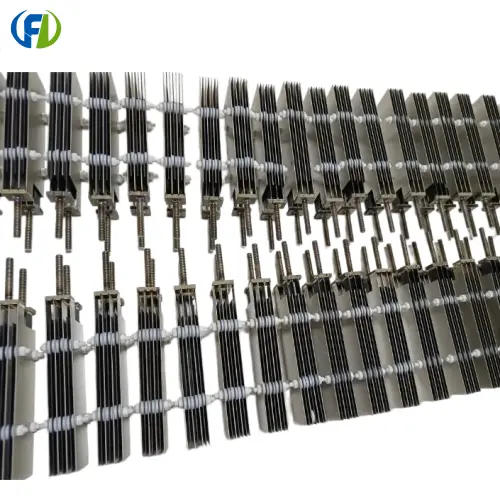

6. Cylindrical/Basket/Zenticular/Combined Anodes

​​​​​​​

II. Coating Types

• Ruthenium-Iridium Coating: Electroplating, Wastewater Treatment, Chlorine Evolution

• Iridium-Tantalum Coating: Chromium Plating, Water Electrolysis, Acidic Environments, Oxygen Evolution

• Platinum Coating (Pt): High-End Electrolysis, Medical, Precision Electroplating

III. Simplest and Fastest Selection

• Ordinary Electroplating/Wastewater Treatment: Titanium Mesh 30-50 Mesh, 2mm Thick Connecting Plate

• Hard Chrome/Water Electrolysis: Titanium Plate 1.5-2mm, Iridium-Tantalum or Platinum Coating

• Small Equipment/Experiment: 100×200mm or 200×300mm Small Anode

• Large Production Line: 500×1000mm Large Plate/Large Mesh

Anode Materials and Applications

1. Titanium and Titanium Alloys

• TA1, TA2, TA9, TA10

• Characteristics: Corrosion resistant, lightweight, easy to form; titanium is used as the substrate in almost all electroplating, electrolysis, and water treatment processes.

• Applications: Electroplating anodes, chlor-alkali electrolysis, wastewater treatment, seawater desalination

2. Platinum (Pt)

• Characteristics: Extremely stable, insoluble

• Applications: High-end electrolysis, analytical electrodes, medical electrodes

3. Iridium (Ir), Ruthenium (Ru), Rhodium (Rh)

• Characteristics: Precious metals with extremely strong catalytic activity.

• Applications: Combined with titanium to form titanium-based coated anodes.

4. Lead/Lead Alloys (Pb)

• Traditional anodes, inexpensive but heavy and toxic.

• Applications: Old-fashioned electrolysis, zinc plating.

5. Stainless Steel

• Only usable under weak corrosion and low current conditions.

• Easily passivated and corroded; unsuitable for long-term anode applications.

6. Aluminum, Copper, Iron

• I. Titanium Anodes: Absolutely unsuitable for use as anodes; they will dissolve, corrode, and contaminate the bath solution upon energization.

II. Most Commonly Used in Industry: Titanium-Based Coated Anodes (DSA Anodes)

These anodes are coated with precious metal oxides on a titanium substrate. Currently, 90% of anodes use this method.

• Titanium-based ruthenium-iridium coating: Resistant to chlorine and chlorine evolution; used in electroplating, wastewater treatment, and chlor-alkali applications.

• Titanium-based iridium-tantalum coating: Resistant to acid and oxygen evolution; used in hard chrome plating, water electrolysis, and acidic environments.

• Titanium-based platinum coating: High-end precision electrolysis.

III. Non-Metallic Anode Materials

• Graphite: Electrolysis, batteries, electroplating.

• Carbon electrodes: Low-end, inexpensive, and easily worn out.

• Ceramic electrodes: Special high-temperature electrolysis.

Main Uses of Titanium Anodes (Titanium-Based DSA Anodes)

1. Electroplating Industry (Most Commonly Used)

• Copper plating, nickel plating, zinc plating, gold plating, silver plating, tin plating

• Decorative electroplating, barrel plating, rack plating, continuous electroplating

• Features: Insoluble, does not contaminate the plating solution, long lifespan
Commonly used: Titanium-based ruthenium-iridium, platinum, iridium-tantalum

2. Chromium Plating Anodes

• Hard chrome, decorative chrome

• Resistant to strong acids, resistant to high current
Specialized: Titanium-based platinum, iridium-tantalum coating

3. Wastewater Treatment / Environmental Electrolysis

• Electrocoagulation, electrocatalytic oxidation, electrolytic decolorization, COD removal

• Swimming pool water, circulating water sterilization
Commonly used: Titanium-based ruthenium-iridium, iridium-tantalum

4. Chlor-alkali Industry / Salt Production / Seawater Electrolysis

• Electrolysis of sodium chloride, chlorine production, caustic soda

• Seawater chlorination, marine organism control
Specialized: Titanium-based ruthenium-iridium (chlorine-evolving anode)

5. Water Electrolysis for Hydrogen/Oxygen Production

• Water electrolysis, hydrogen energy equipment
Specialized: Titanium-based iridium-tantalum (oxygen-evolving anode)

6. Cathodic Electrophoresis / Anodizing

• Automotive parts, aluminum profile anodizing, electrophoretic coating

Uses: Pure titanium anodes, titanium mesh anodes

7. Electrochemical water treatment

• Seawater desalination, pre-reverse osmosis electrolysis sterilization

• Descaling, sterilization and algae removal in circulating cooling water

8. Metal electrolytic extraction/electrolytic refining

• Electrolysis of non-ferrous metals such as copper, manganese, and zinc

• Corrosion resistant, good conductivity

9. Electrodes for medical/beauty instruments

• High-potential therapy devices, beauty devices, physiotherapy electrodes

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!
