GR12 Titanium Rod

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: Gr12
Diameter: Φ2 mm–Φ60mm Φ30 mm–Φ300 mm
Length: ≤ 12meters or as per request
Standard: ASTM B348,ASTM B381,ASTM F136,ASTM F67
Advantages: High strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

GR12 Titanium Rod Instructions

GR12 Titanium Rod It is a near-alpha alloy. The content of 0.3% Mo and 0.8% Ni in this alloy not only enhances the corrosion resistance of GR12 titanium rod, but is far superior to that of pure titanium and comparable to that of GR7 alloy. It has good crevice corrosion resistance to high temperature, low pH chlorides or weak reducing acids. GR12 titanium rods are often used in the chemical industry, with outstanding process plasticity and welding performance. The main end products of the alloy include plate, bar, tube, forgings and wire, which can be used in annealed form.

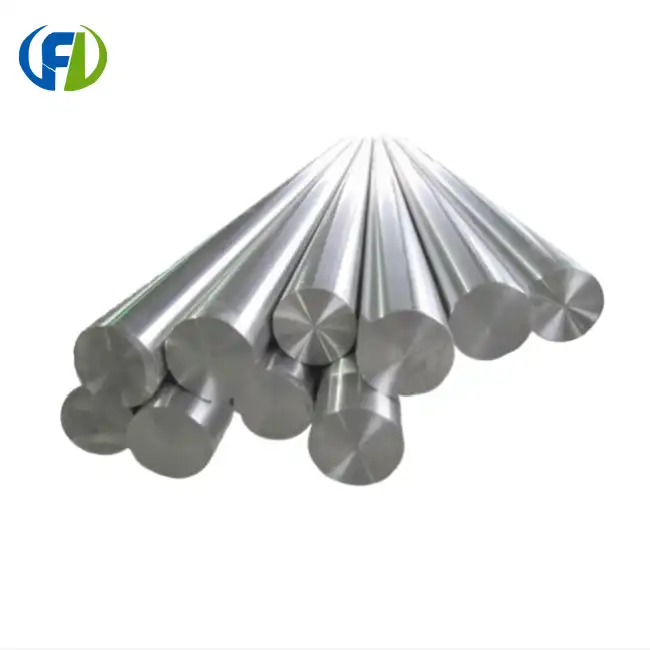

GR12 Titanium Rod Picture display

GR12 Titanium Rod Chemical Content

Main Content			Impurity Element (%)
Ti	Mo	Ni	Fe	C	N	H	O	Other elements
								Unit	Amount
balance	0.2～0.4	0.6～0.9	0.30	0.08	0.03	0.015	0.25	0.10	0.40

Product Properties

GR12 titanium rod density is 4.54g/m3, the elastic modulus at room temperature is 103~107GPa, the hardness is HB180~215, and the phase transition point is 890±15℃.

Nickel enhances titanium's resistance to crevice corrosion in hydrochloric acid solution, but in reducing acid, the Ti-Ni alloy's corrosion resistance is inferior to that of pure titanium. Molybdenum can be added to Ti-Ni alloy to increase the corrosion resistance of GR12 titanium rod in reducing media.

Application areas

The production of compressor parts, including forged titanium fans, compressor discs, blades, cast titanium compressor casings, intermediate casings, bearing housings, etc., mostly use GR12 titanium rod.The production of various pressure vessels, fuel tanks, fasteners, instrument straps, frames, and rocket casings for spacecraft mostly relies on the high specific strength, corrosion resistance, and low temperature resistance of titanium alloys. Titanium alloy sheet welding is also used in artificial earth satellites, lunar modules, manned spacecraft, and space shuttles.

FAQ

A. Are you a factory or a trading company?

Our factory has 10 years of production experience.

B. Can you provide samples? MOQ?

Yes, we can provide you with free samples. MOQ: 5kg.

C. Do you accept customization?

Yes, we can process according to your unit weight or drawing.

D. Do you check the finished product?

Yes, every product will be checked by our QC before shipment.

E. How much is the shipping fee?

Mainly depends on weight, volume, package size and destination port.

F. What is your delivery time?

In stock, 7-15 days, if not, according to your quantity.
