GR5 Titanium Alloy Bar

GR5 titanium alloy TC4 (Ti-6Al-4V)

GR5 Titanium alloy bar is also known as TC4 titanium alloy bar, and we will call it 6Al4V titanium bar. This is a titanium alloy that is versatile and has good strength and elongation.

Mechanical properties

GR5/Ti-6Al-4V

Mechanical properties at room temperature:

Tensile strength Rm/MPa: ≥895 (130)

The specified non-proportional elongation strength Rp0.2/MPa: ≥828 (120)

Elongation after break A/%: ≥10

Section shrinkage rate Z/%: ≥25

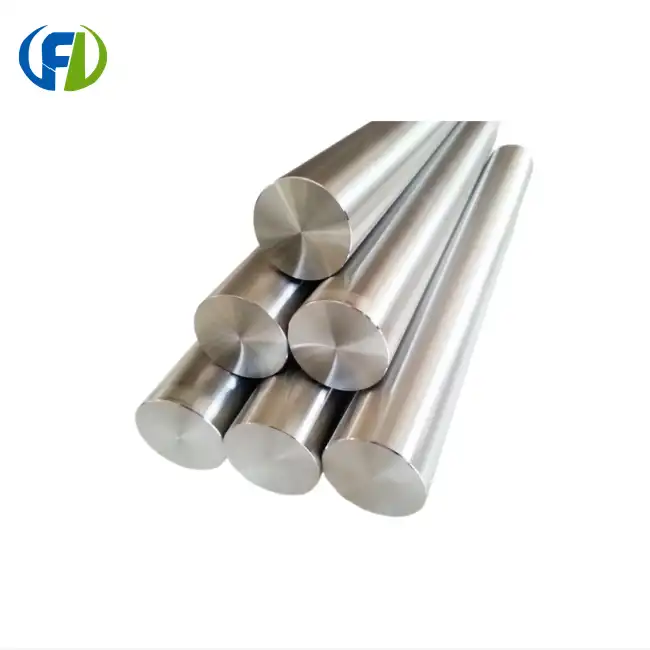

GR5 Titanium Alloy Bar picture display

GR5 Titanium Alloy Bar Application:

GR5 Titanium alloy bar has many characteristics such as lightweight, high strength, strong heat resistance, corrosion resistance, etc. Titanium has good inhalation performance and is also used in high vacuum technology in electronic vacuum technology.

Among the three titanium alloys, α titanium alloy and α+β titanium alloy are commonly used; α titanium alloy has good machinability, followed by α+β titanium alloy, and β titanium alloy is poor. The code name of α titanium alloy is TA, the code name of β titanium alloy is TB, and the code name of α+β titanium alloy is TC.

Titanium alloy is an alloy composed of titanium as a matrix and alloying elements such as aluminum, tin, chromium, molybdenum, and manganese. According to the structure and characteristics of the alloy after annealing, it can be divided into three types: α type, β type, and α+β type.

Alpha titanium alloy product: It has good high-temperature performance, stable structure, and good welding performance. It is the main component of heat-resistant titanium alloy.

Beta titanium alloy product: It has good plastic workability, when the alloy concentration is appropriate, high normal temperature mechanical properties can be obtained by strengthening heat treatment.

α+β titanium alloy (also includes a small amount of β-phase near-α alloy): It can be strengthened by heat treatment, has high strength at room temperature, and has good heat resistance at medium temperature.
