gr5 titanium bars

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Surface: Polished surface
Grade: Gr5(Ti-6Al-4V) TC4
Diameter: 5–150 mm
Density: 4.51g/cm³
Length: 1000–3000 mm
Surface: Polished finish
Standard: ASTM B348
Packaging Details: Plywood case
Delivery Time: 5~7days
Certification: ISO9001

Send Inquiry

Download

Product Description

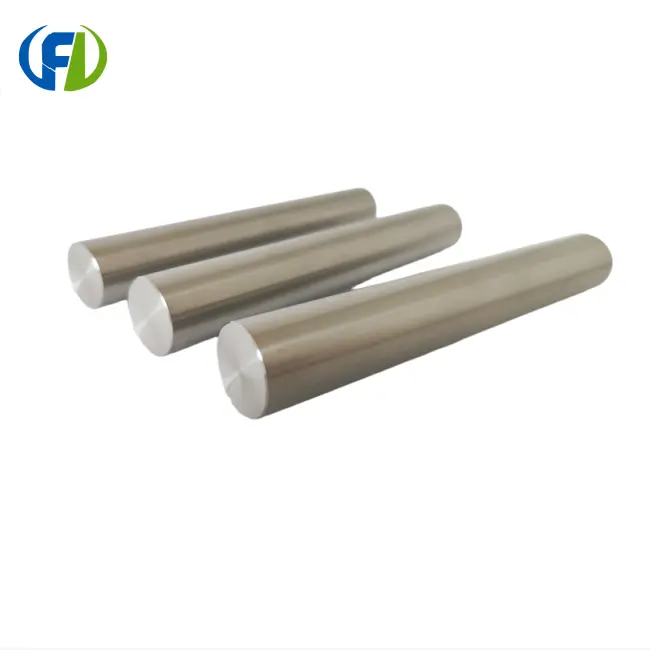

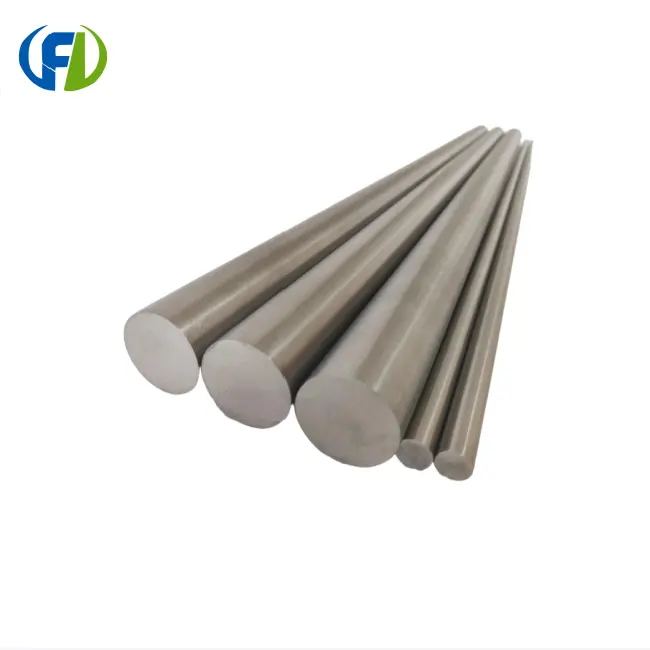

Premium Gr5 Titanium Bars - High-Strength Ti-6Al-4V Alloy Solutions

Looking for premium gr5 titanium bars that deliver exceptional strength and reliability? You've found the right partner. At Baoji Freelong, we specialize in manufacturing high-quality Grade 5 titanium bars (Ti-6Al-4V) that meet the most demanding industrial applications. Located in Baoji City - China's renowned Titanium Valley, we bring decades of expertise in titanium alloy production to serve your specific requirements.

Product Introduction

Our Grade 5 titanium bars represent the gold standard in titanium alloy materials. These Ti-6Al-4V bars combine lightweight properties with outstanding mechanical strength, making them ideal for critical applications across aerospace, medical, and industrial sectors.

Key Product Details:

Grade: 5 titanium (Ti-6Al-4V)
Available Shapes: Round, square, flat
Yield Strength: ≥880 MPa
Surface Finish: Polished or machined
Manufacturing Standard: ASTM B348

Technical Specifications

Property	Specification
Tensile Strength	895-1000 MPa
Yield Strength	≥880 MPa
Elongation	≥10%
Density	4.51 g/cm³
Melting Point	1604-1660°C
Modulus of Elasticity	113.8 GPa

Chemical Composition:

Aluminum: 5.5-6.75%
Vanadium: 3.5-4.5%
Iron: ≤0.40%
Oxygen: ≤0.20%
Carbon: ≤0.10%
Nitrogen: ≤0.05%
Hydrogen: ≤0.015%
Titanium: Balance

Key Features and Benefits

Superior Strength-to-Weight Ratio

You get maximum performance with minimal weight. Our bars offer strength comparable to steel while being 40% lighter.

Exceptional Corrosion Resistance

Natural oxide layer provides outstanding protection against harsh environments and chemical exposure.

Biocompatibility

Perfect for medical implants and surgical instruments due to excellent biocompatibility properties.

Temperature Stability

Maintains structural integrity in extreme temperatures from -253°C to 400°C.

Excellent Machinability

Easy to machine, weld, and form using standard metalworking techniques.

Applications and Industries Served

Aerospace Industry

Medical Sector

Industrial Applications

Manufacturing Process

Our state-of-the-art manufacturing facility ensures consistent quality throughout every production stage:

Raw Material Selection - Premium titanium sponge and alloying elements
Vacuum Melting - Triple melting process for homogeneous composition
Forging and Rolling - Controlled deformation for optimal grain structure
Heat Treatment - Precise temperature control for desired properties
Machining and Finishing - Advanced CNC equipment for exact dimensions

Contact Information

Ready to discuss your gr5 titanium bars requirements? We're here to help you find the perfect solution.

Email: jenny@bjfreelong.com

WhatsApp: +86 13571190943

Connect with our titanium specialists today. We'll work closely with you to understand your specific needs and provide tailored solutions that exceed your expectations. Your success is our priority, and we're committed to delivering the highest quality titanium products with exceptional service.

Our Packaging

Package

About us

Baoji Freelong New Material Technology Development Co., Ltd loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.
