TA2/Gr2Titanium Rod- ASTM B348 Pure Titanium Bar/Rod

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 4.51 g/cm³
Grade: TA2 Gr2
Standard: ASTM B348 ASTM B381 AMS 4928
Advantages: High strength and corrosion resistance
Certification: ISO 9001
Delivery time: 7-15 days
Packaging Details: Plywood case
Product Description

Product Introduction

FRL Metal offers high-quality TA2 (Grade 2)titanium rods manufactured in strict accordance with ASTM B348 / ASTM B381 / AMS 4928 standards. As one of the most widely used commercial pure titanium grades, TA2 combines excellent corrosion resistance with good mechanical properties, making it the preferred material for demanding applications in aerospace, chemical processing, marine engineering, medical implants, and architectural structures.
Our TA2 titanium rods are produced using advanced vacuum arc remelting (VAR) or electroslag remelting (ESR) processes, ensuring uniform microstructure, tight dimensional tolerances, and consistent chemical composition. Available in round, hexagonal, square, and custom profiles, with cold-drawn, hot-rolled, or forged finishes to meet your specific engineering requirements.

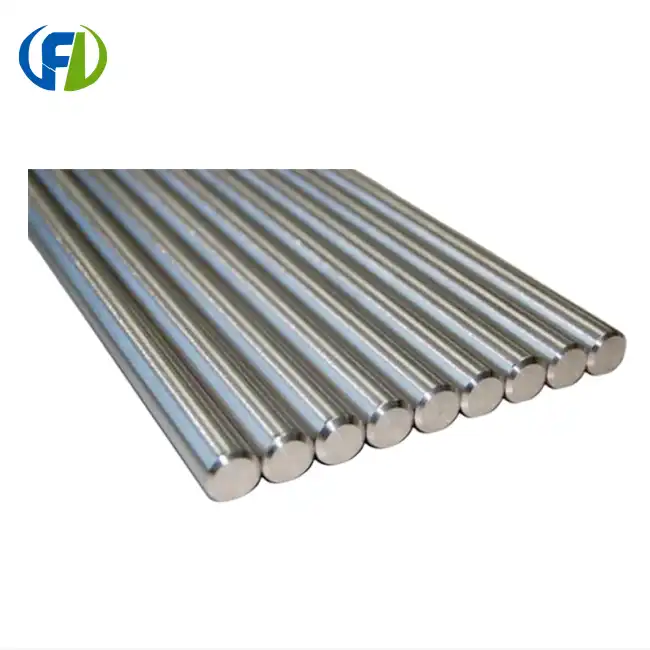

Picture display

product-650-650 Customized TA2 Titanium Rod product-650-650



TA2 / Gr2 / R50400 Chemical Composition

Element Symbol Content (%)
Titanium Ti Balance
Iron Fe <= 0.30
Carbon C <= 0.08
Nitrogen N <= 0.03
Hydrogen H <= 0.015
Oxygen O <= 0.25
Other (each) — <= 0.10
Other (total) — <= 0.40


Key Features

•Excellent Corrosion Resistance: Superior performance in chlorides, oxidizing acids, alkalis, and seawater environments. Outperforms stainless steel in many corrosive media.
•High Strength-to-Weight Ratio: Density of only 4.51 g/cm3 (half of steel) with tensile strength >=345 MPa, providing exceptional specific strength.
•Outstanding Formability: Excellent cold working capabilities including bending, forging, and machining. Can be easily welded using standard titanium welding techniques.
•Biocompatibility: Non-toxic and biocompatible - widely used in medical implants, surgical instruments, and dental applications.
•Low Temperature Performance: Maintains excellent toughness and impact resistance at cryogenic temperatures down to -250C.
•Non-Magnetic: Suitable for MRI equipment, magnetic separation systems, and other applications requiring non-magnetic materials


TA2 Titanium Rod size

1. Diameter range (round rod)
Cold drawn or precision titanium rod: diameter is usually Φ2 mm – Φ60 mm
Hot rolled or forged titanium rod: diameter is usually Φ30 mm – Φ300 mm
Special customization can achieve larger diameter, such as Φ500 mm or even larger

2. Length range
Conventional length is 1000 mm – 6000 mm
Generally 2000 mm – 3000 mm is common
Cut length can be customized according to customer needs

Applications

• Aerospace: Aircraft structural components, fasteners, landing gear parts, engine components, and spacecraft structural parts

• Chemical Processing: Heat exchangers, reactors, pressure vessels, pumps, valves, and piping systems handling corrosive media

• Marine Engineering: Ship hull components, offshore platform parts, seawater piping, desalination equipment, and propeller shafts

• Medical & Dental: Orthopedic implants (hip stems, knee replacements), surgical instruments, dental implants, and medical devices

• Automotive: High-performance racing components, exhaust systems, suspension parts, and connecting rods

• Architectural: Curtain walls, roofing, cladding, and decorative elements in corrosive environments

• Energy: Nuclear fuel cladding components, geothermal equipment, and desalination plants

Why Choose FRL Metal

1.Direct Manufacturer: We operate our own titanium processing facility in Baoji, China - the heart of China’s titanium industry. No middlemen, competitive pricing, full quality traceability.
2.Strict Quality Control: Every batch tested per ASTM B348. Chemical composition, mechanical properties, and dimensional tolerances verified.
3.Customization Capability: OEM services available - custom sizes, shapes, surface finishes, and tolerances. Cold drawing, hot forging, CNC machining, and precision cutting services offered.
4.Global Experience: Exporting to Australia, Korea, Germany, USA, UK, Malaysia, Middle East, and more. Trusted by hundreds of international buyers for consistent quality and on-time delivery.
5.Fast Delivery: Standard sizes maintained in stock for immediate shipment. Custom orders processed within 7-15 working days depending on specifications.

Our Packaging

Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package

FAQ

Q1: What is TA2 titanium rod? What are its equivalent grades?

A: TA2 is the Chinese (GB/T) designation for commercial pure titanium grade 2. Its equivalent designations are: It is the most widely used commercial pure titanium grade, offering an excellent balance of corrosion resistance, strength, and formability.


Q2: What is the maximum service temperature for TA2 (Gr2) titanium rod?

A: TA2 titanium rod can be used continuously at temperatures up to 350C (662F). For short-term exposure, it can withstand temperatures up to 400C. Above 400C, titanium begins to oxidize rapidly, and alloy grades like Ti-6Al-4V (Gr5) are recommended for higher temperature applications.


Q3: What is the difference between TA1, TA2, TA3, and TA4 titanium rods?

A: These are all commercial pure titanium grades differentiated primarily by oxygen and iron content, which directly affect strength and corrosion resistance: - TA1 (Gr1): Lowest impurities, highest purity, best corrosion resistance and formability, lowest strength - TA2 (Gr2): Balanced properties - most widely used grade, good strength with excellent corrosion resistance - TA3 (Gr3): Higher oxygen/iron content, higher strength than Gr2, slightly reduced corrosion resistance - TA4 (Gr4): Highest strength among CP titanium grades, used where structural strength is critical

Q4: Can you customize TA2 titanium rods to specific dimensions and shapes?

A: Yes, we offer full OEM customization services. We can produce TA2 titanium rods in custom diameters (Phi2mm-PHI500mm+), custom lengths, and various cross-sections including round, hexagonal, square, and flat bars. We also provide additional services such as CNC machining, precision grinding, surface polishing, and heat treatment according to your drawings and specifications.


Q5: What is your minimum order quantity (MOQ) for TA2 titanium rods?

A: Our standard MOQ is 100 kg for common sizes. For special sizes, custom shapes, or specific surface treatment requirements, the MOQ may vary. Please contact our sales team with your specific requirements for a tailored quotation.


Q6: What certifications do your TA2 titanium rods come with?

A: All TA2 titanium rods are manufactured per ASTM B348 / ASTM B381 / AMS 4928 standards and come with full mill test certificates (EN 10204 Type 3.1).



Q7: Do you provide sample orders for TA2 titanium rod?

A: Yes, we are happy to provide samples for quality evaluation. Sample requests are subject to availability and may incur shipping costs. Please contact us with your sample requirements including size, quantity, and standard, and we will arrange shipment promptly.


About FRL Metal

Baoji Freelong New Material Technology Development Co., Ltd is headquartered in Baoji City — known as "China's Titanium Valley." As a professional manufacturer and exporter, we specialize in the production, OEM processing, and global sales of zirconium, titanium, nickel, niobium, tantalum and their alloys.

With years of industry experience, we have earned the trust of numerous clients and strategic partners worldwide. Our products have been authorized by leading enterprises across Australia, Korea, Germany, the United States, the United Kingdom, Malaysia, Central Asia, the Middle East, Taiwan and other regions.

At FRL Metal, quality and service are not just commitments — they are our core values. We strictly adhere to international standards (ASTM, AMS, etc.) and maintain ISO 9001 certification throughout our production process. Every batch undergoes rigorous testing to ensure it meets or exceeds customer specifications.

Whether you need standard products or custom solutions, our experienced team is ready to provide professional support from inquiry to delivery. We look forward to building a successful partnership with you.
