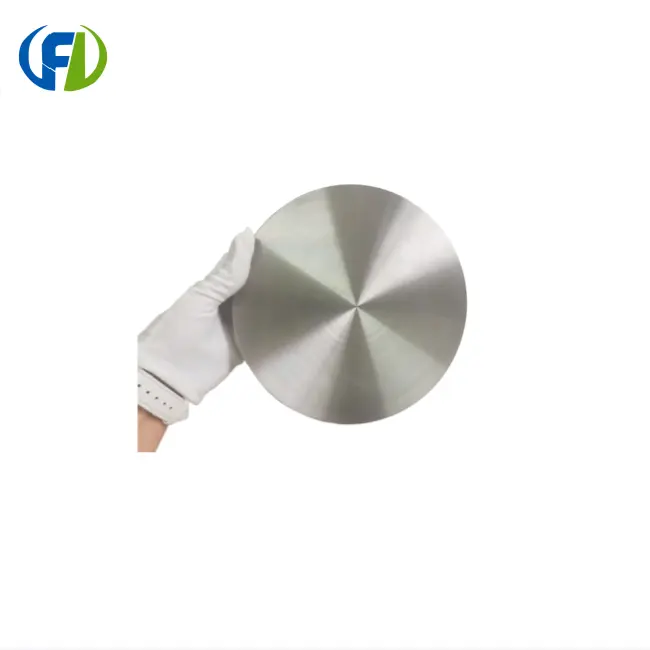

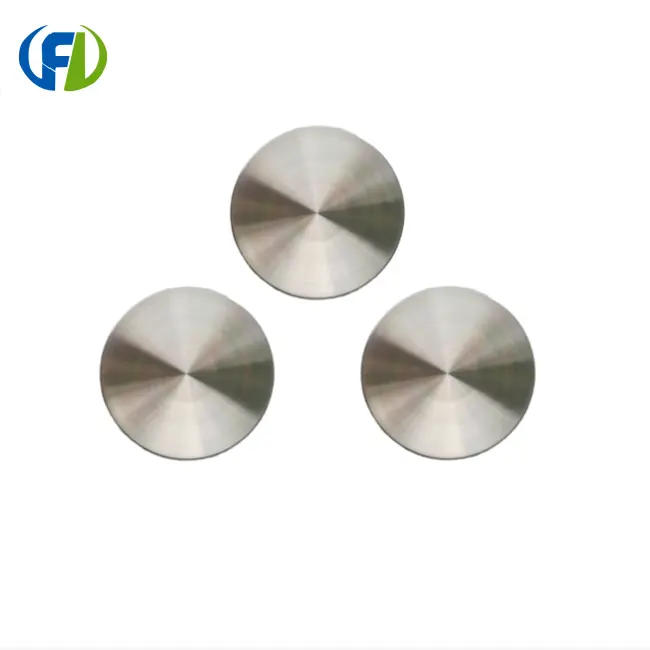

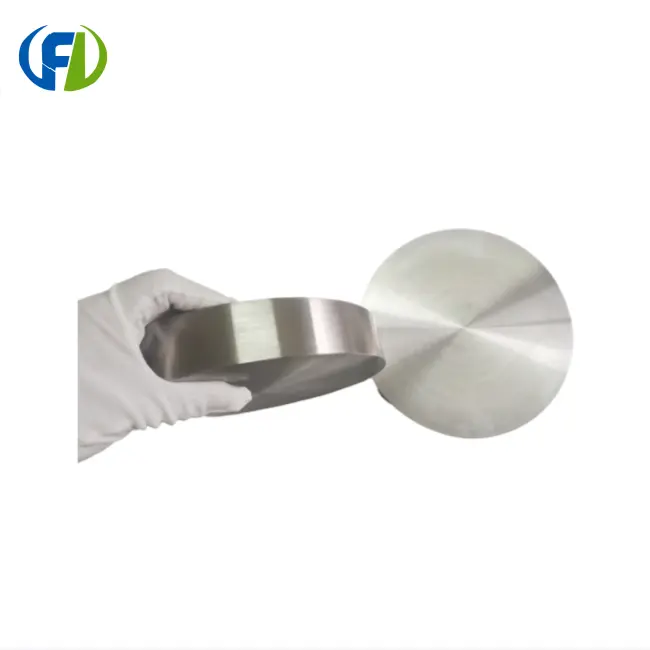

GR5 Titanium Alloy Disc

The GR5 and TA7 titanium alloys used in aviation were selected, and the test pieces were made into discs with a size of 40*5mm, and the surfaces of all test pieces were polished to a mirror surface.

1.2 Ion implantation conditions

Both titanium alloys use two implantation schemes:

① Ti is sputtered on the GR5 and TA7 titanium alloy specimens, and the total thickness of the Ti film is 540nm (5400A). is 50keV, the beam density is 45μA/cm2, the dose is 7*1017/cm2, and the vacuum degree of the target chamber is 1.33*10-2Pa;

② On the basis of ①, inject C+ again, the beam energy is 40keV, and the dose is 3*1017/cm2.

Hardness measurement

The microhardness of the injected and uninjected specimens was measured with HXD-1000 digital microhardness tester, and the measured load was 4.9×10-2N. The measurement results are listed in Table 1.

Table 1 Microhardness measurement results

Material Surface condition Microhardness/MPa Hardness increase factor

Not injected 2690 0

GR5 injection (N+ +N+2) 6399 1.38

inject(N+ +N+2)+C+ 3436 0.28

Not injected 3133 0

GR5 injection (N+ +N+2) 4276 0.36

inject(N+ +N+2)+C+ 4073 0.30

It can be seen from Table 1 that after ion implantation, the microhardness of the specimens has been improved to varying degrees, and the hardness of the TC4 titanium alloy after implantation (N+ +N+2) mixed beam is about 1.4 times higher.

GR5 thermal expansion coefficient:

The GR5 titanium alloy has several benefits including great corrosion resistance, small density, high specific strength, good toughness, and weldability. It has been effectively used in the aerospace, petrochemical, shipbuilding, automotive, and medical industries, among other fields.

Mechanical properties of GR5 titanium alloy:

Tensile strength σb/MPa≥895,

The specified residual elongation stress σr0.2/MPa≥825,

Elongation δ5(%)≥10,

Section shrinkage ψ(%)≥25

GR5 titanium alloy density:

4.5 (g/cm3) working temperature -100～550 (℃)

Chemical composition of GR5 titanium alloy:

GR5 contains titanium (Ti) balance,

Iron (Fe)≤0.30,

Carbon (C)≤0.10,

Nitrogen (N)≤0.05,

Hydrogen (H)≤0.015,

Oxygen (O)≤0.20,

Aluminum (Al) 5.5～6.8,

Vanadium (V) 3.5～4.5

FAQ

Our factory has 10 years of production experience.

2. Can you provide samples? MOQ?

Yes, we can provide you with free samples. MOQ: 1kg.

3. Do you accept customization?

Yes, we can process according to your unit weight or drawing.

4. Do you check the finished product?

Yes, every product will be checked by our QC before shipment.

5. How much is the shipping fee?

Mainly depends on weight, volume, package size and destination port.

6. What is your delivery time?

In stock, 1-2 days, if not, according to your quantity.
