Titanium Blind Flange

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Grade: Gr1,Gr2,Gr5,Gr7,Gr9,Gr23 Etc
Density: 4.51g/cm³
Size DIN50,DIN80,DIN100,DIN150 Etc
Standard: GOST33259
Certification: ISO9001
Delivery Time: 5~7days
Payment Terms: T/T
Packaging Details: Plywood case
Certification: ISO9001
Delivery Time: 5~7days
Payment Terms: T/T
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

Titanium blind flange is a kind of blind flange made of titanium alloy material, which is mainly used for pipeline connection and closing of pipeline openings on pipelines, containers, equipment and other components. Titanium blind flanges can be used in high temperature, high pressure, corrosion, and oxidation environments. They have good corrosion resistance and high temperature resistance, and are light in weight, high in strength, and superior in corrosion resistance. They are very high-quality industrial pipe fittings.

Product use range:

1. Piping systems in food, medicine, chemical and other industries;
2. Industrial equipment such as chemical reactors, thermal oxidizers and petrochemical plants;
3. Nuclear power plant equipment and ships and other equipment.

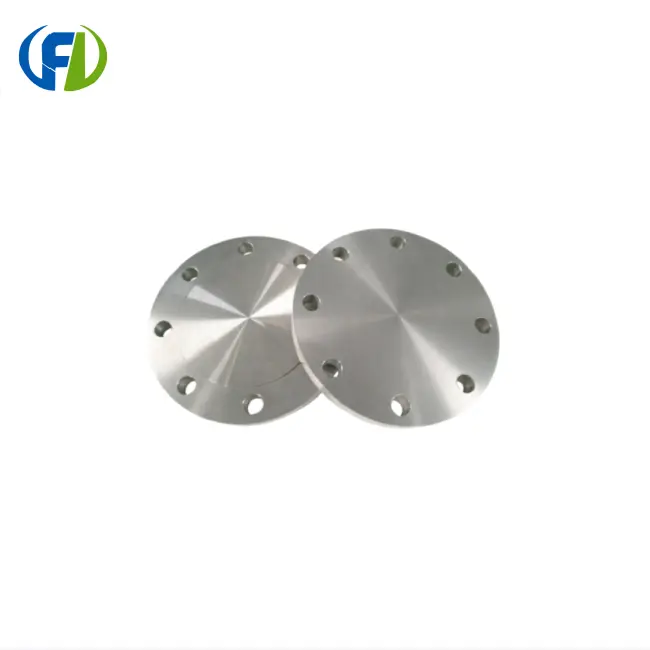

Titanium Blind Flange Picture display

ade	Main Chemical Constituent %											impurity content ≤%
	Ti	Al	V	Mo	Ni	Pd	Fe	C	N	H	O	residual elements
	Ti	Al	V	Mo	Ni	Pd	Fe	C	N	H	O	single	total
Gr1	Remainder	—	—	—	—	—	0.20	0.08	0.03	0.01	0.18	0.10	0.40
Gr2	Remainder	—	—	—	—	—	0.30	0.08	0.03	0.01	0.25	0.10	0.40
Gr3	Remainder	—	—	—	—	—	0.30	0.08	0.05	0.01	0.35	0.10	0.40
Gr4	Remainder	—	—	—	—	—	0.50	0.08	0.05	0.01	0.40	0.10	0.40
Gr5	Remainder	5.5~6.75	3.5~4.5	—	—	—	0.40	0.08	0.05	0.01	0.20	0.10	0.40
Gr7	Remainder	—	—	—	—	0.12~0.25	0.30	0.08	0.03	0.01	0.25	0.10	0.40
Gr9	Remainder	2.5~3.5	2.0~3.0	—	—	—	0.25	0.08	0.03	0.01	0.15	0.10	0.40
Gr12	Remainder	—	—	0.2~0.4	0.6~0.9	—	0.30	0.08	0.03	0.01	0.25	0.10	0.40
a.The residual elements include Al,V,Sn,Mo,Cr,Mn,Zr,Ni,Cu,Si,Y,Nb,Hf,Bi,Ru,Pd,Co,Ta,B,W(exclusive of the elements required in certain grade)

Product advantages:

1. Lightweight and high-strength: Due to the characteristics of titanium metal itself, titanium blind flanges are light in weight and high in strength, so that they can be used in high temperature and high pressure environments, and have strong bearing capacity.
2. Corrosion resistance: Titanium metal has excellent corrosion resistance, and can operate stably for a long time in corrosive environments such as acid and alkali.
3. High temperature resistance: Titanium metal has better high temperature performance and can withstand high temperature use.
4. Good sealing performance: The sealing structure adopted by the titanium blind flange can maintain high sealing performance during use and avoid problems such as leakage.
5. Simple installation: Like ordinary flanges, the installation and maintenance of titanium blind flanges are relatively simple, reducing maintenance costs and time costs for users.

In short, as a new type of industrial connection, titanium blind flange has a wide range of application requirements in various industrial equipment. Its advantages lie in light weight, high strength, corrosion resistance, high temperature resistance, etc., which can reduce the burden of production in all walks of life, improve work efficiency and reduce use costs.

FAQ

1. Do you have a dedicated R&D team? Can you design a product for us?

We have a dedicated technical team responsible for research and development. But most of the titanium fittings are standard, we can follow ASTM or other ways you require.

2. Can you provide samples? Is there a fee?

Samples can be provided for a fee.

3. What is your payment method?

We can accept T/T, L/C, Trade Assurance order from alibaba.com. Samples are 100% prepaid. 100% prepayment for mass production orders below $1,000, 30% prepayment for more than $1,000, and 70% cash on delivery.

4. How long is your delivery time?

Stock samples: within 3 working days, bulk order products: 7-15 days under normal conditions.

Our Packaging

Package

About us

Baoji Freelong New Material Technology Development Co., Ltd loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.

Our Factory
