Gr7 Ti-0.2pd Titanium Sheet

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: Gr7 TA9
Standard: ASTM B551,ASTM B352
Thickness: 0.5mm 1mm 2mm 3mm 4mm Or As Per Customer's Request
Processing technology: cold rolling/hot rolling
Advantages: high strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

Overview of Gr7 Ti-0.2pd titanium plate

The minimum composition of Gr7 Ti-0.2pd titanium plate titanium is 99.6%, the color is metallic color, and the surface is polished. Because titanium has high melting point, high performance, small specific gravity, high specific strength, good toughness, fatigue resistance, acid and alkali corrosion resistance, It has the characteristics of low thermal conductivity, good high and low temperature tolerance, and low stress under rapid cooling and rapid heating conditions. It is used in high-tech fields such as aviation and aerospace, and has been continuously promoted to chemical, petroleum, electric power, seawater desalination, construction, daily necessities and other industries. The shape of plane and rectangle can also be cut according to customer requirements.

Gr7 Ti-0.2pd titanium plate production process

Gr7 Ti-0.2pd titanium plate process is hot forging - hot rolling - annealing and straightening - turning (polishing) - polishing - flat head - inspection - packaging.

Technical requirements

A. The chemical composition of titanium and titanium alloy bars shall comply with the provisions of GB/T 3620.1, and when repeated tests are required, the allowable deviation of the chemical composition shall comply with the provisions of GB/T 3620.2. TA10 (Ti-0.3Mo-0.8Ni)

B. The diameter or side length of the hot-worked bar and its allowable deviation should comply with the corresponding regulations.

C. After hot processing, the bar is turned (ground) and cold-rolled, and the allowable deviation of the diameter of the cold-drawn bar should meet the industry regulations.

D. The out-of-roundness of the bar that has been turned (ground) after hot processing should not be greater than half of its dimensional tolerance.

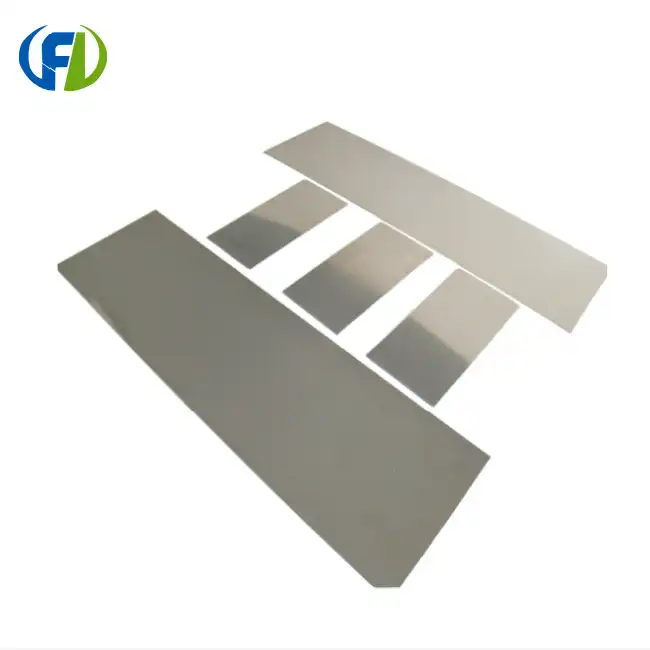

Gr7 Ti-0.2pd Titanium Sheet Picture display

	Cold Rolling	Hot Rolling
Thickness	0.3mm-4.0mm	4.1mm-60mm
Width	≤1000mm	≤1000mm
Length	≤2000mm	≤2000mm

Gr7 Ti-0.2pd Titanium Sheet Chemical Requirements

	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr 7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal

Gr7 Ti-0.2pd Titanium Sheet Mechanical Properties

Grade	Mechanical Properties (>%)
	Tensile Strengh (min)		Yield Strengh (0.2% offset)				Elongation (min %)
	Ksi	Mpa	Min		Max
			Ksi	Mpa	Ksi	Mpa
Gr7	50	345	40	275	65	450	20

FAQ

A. Are you a factory or a trading company?

Our factory has 10 years of production experience.

B. Can you provide samples? MOQ?

Yes, we can provide you with free samples. MOQ: 5kg.

C. Do you accept customization?

Yes, we can process according to your unit weight or drawing.

D. Do you check the finished product?

Yes, every product will be checked by our QC before shipment.

E. How much is the shipping fee?

Mainly depends on weight, volume, package size and destination port.

F. What is your delivery time?

In stock, 7-15 days, if not, according to your quantity.

Our Packaging

Package
