Product Description

The tube plate for heat exchanger has the following unique features in its design

(1) Energy saving: The heat transfer coefficient is 3000-4500 kcal/m², and the heat exchanger efficiency of the shell is 3.5 times higher.

(2) Compact and compact: Plate heat exchanger plates are precisely arranged. Compared with other types of heat exchangers, what are the characteristics of the plate titanium frame? The heat exchanger has less floor space, small space, and the same heat transfer area. The heat exchanger is only 1/5 of the shell-and-tube heat exchanger.

(3) Easy to clean and easy to disassemble: the plate heat exchanger is clamped by the clamping splint, and it is convenient to disassemble, open and clean at any time, and because the plate is smooth, the turbulence is deep, and the scale is easy.

(4) Without a row of liquid, the plate heat exchanger seal groove is equipped with a discharge channel, and various media will not collude. Even if it leaks, the media will always come out.

(5) Long service life: The plate heat exchanger is made of stainless steel or titanium plate, which can withstand various corrosive media, the gasket can be exchanged, and it can be easily disassembled and repaired.

(6) Strong adaptability: The plate heat exchanger plate is a self-supporting component, and the process can be increased or reduced according to the requirements, and the situation is diverse; it is suitable for various process requirements.

Standard: ASTM B265, ASME SB265,ASTM F136/67, AMS 4911,AMS 4905, AMS 4907, MIL-T-9046.

Size(mm)：

Cold Rolled (thickness:0.5~4.0mm Width:30~2500mm Length: ≤6000mm)

Hot Rolled (thickness:4.1~100.0mm Width:30~3000mm Length: ≤10000mm)

Processing technique: Cold rolled/Hot rolled

Picture display

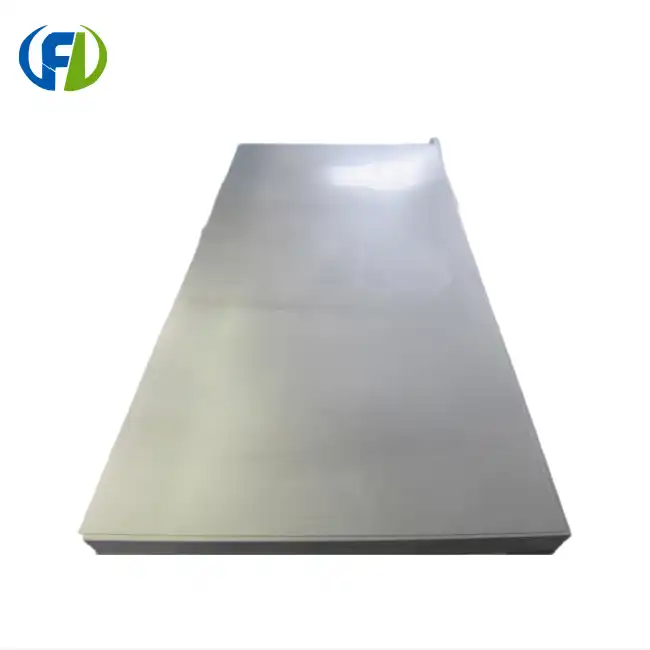

Customized Titanium Tube Plate for Heat Exchange

Titanium Tube Plate for Heat Exchange Chemical Requirements

Material	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr 1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr 2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr 5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr 7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal

Titanium Tube Plate for Heat Exchange Mechanical Properties

Grade	Mechanical Properties (>%)
	Tensile Strengh (min)		Yield Strengh (0.2% offset)				Elongation (min %)
	Ksi	Mpa	Min		Max
			Ksi	Mpa	Ksi	Mpa
Gr1	35	240	20	170	45	310	240
Gr2	50	345	40	275	65	450	20
Gr3	65	450	55	380	80	550	18
Gr4	80	550	70	483	95	650	15
Gr5	130	895	120	828	-	-	10c
Gr7	50	345	40	275	65	450	20

The basic structure of the titanium plate heat exchanger

The titanium plate heat exchanger is mainly composed of a frame and a titanium plate 2, mainly made of a variety of materials, and various different forms of production models are pressed into different shapes (15260, -775.00 , -4.83%) .

The gasket is used to seal the frame around the media flow plate and the corners through the fixed compression plate, the pressure plate, the upper and lower guide rods and the clamping bolts constitute the movable plate heat exchanger is a fixed pressure plate superimposed in the plate, the middle pressure plate. Then use clamping bolts to clamp the MSF unit with the largest production volume, focusing on 36,000 tons per day.

FAQ

Q: What is the advantage of your company?

A: We have many professional technicians. We have more competitive price and better after-sales service than other companies.

Q：Can you provide samples? MOQ?

A：Yes, we can provide you with free samples. MOQ: 10kg.

Q：Do you accept customization?

A：Yes, we can process according to your unit weight or drawing.

Q：Do you inspect the finished products?

A：Yes, every product will be inspected by our QC before shipment.
