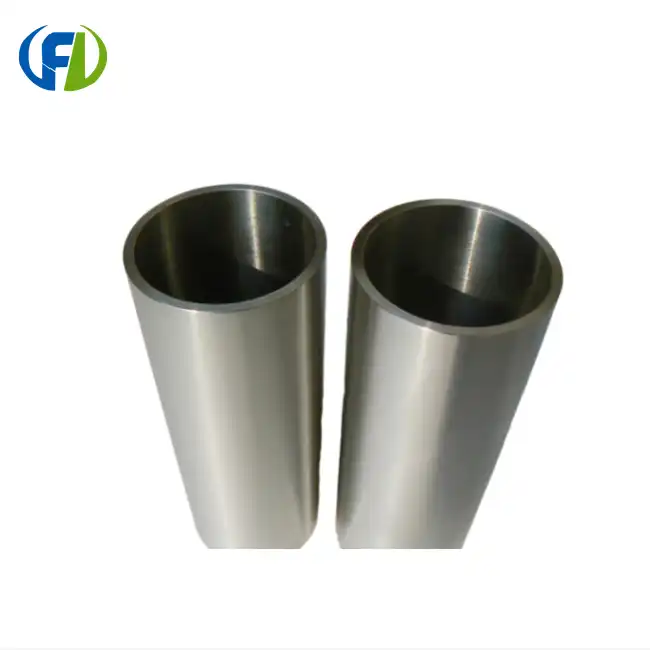

GR1 Titanium Alloy Tube

GR1 titanium alloy tube

GR1 titanium alloy has excellent stamping performance. The welding form is diverse, the welding performance is good, and the intensity of the welding joint can reach 90%of the foundation metal. Easy saw and sand wheel cutting, good processing performance. It has excellent corrosion resistance to parts below 350 ° C. It is small and small, which can be stamped into parts of various complex shapes. Such as the coagulator of the thermal power plant; the pipeline system, valve and pump corroded by the marine seawater; the chemical heat exchanger, the pump body, the distillation tower; the seawater desalination system, the platinum plating anode; the aircraft skeleton, skin, engine parts, beams, etc.

1. Low density and high intensity

2. Excellent corrosion resistance

3. Good heat resistance

4. Excellent low temperature resistance

5. Magnetic and non -toxic

6. Good thermal performance

7. Low elastic modulus

GR1 titanium alloy is a kind of industrial pure titanium, also known as pure titanium Grade 1. It is one of the purest commercially available titanium alloys with the fewest impurities. GR1 alloy is mainly composed of pure titanium elements, and its chemical composition meets the requirements of ASTM standards.

The following is the main chemical composition range (by weight) of GR1 titanium alloy:

Titanium (Titanium): minimum content of 99.5%

Iron (Iron): maximum content 0.20%

Oxygen: maximum content 0.18%

Carbon (Carbon): maximum content 0.08%

Nitrogen: maximum content 0.03%

Total Impurities (Total Impurities): maximum content 0.40%
