Gr2 Titanium Round Seamless Pipe

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: GR2, TA2
Standard: ASTM B862 / ASTM B861 / ASTM B338
Advantages: High strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

Product Information

Product Name: Gr2 Titanium Round Seamless Pipe

Standards: ASTM B861, ASTM B338, ASME SB861, ASME SB338

Material: pure titanium/titanium alloy

Color: metallic gray; color can be customized according to material

Grade: Gr1, Gr2, Gr5, Gr7, Gr9, Gr10, Gr12

Features: Excellent corrosion/light resistance

Technology: Seamless

Applications: Gr2 Titanium Round Seamless Pipe can be used in Industrial, Heat Exchange, Condenser, Medical, Chemical, Aerospace, Petroleum, Sports, Bicycle, etc.

Tolerance: outer diameter (±0.1-0.2) mm, wall thickness (±10%) length (±10) mm

Outer diameter: Φ7-158mm

Inner diameter: ≥6mm

Length: ≤18000mm

Chamber wall thickness: 0.5mm-15mm

Surface: Pickled, Polished

Packing: glulam case, carton

Shape: round/square/rectangular

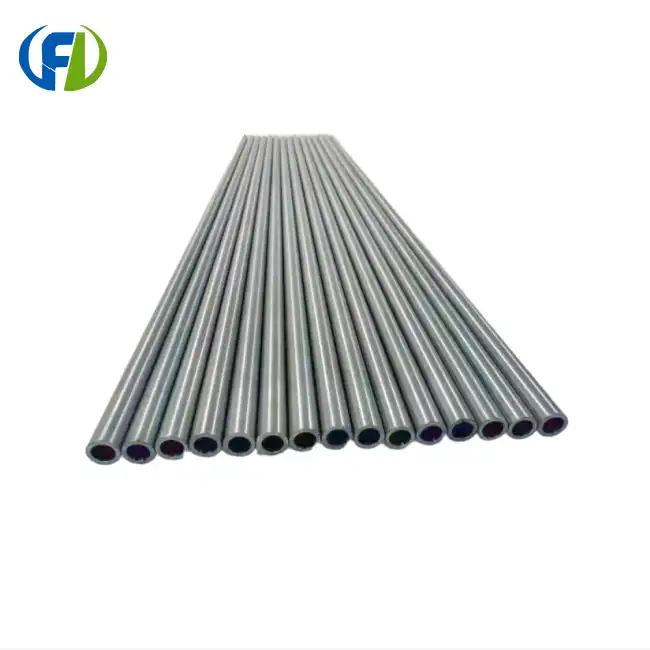

Gr2 Titanium Round Seamless Pipe picture display

Customized Gr2 Titanium Round Seamless Pipe

Gr2 Titanium Round Seamless Pipe Feature

1. Low Density and High Strength.

2. Excellent Corrosion Resistance.

3. Good resistance to the effect of heat.

4. Excellent Bearing to cryogenic properties.

5. Nonmagnetic and Non-toxic.

6. Good thermal properties.

7. Low Modulus of Elasticity.

Chemical Composition

Grade	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/	bal
Gr3	0.05	0.08	0.015	0.3	0.35	/	/	/	/	/	bal
Gr4	0.05	0.08	0.015	0.5	0.4	/	/	/	/	/
Gr5	0.05	0.08	0.015	0.4	0.2	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.3	0.25	/	/	0.12~0.25	/	/	bal
Gr9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	bal
Gr12	0.03	0.08	0.015	0.3	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile Requirements

Grade	Tensile strength(min)		Yield Strength(min)		Elongation(%)
Grade	KSI	MPa	KSI	MPa	Elongation(%)
Gr1	35	240	20	138	24
Gr2	50	345	40	275	20
Gr3	65	450	55	380	18
Gr4	80	550	70	483	15
Gr5	130	895	120	828	10
