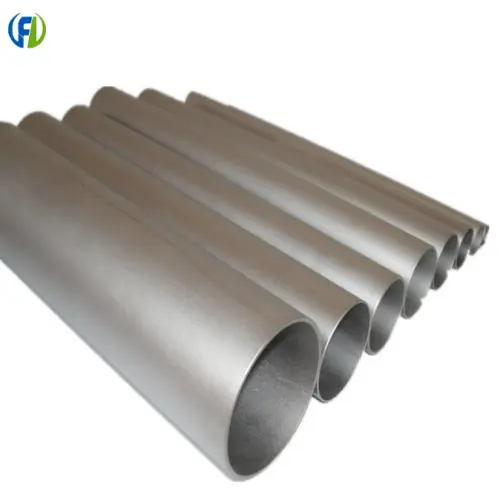

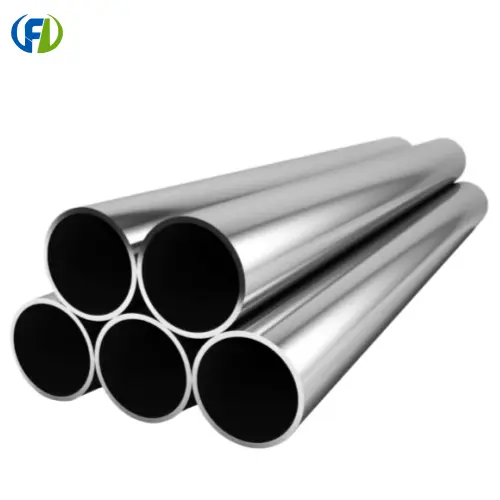

TA10 titanium alloy tube

TA10 titanium alloy pipe (Ti-0.3Mo-0.8Ni, corresponding to US standard Grade 12) is a near-alpha type corrosion-resistant titanium alloy pipe specifically designed for highly corrosive environments. It is based on industrial pure titanium (TA2) with trace amounts of molybdenum and nickel, significantly improving its resistance to crevice corrosion and reducing acids, while maintaining good strength, weldability, and cold workability. It is a highly cost-effective pipe choice for the chemical, marine, and nuclear power industries.

I. Product Introduction

1. Basic Information
Grade Conversion: GB TA10 = ASTM Grade 12 (GR.12)
Alloy Type: Near-α type corrosion-resistant titanium alloy (non-pure titanium)
Nominal Composition: Ti - 0.3Mo - 0.8Ni (titanium-based, containing approximately 0.3% molybdenum and 0.8% nickel)
Standards:
Seamless Pipe: GB/T 3625 (heat exchangers), GB/T 3624 (general)
Welded Pipe: ASTM B338 / ASME SB338
Supply Condition: Annealed (M)
Density: Approximately 4.50 g/cm³ (approximately 40% lighter than steel)

2. Core Properties (Annealed)
Mechanical Properties (GB/T 3625-2023)
Tensile Strength: ≥ 620 MPa
Yield Strength: ≥ 480 MPa
Elongation: ≥ 12%
Hardness: HB 180~215 Corrosion Resistance (Core Advantages)

Resistant to Reducing Acids: Corrosion resistance in dilute sulfuric acid and hydrochloric acid is far superior to TA2 pure titanium.

Room Temperature ≤10% H₂SO₄: Corrosion rate < 0.1 mm/year
Room Temperature ≤5% HCl: Corrosion rate < 0.1 mm/year

Resistant to Crevice Corrosion: Critical crevice corrosion temperature is 30~50℃ higher than TA2, suitable for flanges, gaskets, heat exchanger tube bundles, and other easily crevice-prone structures.

Resistant to Chlorides: No pitting corrosion occurs in seawater, salt spray, or process water containing Cl⁻.

Resistant to High and Low Temperatures: Long-term operating temperature -196℃ ~ 315℃.

Processing Characteristics

Excellent weldability: Can be welded using TIG and plasma welding; weld strength ≥ 90% of base material
Good cold workability: Can be cold-bent, flared, and edged without preheating

II. Typical Application Areas

1. Chemical and Petrochemical Industries (Main Application)
Heat Exchanger Tubes: Condensers and reboilers for sulfuric acid, hydrochloric acid, phosphoric acid, and organic acid media
Process Piping: Transporting corrosive fluids containing chloride ions and hydrogen sulfide
Hydrometallurgy: Piping for copper, nickel, and zinc extraction/leaching equipment
Pharmaceuticals/Food: High-purity, acid and alkali resistant material transport pipes (FDA compliant)

2. Marine Engineering and Shipbuilding
Seawater Desalination: Heat transfer tubes for multi-stage flash evaporation (MSF) and low-temperature multi-effect distillation (MED) units
Ship Piping: Seawater cooling systems, fire hoses, ballast water hoses
Offshore Platforms: Brine injection, wastewater treatment, corrosion-resistant pipelines for oil and gas extraction

3. Energy and Environmental Protection
Nuclear Power: Seawater/ Freshwater cooling systems, radioactive waste treatment pipelines
Thermal power: Flue gas desulfurization (FGD) units, resistant to SO₂, H₂SO₄ mist corrosion
Environmental protection: Waste incineration flue gas treatment, acidic wastewater discharge pipelines
4. Other industries
Aerospace: Cryogenic hydraulic, fuel, and pneumatic system pipelines
Medical: Surgical instruments, implant components (good biocompatibility)
Automotive: High-performance exhaust systems, fuel cell components

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!

Contact Us

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
